BB13
Board
and Batten

Generic Construction

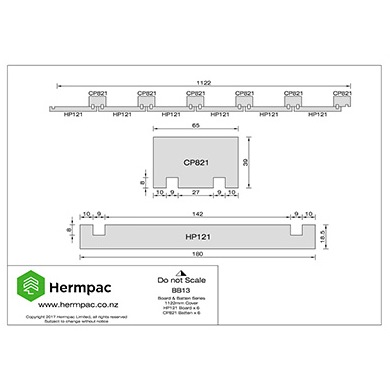

BB13 Series

1BB13 Series

Profile Drawings

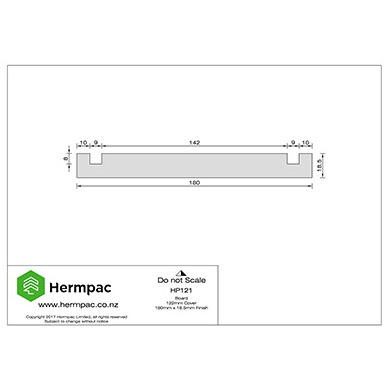

HP121

2HP121

180mm x 18.5mm

Board Profile


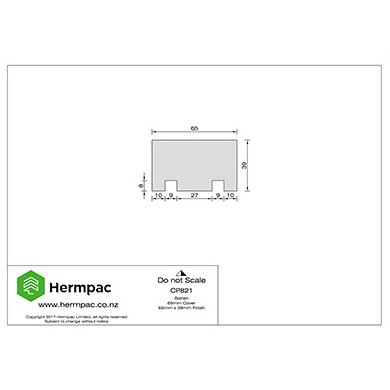

CP821

3CP821

65mm x 39mm

Batten Profile


MasterSpec - Vertical Shiplap

4MasterSpec - Vertical Shiplap

CLICK HERE for Masterspec Document


HA-BBAT-000-001

5HA-BBAT-000-001

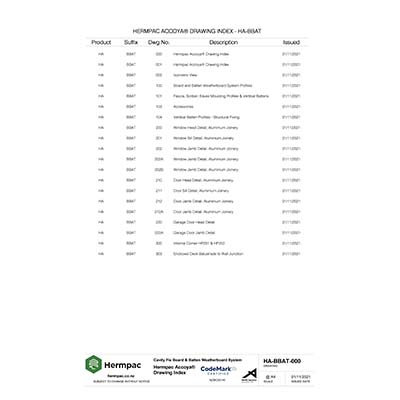

Drawing Index


HA-BBAT-002

6HA-BBAT-002

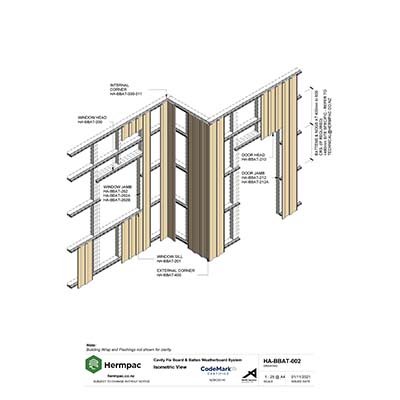

Isometric View


HA-BBAT-100

7HA-BBAT-100

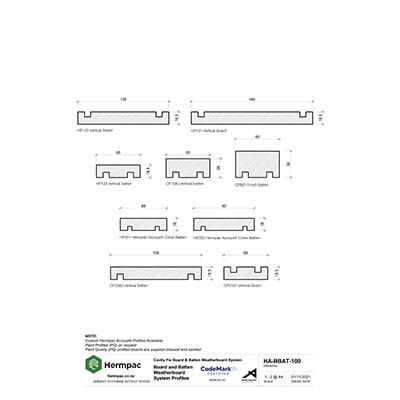

Board and Batten Weatherboard System Profiles


HA-BBAT-101

8HA-BBAT-101

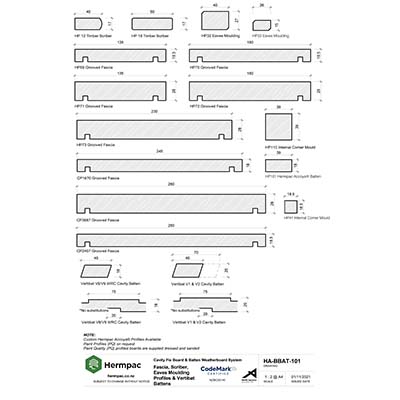

Fascia, Scriber, Eaves Moulding Profiles & Vertibat Battens


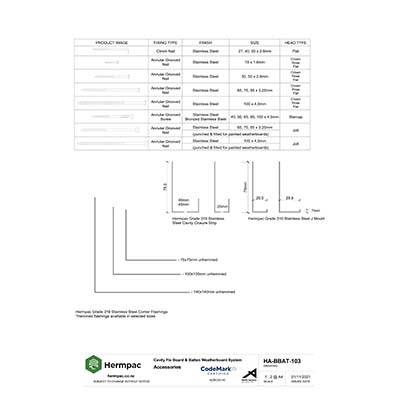

HA-BBAT-103

9HA-BBAT-103

Accessories


HA-BBAT-104

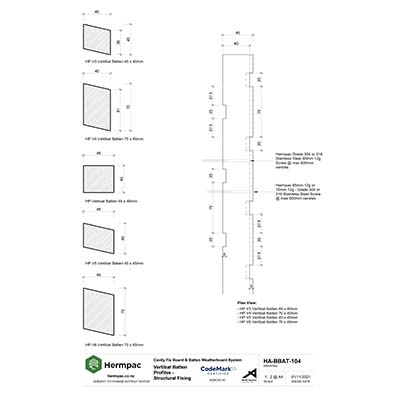

10HA-BBAT-104

Vertibat Batten Profiles, Structural Fixing

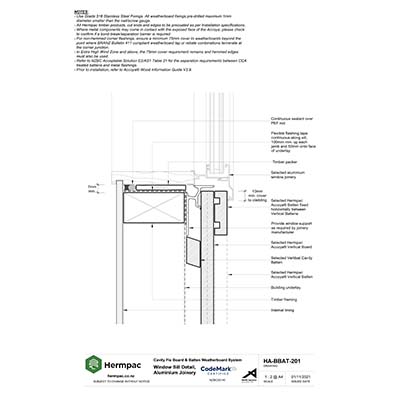

HA-BBAT-201

11HA-BBAT-201

Window Sill Detail, Aluminium Joinery

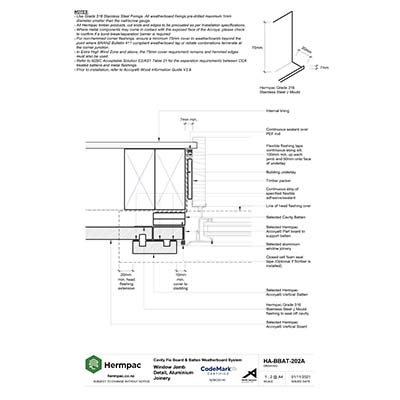

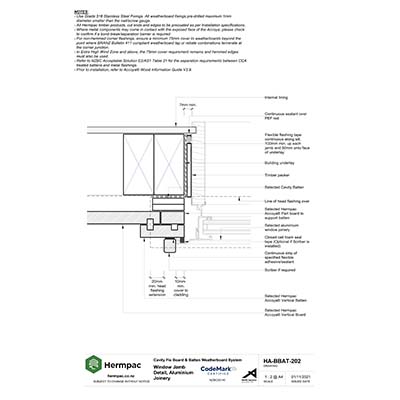

HA-BBAT-202

12HA-BBAT-202

Window Jamb Detail, Aluminium Joinery


HA-BBAT-202A

13HA-BBAT-202A

Window Jamb Detail, Aluminium Joinery


HA-BBAT-202B

14HA-BBAT-202B

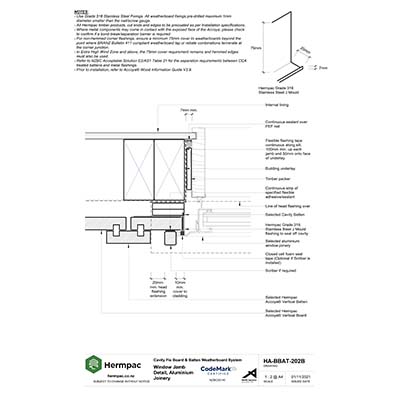

Window Jamb Detail, Aluminium Joinery

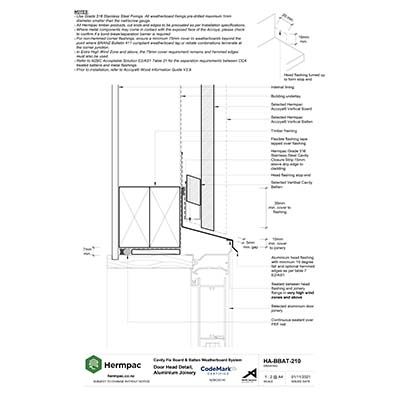

HA-BBAT-210

15HA-BBAT-210

Door Head Detail, Aluminium Joinery


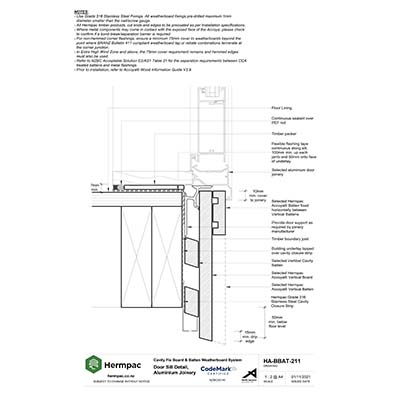

HA-BBAT-211

16HA-BBAT-211

Door Sill Detail, Aluminium Joinery

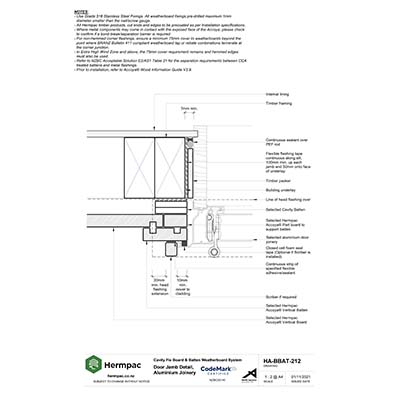

HA-BBAT-212

17HA-BBAT-212

Door Jamb Detail, Aluminium Joinery

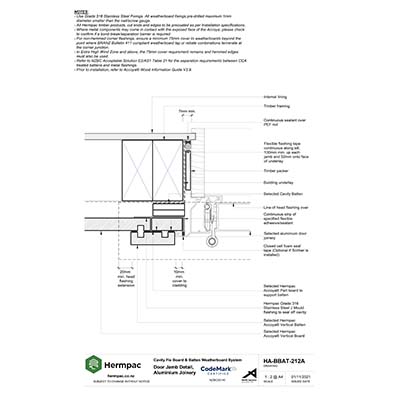

HA-BBAT-212A

18HA-BBAT-212A

Door Jamb Detail, Aluminium Joinery


HA-BBAT-220

19HA-BBAT-220

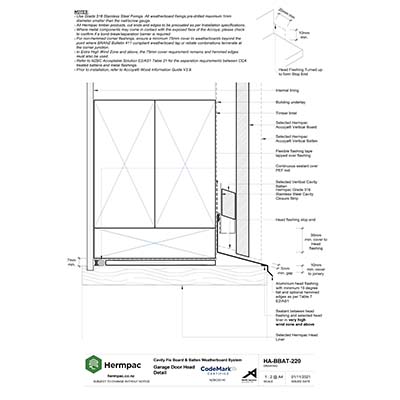

Garage Door Head Detail


HA-BBAT-222A

20HA-BBAT-222A

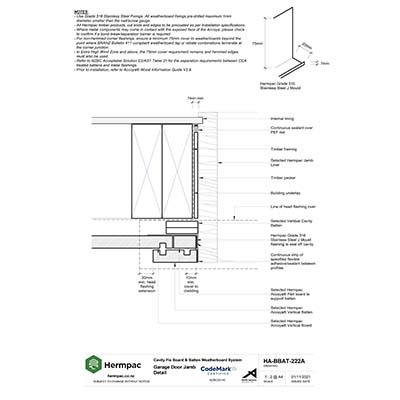

Garage Door Jamb Detail


HA-BBAT-300

21HA-BBAT-300

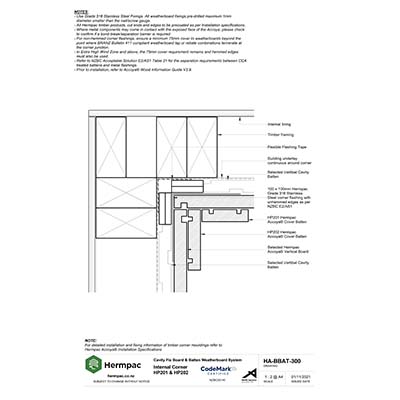

Internal Coner HP201 & HP202

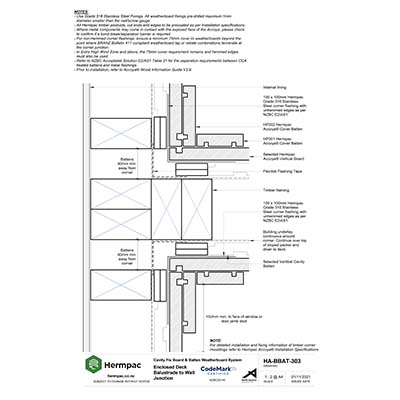

HA-BBAT-303

22HA-BBAT-303

Enclosed Deck Balustrade to Wall Junction

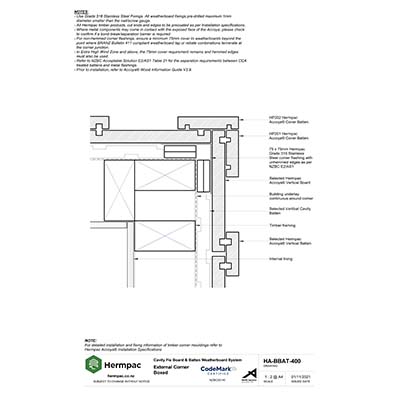

HA-BBAT-400

23HA-BBAT-400

External Corner Boxed


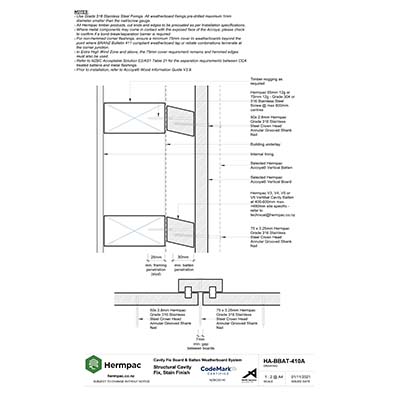

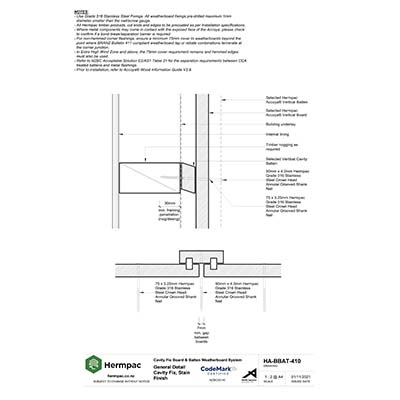

HA-BBAT-410

24HA-BBAT-410

General Detail Cavity Fix, Stain Finish


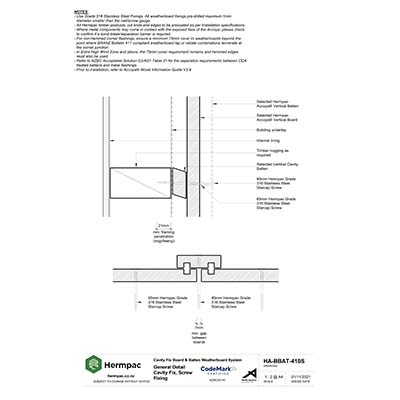

HA-BBAT-410S

25HA-BBAT-410S

General Detail Cavity Fix, Screw Fixing


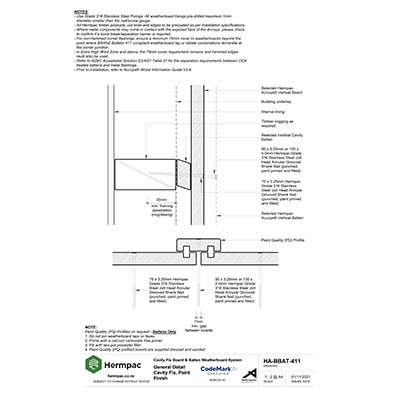

HA-BBAT-411

26HA-BBAT-411

General Detail Cavity Fix, Paint Finish


HA-BBAT-411A

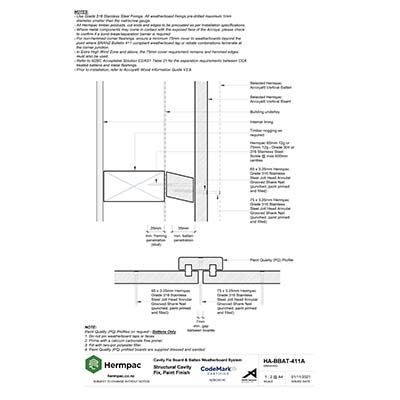

27HA-BBAT-411A

Structural Cavity Fix, Paint Finish


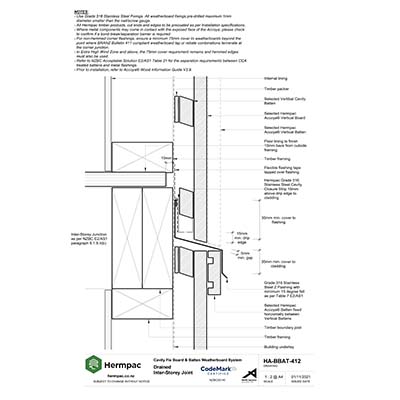

HA-BBAT-412

28HA-BBAT-412

Drained Inter-Storey Joint


HA-BBAT-413

29HA-BBAT-413

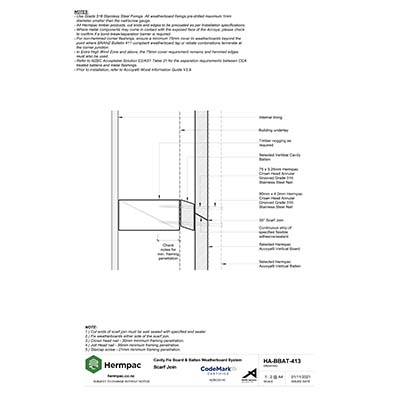

Scarf Join

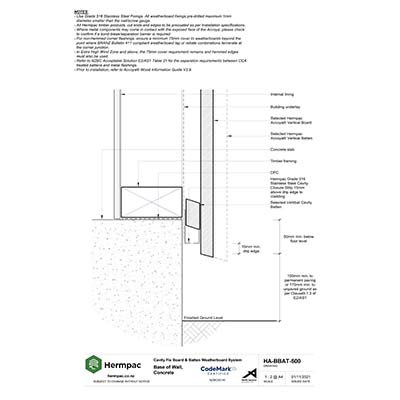

HA-BBAT-500

30HA-BBAT-500

Base of Wall, Concrete


HA-BBAT-501

31HA-BBAT-501

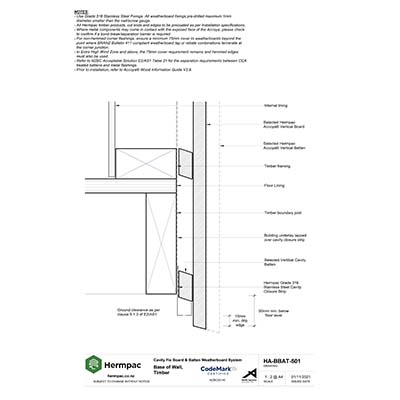

Base of Wall, Timber

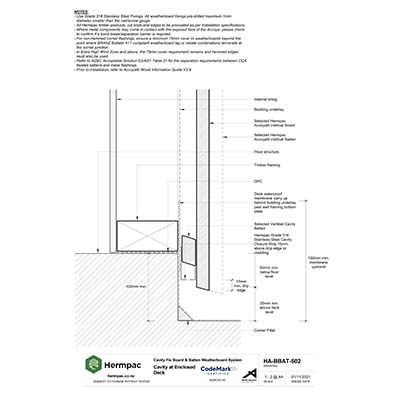

HA-BBAT-502

32HA-BBAT-502

Cavity at Enclosed Deck


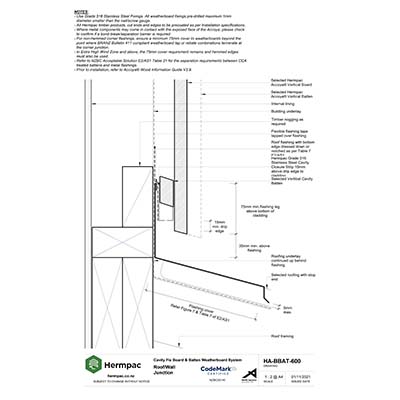

HA-BBAT-600

33HA-BBAT-600

Roof-Wall Junction


HA-BBAT-601

34HA-BBAT-601

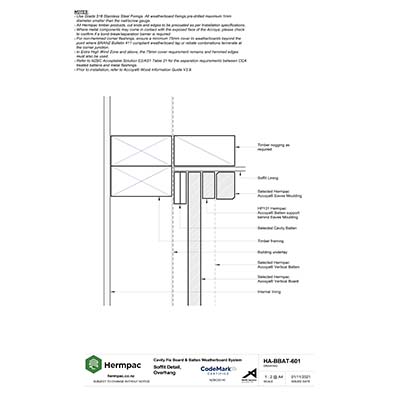

Soffit Detail, Overhang


HA-BBAT-601A

35HA-BBAT-601A

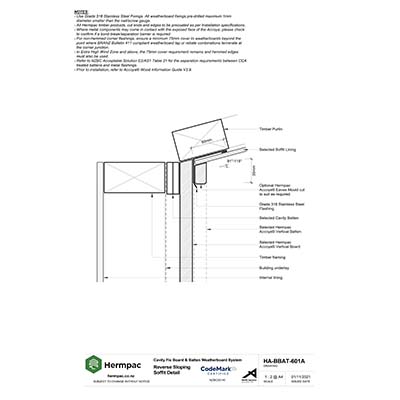

Reverse Sloping Soffit Detail

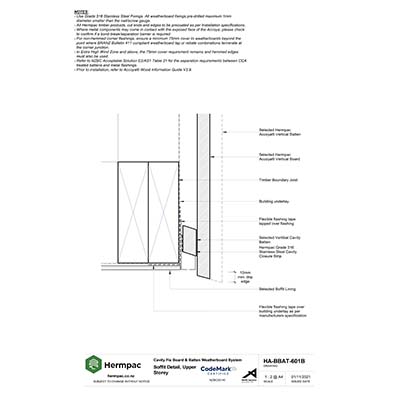

HA-BBAT-601B

36HA-BBAT-601B

Soffit Detail, Upper Storey


HA-BBAT-602

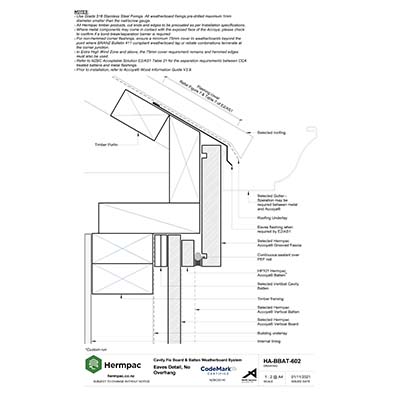

37HA-BBAT-602

Eaves Detail, No Overhang

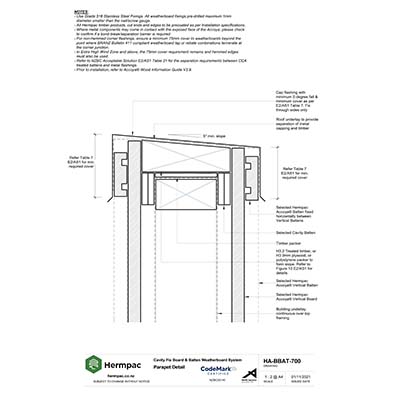

HA-BBAT-700

38HA-BBAT-700

Parapet Detail


HA-BBAT-800

39HA-BBAT-800

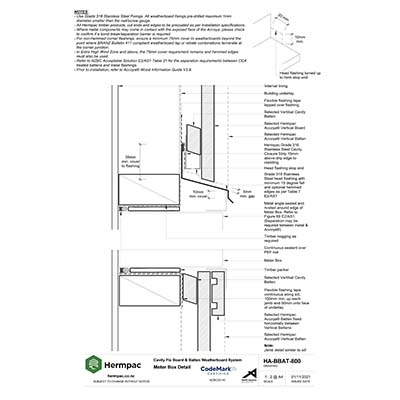

Meter Box Detail


HA-BBAT-801

40HA-BBAT-801

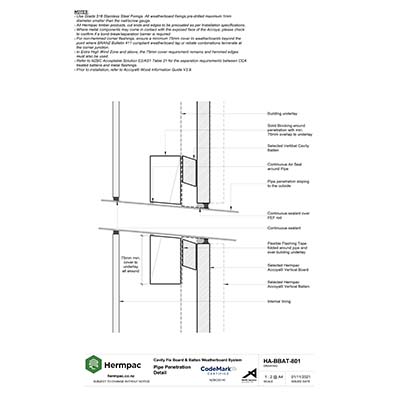

Pipe Penetration Detail

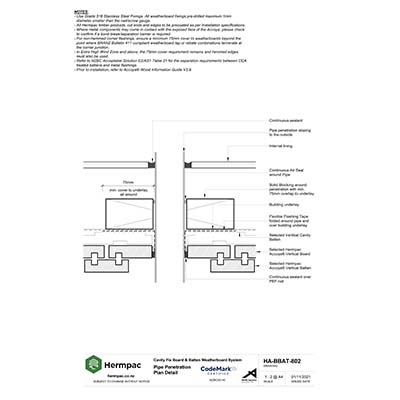

HA-BBAT-802

41HA-BBAT-802

Pipe Penetration Plan Detail
