CP4265
Vertical
Shiplap

Species Options

Generic Construction

CP4265

1CP4265

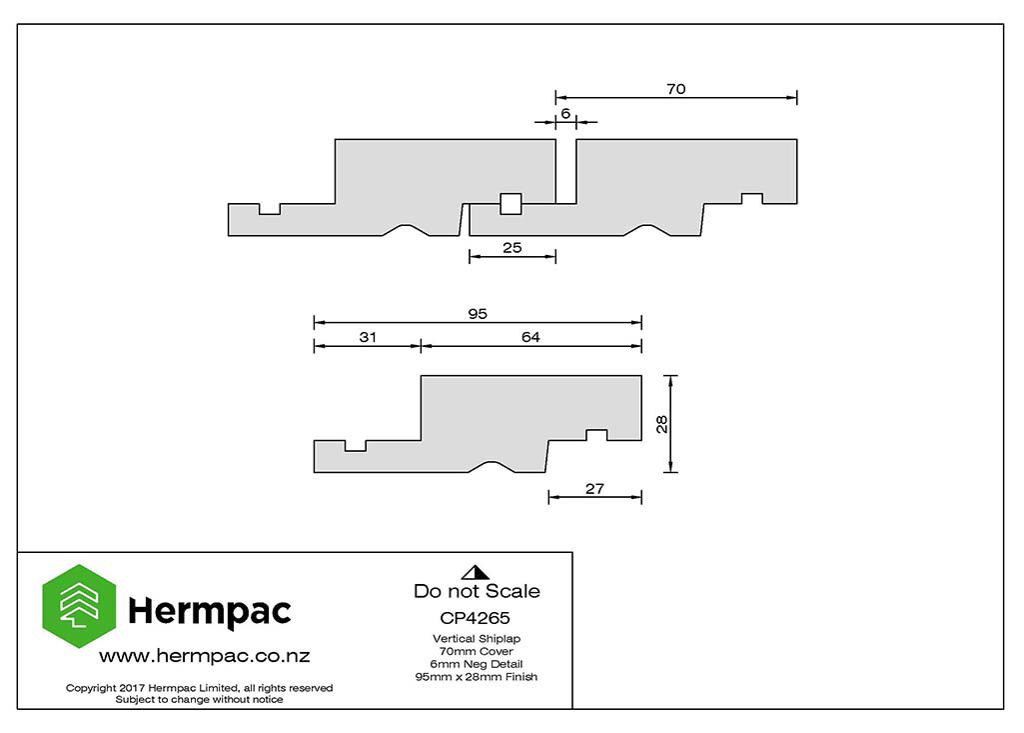

Profile Drawing


BRANZ Appraisal 1181

2BRANZ Appraisal 1181

BRANZ Appraisal 1181


CODEMARK CMNZ30138

3CODEMARK CMNZ30138

CODEMARK CMNZ30138


MasterSpec - Vertical Shiplap

4MasterSpec - Vertical Shiplap

CLICK HERE for Masterspec Document


Installation Specification - ACCOYA Vertical Shiplap Cavity Fixed

5Installation Specification - ACCOYA Vertical Shiplap Cavity Fixed

HA-SHIP-000-001

6HA-SHIP-000-001

Drawing Index


HA-SHIP-002

7HA-SHIP-002

Isometric View


HA-SHIP-100

8HA-SHIP-100

Vertical Shiplap Weatherboard System Profiles


HA-SHIP-101

9HA-SHIP-101

Fascia, Scriber, Eaves and Vertibat Battens


HA-SHIP-102

10HA-SHIP-102

Weatherboard Moulding Profiles


HA-SHIP-103

11HA-SHIP-103

Accessories


HA-SHIP-200

12HA-SHIP-200

Window Head Detail, Aluminum Joinery


HA-SHIP-201

13HA-SHIP-201

Window Sill Detail, Aluminium Joinery


HA-SHIP-202

14HA-SHIP-202

Window Jamb Detail, Aluminium Joinery


HA-SHIP-202A

15HA-SHIP-202A

Window Jamb Detail, Aluminium Joinery


HA-SHIP-210

16HA-SHIP-210

Door Head Detail Aluminium Joinery


HA-SHIP-211

17HA-SHIP-211

Door Sill Detail, Aluminium Joinery


HA-SHIP-212

18HA-SHIP-212

Door Jamb Detail, Aluminium Joinery


HA-SHIP-212A

19HA-SHIP-212A

Door Jamb Detail, Aluminium Joinery


HA-SHIP-220

20HA-SHIP-220

Garage Door Head Detail


HA-SHIP-222A

21HA-SHIP-222A

Garage Door Jamb Detail


HA-SHIP-300

22HA-SHIP-300

Internal Corner HP41


HA-SHIP-301

23HA-SHIP-301

Internal Corner Edge to Edge


HA-SHIP-303

24HA-SHIP-303

Enclosed Deck Balustrade to Wall Junction


HA-SHIP-307

25HA-SHIP-307

Internal Corner- HP41 & HP399


HA-SHIP-310

26HA-SHIP-310

Internal Corner - HP110


HA-SHIP-400

27HA-SHIP-400

External Corner Boxed


HA-SHIP-402

28HA-SHIP-402

External Corner HP42


HA-SHIP-403

29HA-SHIP-403

External Corner


HA-SHIP-407

30HA-SHIP-407

External Corner - HP42, HP339 - HP1803


HA-SHIP-409

31HA-SHIP-409

External Corner HP322A & HP322B


HA-SHIP-409A

32HA-SHIP-409A

External Corner - HP328A & HP328B


HA-SHIP-410

33HA-SHIP-410

General Detail Cavity Fix, Stain Finish


HA-SHIP-410S

34HA-SHIP-410S

General Detail Cavity Fix, Screw Fixing


HA-SHIP-411

35HA-SHIP-411

General Detail Cavity Fix, Paint Finish


HA-SHIP-412

36HA-SHIP-412

Drained Inter-Storey Joint


HA-SHIP-413

37HA-SHIP-413

Scarf Join


HA-SHIP-500

38HA-SHIP-500

Base of Wall, Concrete


HA-SHIP-501

39HA-SHIP-501

Base of Wall, Timber


HA-SHIP-502

40HA-SHIP-502

Cavity at Enclosed Deck


HA-SHIP-600

41HA-SHIP-600

Roof-Wall Junction


HA-SHIP-601

42HA-SHIP-601

Soffit Detail, Overhang


HA-SHIP-601A

43HA-SHIP-601A

Reverse Sloping Soffit Detail


HA-SHIP-601B

44HA-SHIP-601B

Soffit Detail, Upper Storey


HA-SHIP-602

45HA-SHIP-602

Eaves Detail, No Overhang


HA-SHIP-700

46HA-SHIP-700

Parapet Detail


HA-SHIP-800

47HA-SHIP-800

Meter Box Detail


HA-SHIP-801

48HA-SHIP-801

Pipe Penetration Detail


HA-SHIP-802

49HA-SHIP-802

Pipe Penetration Plan Detail
