CP4085
Vertical
Shiplap

Species Options

Generic Construction

CP4085

1CP4085

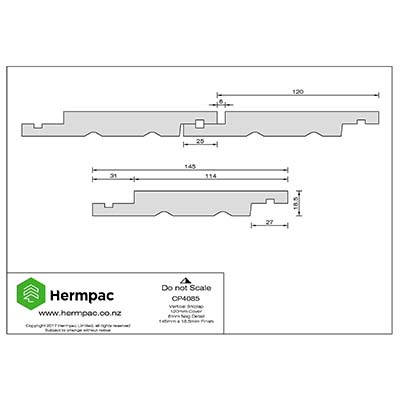

Profile Drawing


BRANZ Appraisal 1181

2BRANZ Appraisal 1181

BRANZ Appraisal 1181


CODEMARK CMNZ30138

3CODEMARK CMNZ30138

CODEMARK CMNZ30138


MasterSpec - Vertical Shiplap

4MasterSpec - Vertical Shiplap

CLICK HERE for Masterspec Document


Installation Specification - ACCOYA Vertical Shiplap Cavity Fixed

5Installation Specification - ACCOYA Vertical Shiplap Cavity Fixed


HA-SHIP40-000-001

6HA-SHIP40-000-001

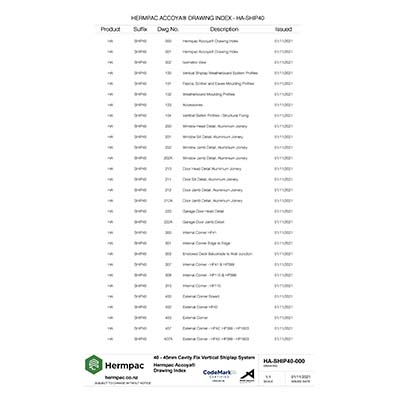

Drawing Index


HA-SHIP40-002

7HA-SHIP40-002

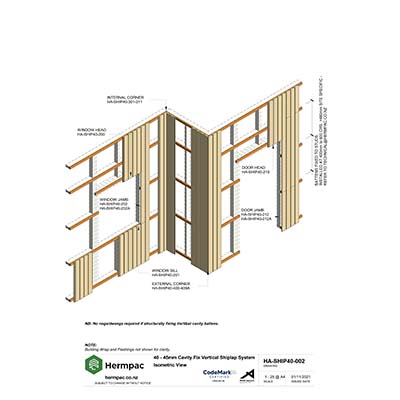

Isometric View


HA-SHIP40-100

8HA-SHIP40-100

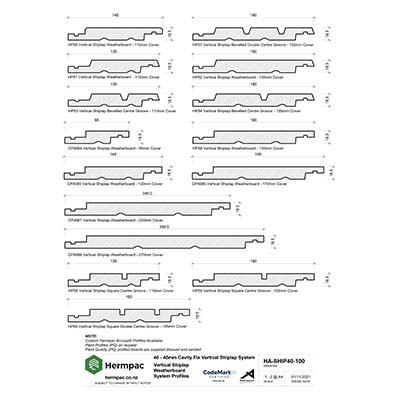

Vertical Shiplap Weatherboard System Profiles


HA-SHIP40-101

9HA-SHIP40-101

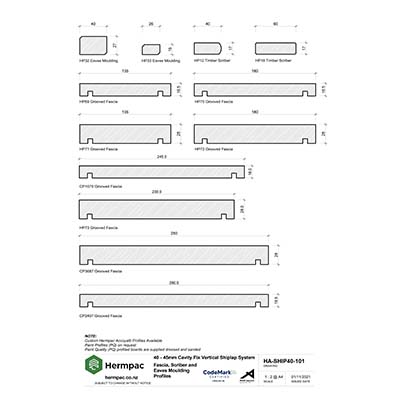

Fascia, Scriber and Eaves Moulding Profiles


HA-SHIP40-102

10HA-SHIP40-102

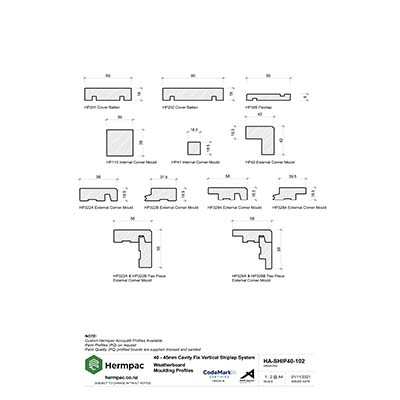

Weatherboard Moulding Profiles


HA-SHIP40-103

11HA-SHIP40-103

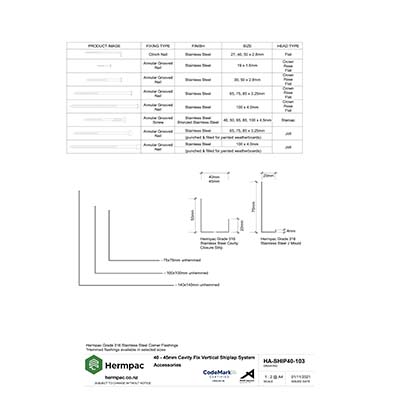

Accessories

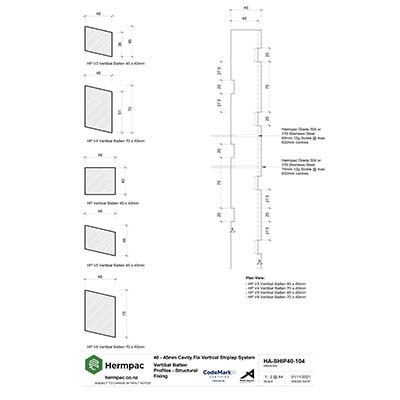

HA-SHIP40-104

12HA-SHIP40-104

Vertibat Batten Profiles


HA-SHIP40-200

13HA-SHIP40-200

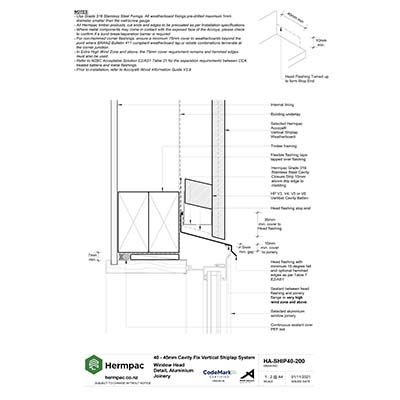

Window Head Detail, Aluminium Joinery


HA-SHIP40-201

14HA-SHIP40-201

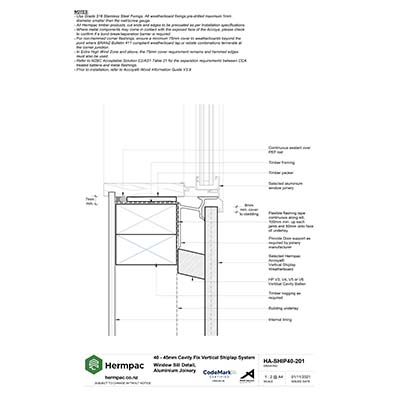

Window Sill Detail, Aluminium Joinery


HA-SHIP40-202

15HA-SHIP40-202

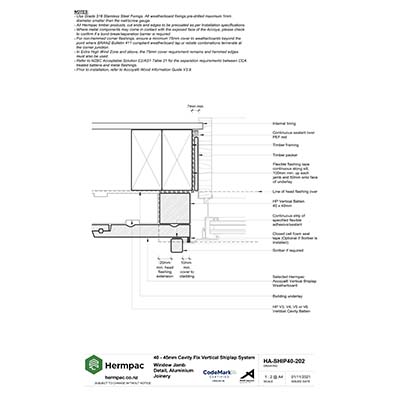

Window Jamb Detail, Aluminium Joinery


HA-SHIP40-202A

16HA-SHIP40-202A

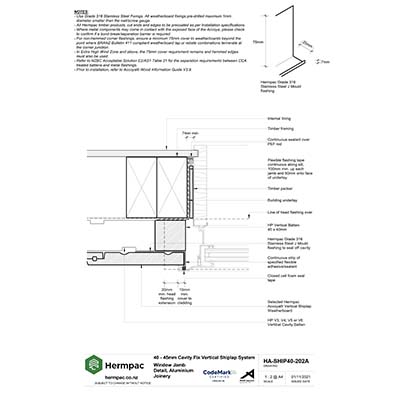

Window Jamb Detail, Aluminium Joinery

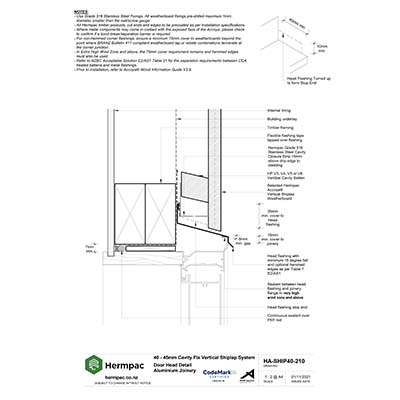

HA-SHIP40-210

17HA-SHIP40-210

Door Head Detail, Aluminium Joinery


HA-SHIP40-211

18HA-SHIP40-211

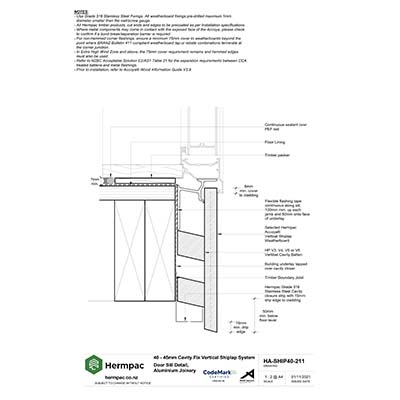

Door Sill Detail, Aluminium Joinery


HA-SHIP40-212

19HA-SHIP40-212

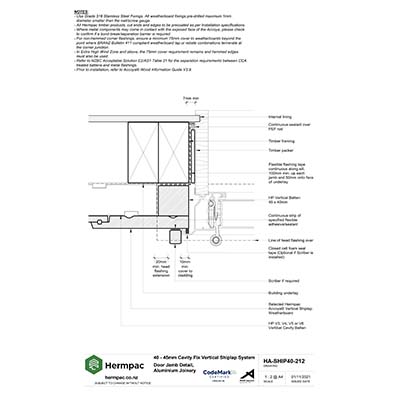

Door Jamb Detail, Aluminium Joinery

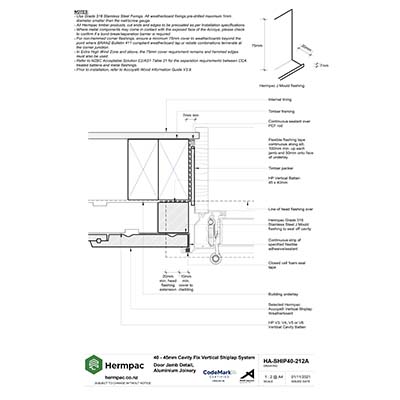

HA-SHIP40-212A

20HA-SHIP40-212A

Door Jamb Detail, Aluminium Joinery


HA-SHIP40-220

21HA-SHIP40-220

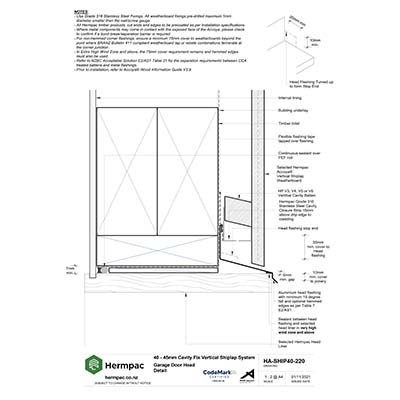

Garage Door Head Detail


HA-SHIP40-222A

22HA-SHIP40-222A

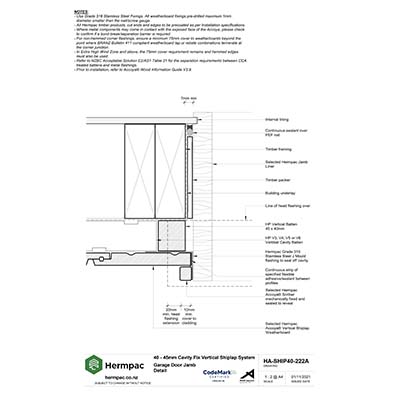

Garage Door Jamb Detail


HA-SHIP40-300

23HA-SHIP40-300

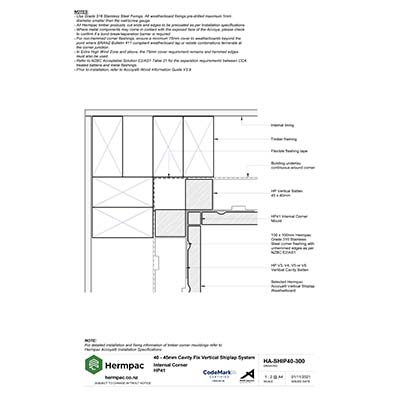

Internal Corner HP41


HA-SHIP40-301

24HA-SHIP40-301

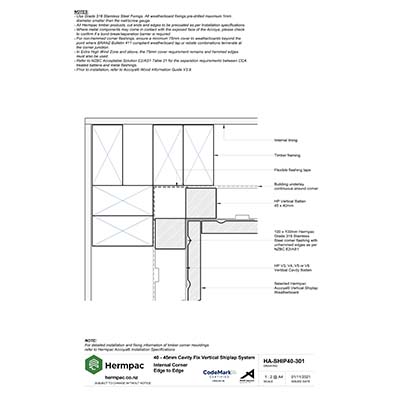

Internal Corner Edge to Edge


HA-SHIP40-303

25HA-SHIP40-303

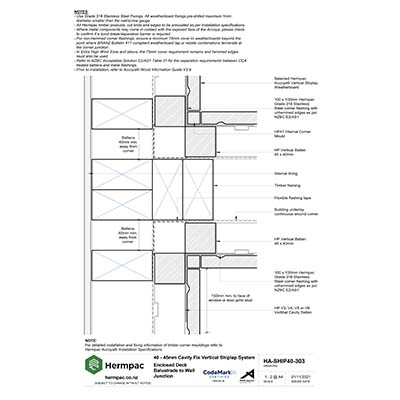

Enclosed Deck Balustrade to Wall Junction


HA-SHIP40-306

26HA-SHIP40-306

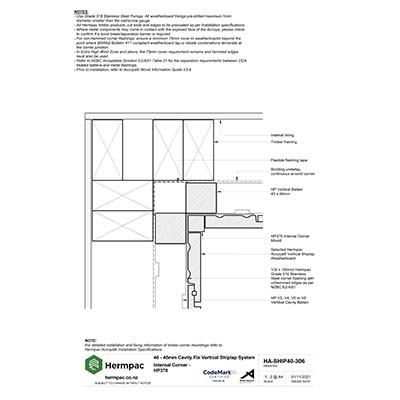

Internal Corner HP370


HA-SHIP40-307

27HA-SHIP40-307

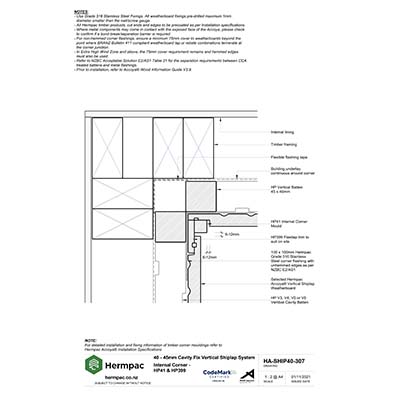

Internal Corner HP41 & HP399


HA-SHIP40-308

28HA-SHIP40-308

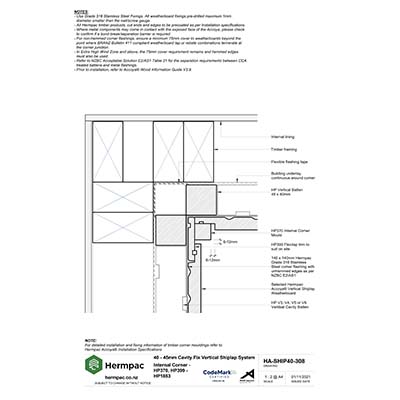

Internal Corner HP370 & HP399-HP1853


HA-SHIP40-309

29HA-SHIP40-309

Internal Corner HP110 & HP399


HA-SHIP40-310

30HA-SHIP40-310

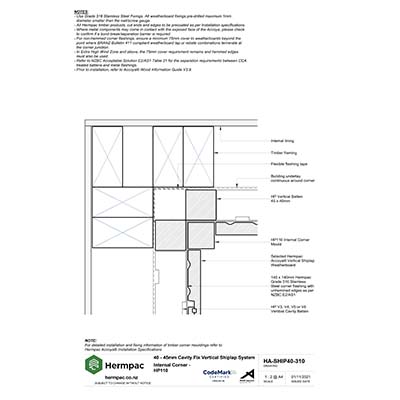

Internal Corner HP110


HA-SHIP40-311

31HA-SHIP40-311

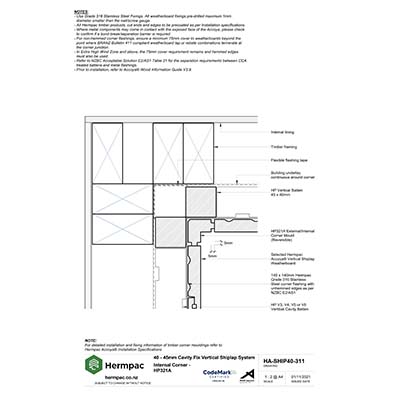

Internal Corner HP321A


HA-SHIP40-400

32HA-SHIP40-400

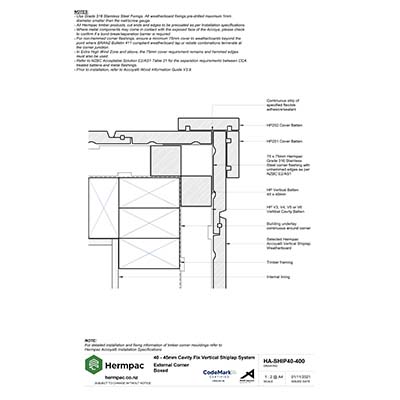

External Corner Boxed


HA-SHIP40-402

33HA-SHIP40-402

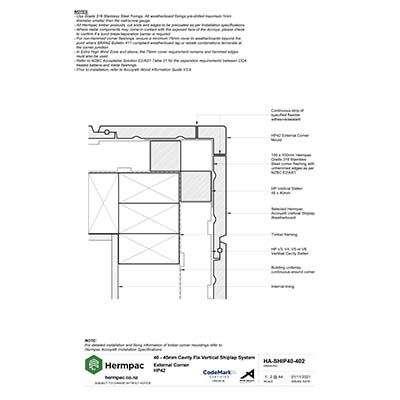

External Corner HP42


HA-SHIP40-403

34HA-SHIP40-403

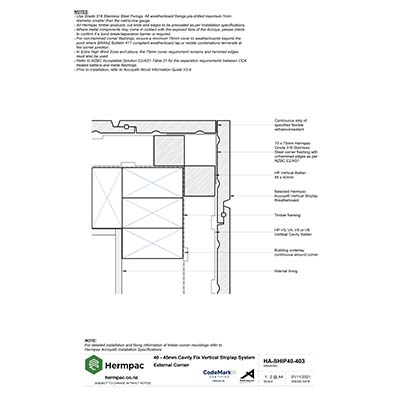

External Corner

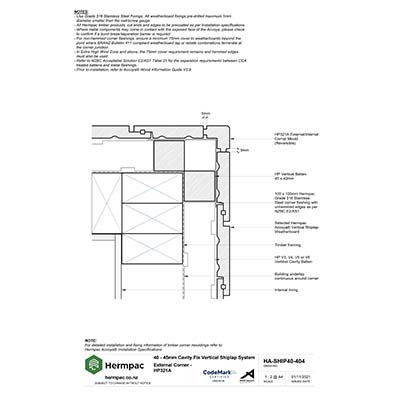

HA-SHIP40-404

35HA-SHIP40-404

External Corner HP321A


HA-SHIP40-407

36HA-SHIP40-407

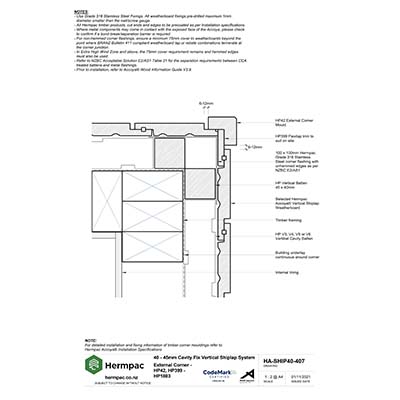

External Corner HP42, HP399 - HP1803


HA-SHIP40-407A

37HA-SHIP40-407A

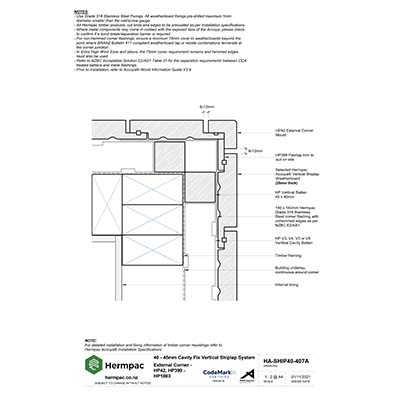

External Corner HP42, HP399 - HP1803


HA-SHIP40-408

38HA-SHIP40-408

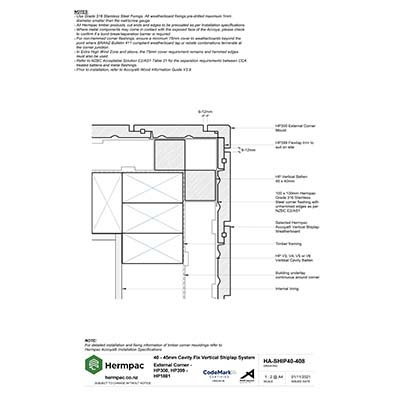

External Corner HP300, HP399 - HP1801


HA-SHIP40-409

39HA-SHIP40-409

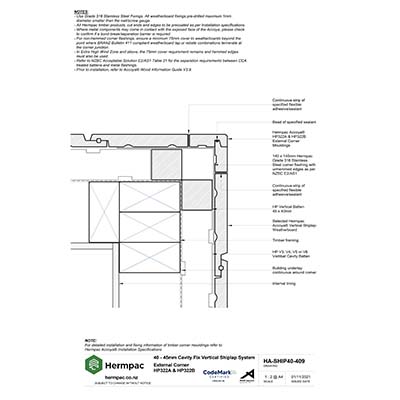

External Corner HP322A & HP322B


HA-SHIP40-409A

40HA-SHIP40-409A

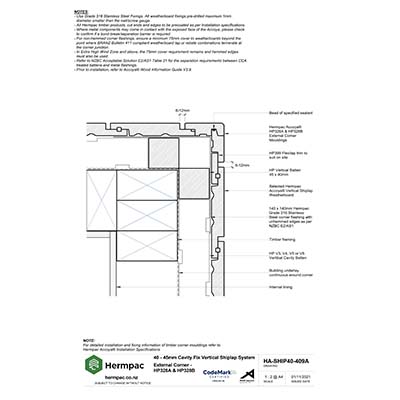

External Corner HP328A & HP328B

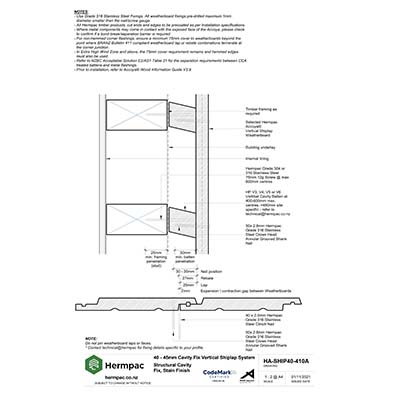

HA-SHIP40-410A

41HA-SHIP40-410A

Structural Cavity Fix, Stain Finish


HA-SHIP40-410

42HA-SHIP40-410

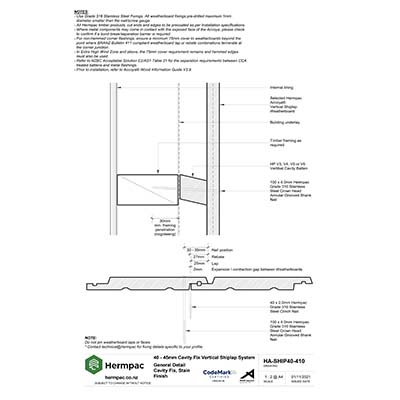

General Detail Cavity Fix, Stain Finish


HA-SHIP40-410S

43HA-SHIP40-410S

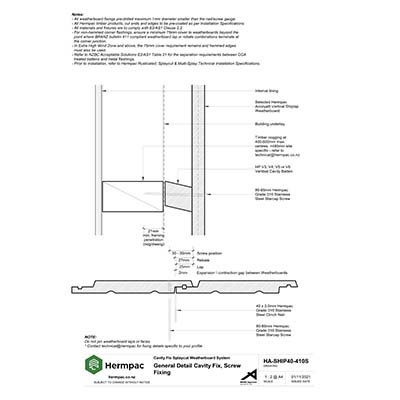

General Detail Cavity Fix, Screw Fixing


HA-SHIP40-410SS

44HA-SHIP40-410SS

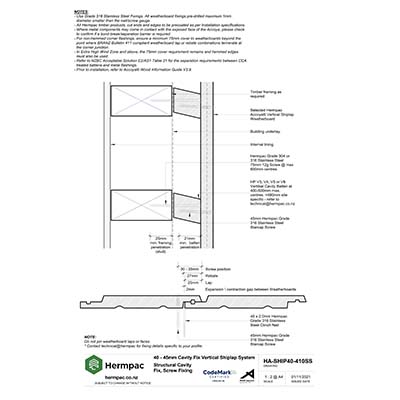

Structural Cavity Fix, Screw Fixing


HA-SHIP40-411

45HA-SHIP40-411

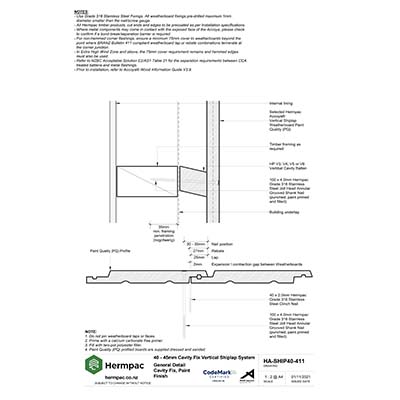

General Detail Cavity Fix, Paint Finish

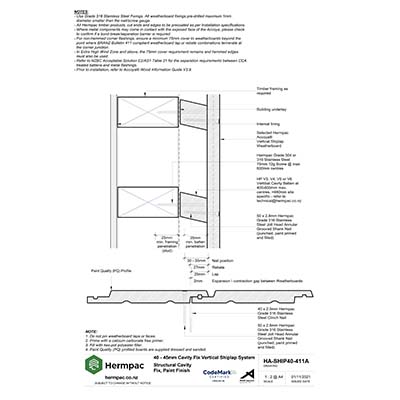

HA-SHIP40-411A

46HA-SHIP40-411A

Structural Cavity Fix, Paint Finish


HA-SHIP40-412

47HA-SHIP40-412

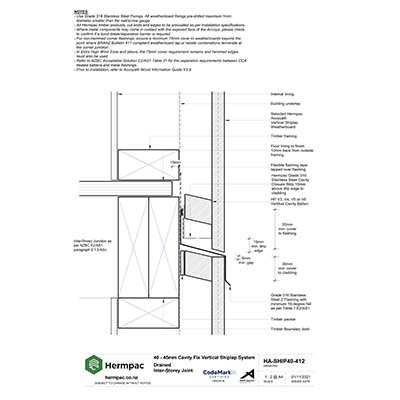

Drained Inter-Storey Joint


HA-SHIP40-413

48HA-SHIP40-413

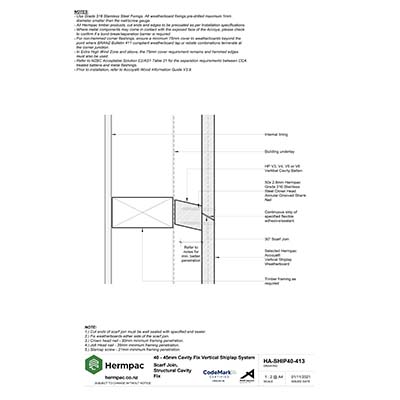

Scarf Join, Structural Cavity Fix


HA-SHIP40-501

49HA-SHIP40-501

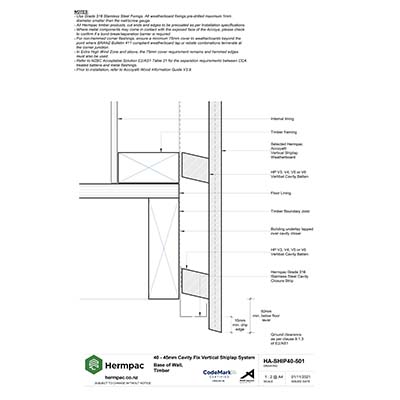

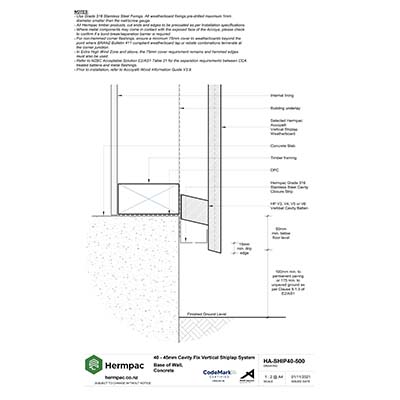

Base of Wall, Timber


HA-SHIP40-500

50HA-SHIP40-500

Base of Wall, Concrete


HA-SHIP40-502

51HA-SHIP40-502

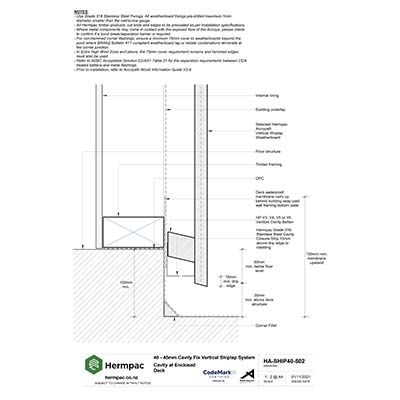

Cavity at Enclosed Deck

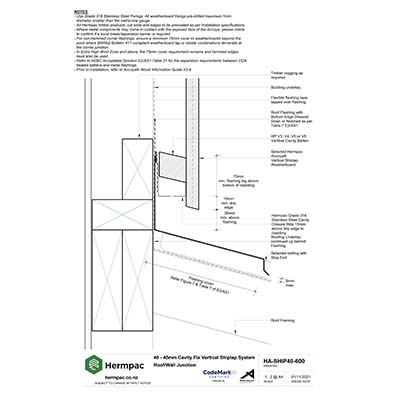

HA-SHIP40-600

52HA-SHIP40-600

Roof-Wall Junction


HA-SHIP40-601

53HA-SHIP40-601

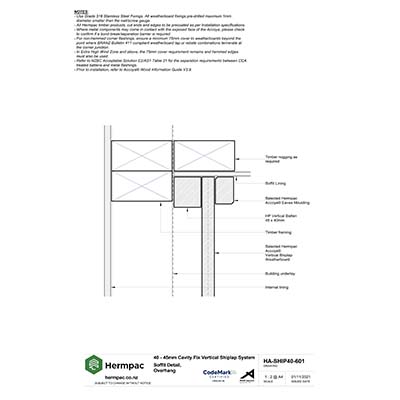

Soffit Detail, Overhang


HA-SHIP40-601A

54HA-SHIP40-601A

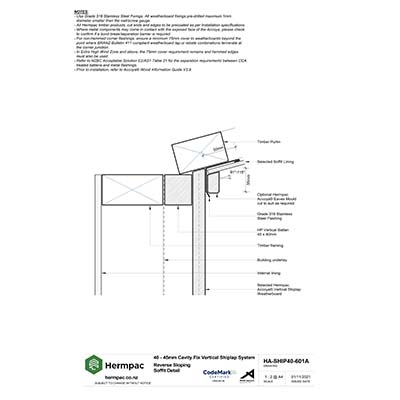

Reverse Sloping Soffit Detail


HA-SHIP40-601B

55HA-SHIP40-601B

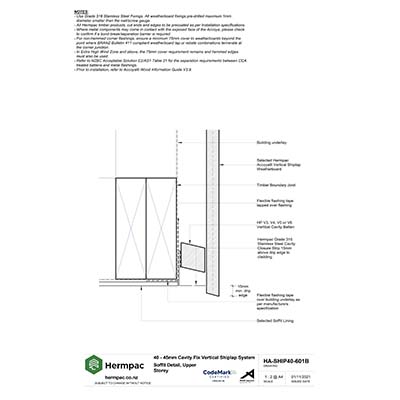

Soffit Detail, Upper Storey


HA-SHIP40-602

56HA-SHIP40-602

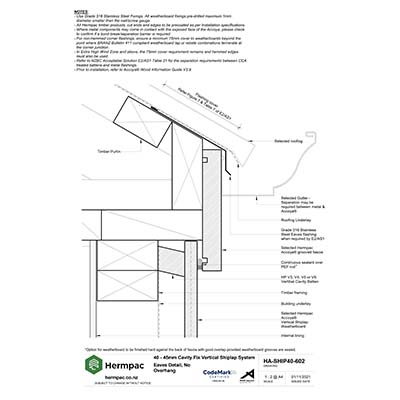

Eaves Detail, No Overhang


HA-SHIP40-700

57HA-SHIP40-700

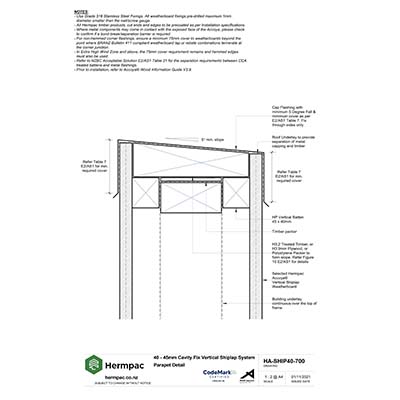

Parapet Detail


HA-SHIP40-801

58HA-SHIP40-801

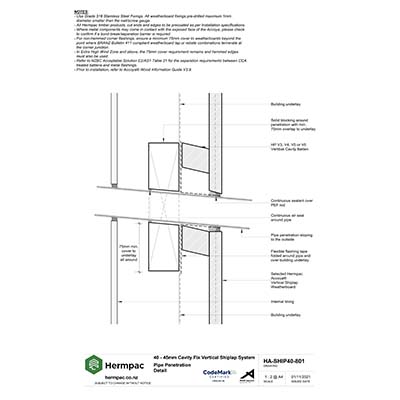

Pipe Penetration Detail


HA-SHIP40-800

59HA-SHIP40-800

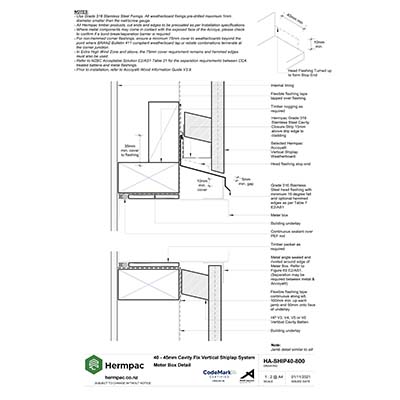

Meter Box Detail


HA-SHIP40-802

60HA-SHIP40-802

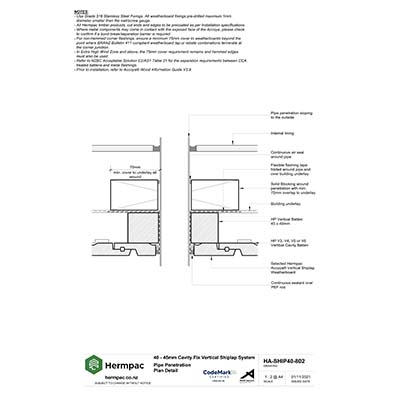

Pipe Penetration Plan Detail
