Series Profile Drawing
Profile Drawing
BRANZ Appraisal 650
CODEMARK CMNZ30036
CLICK HERE for Masterspec Document

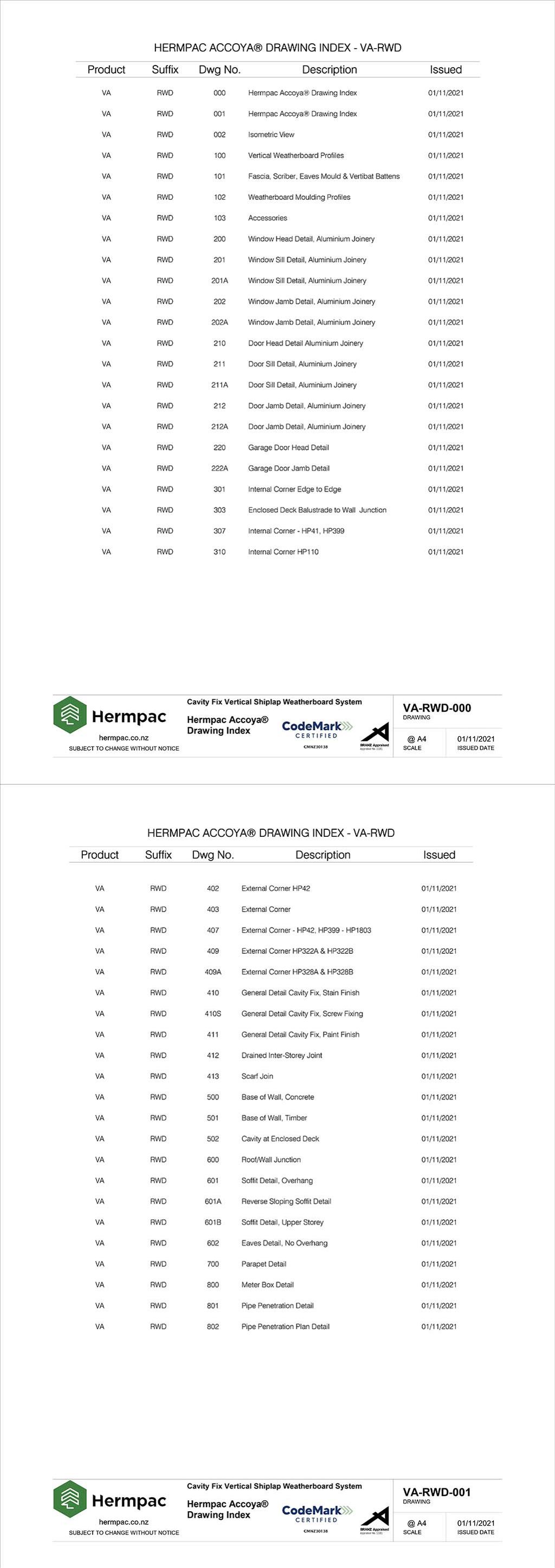

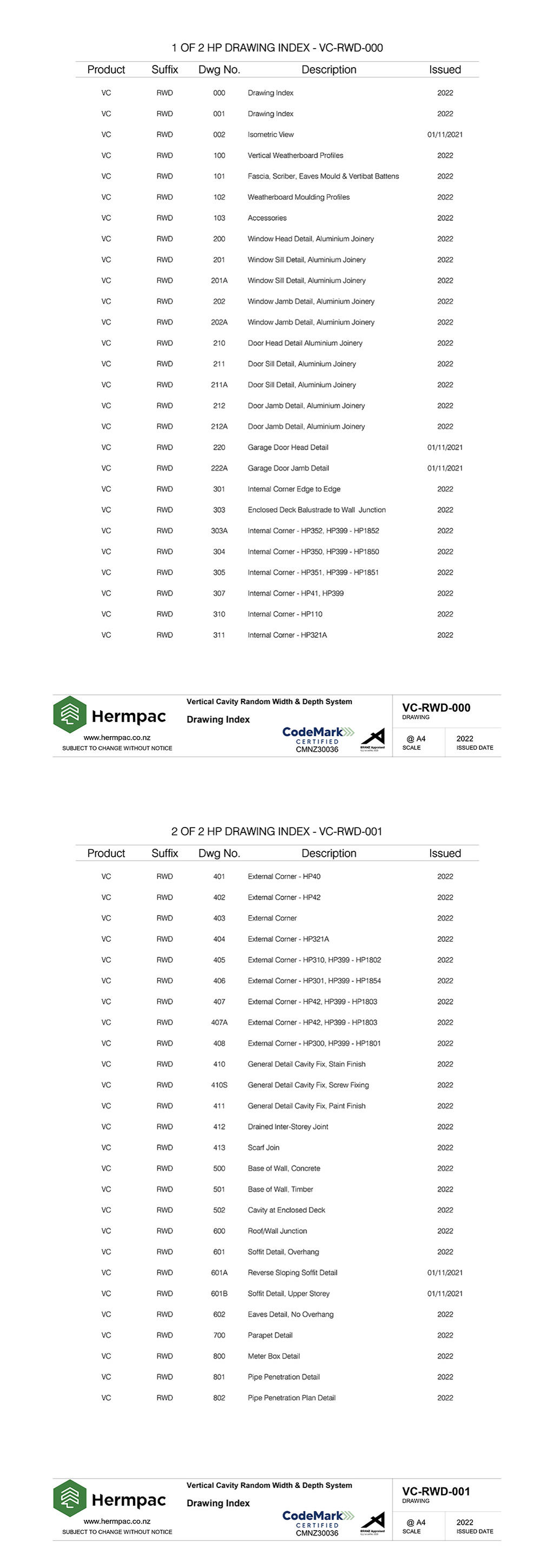

Drawing Index

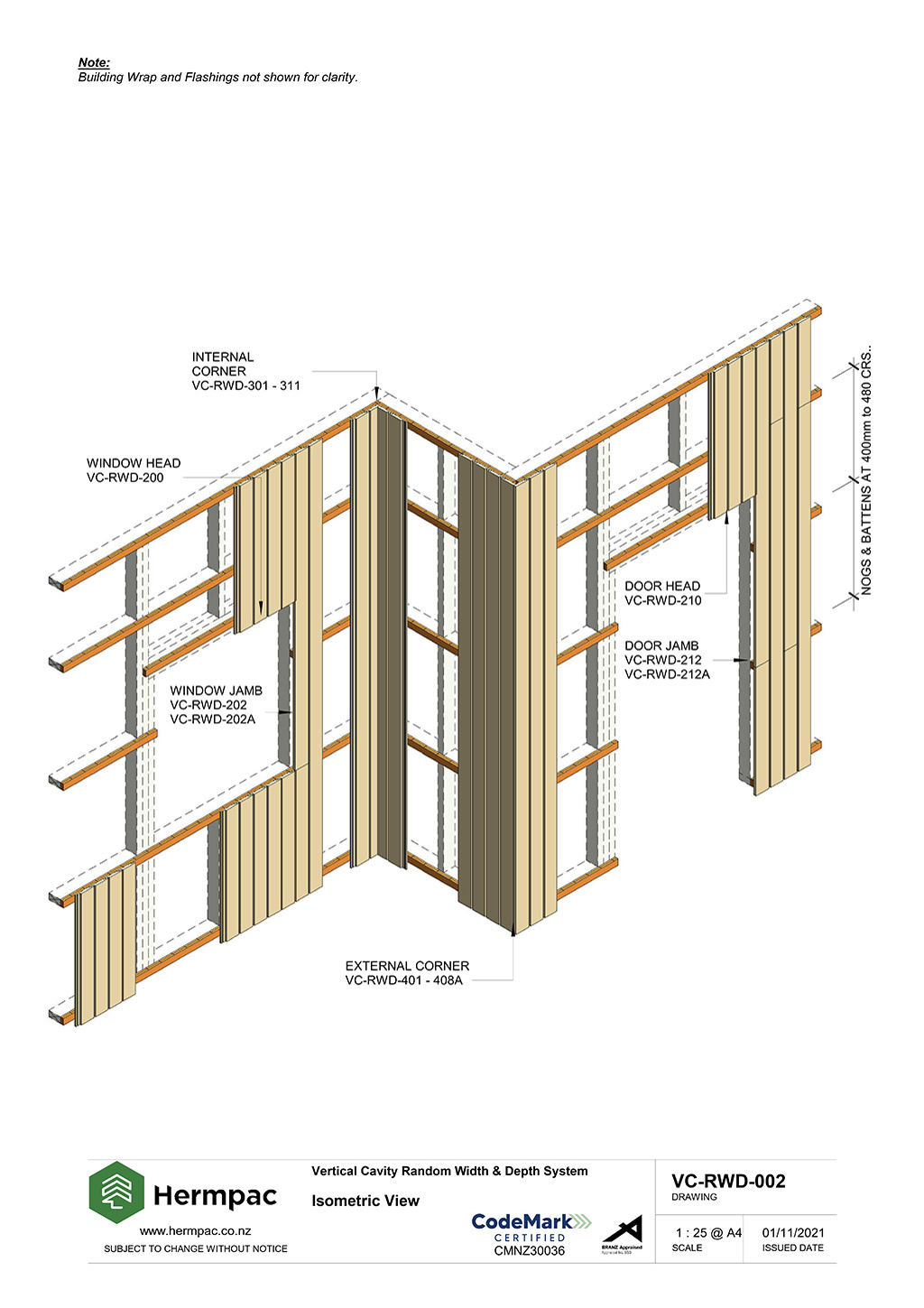

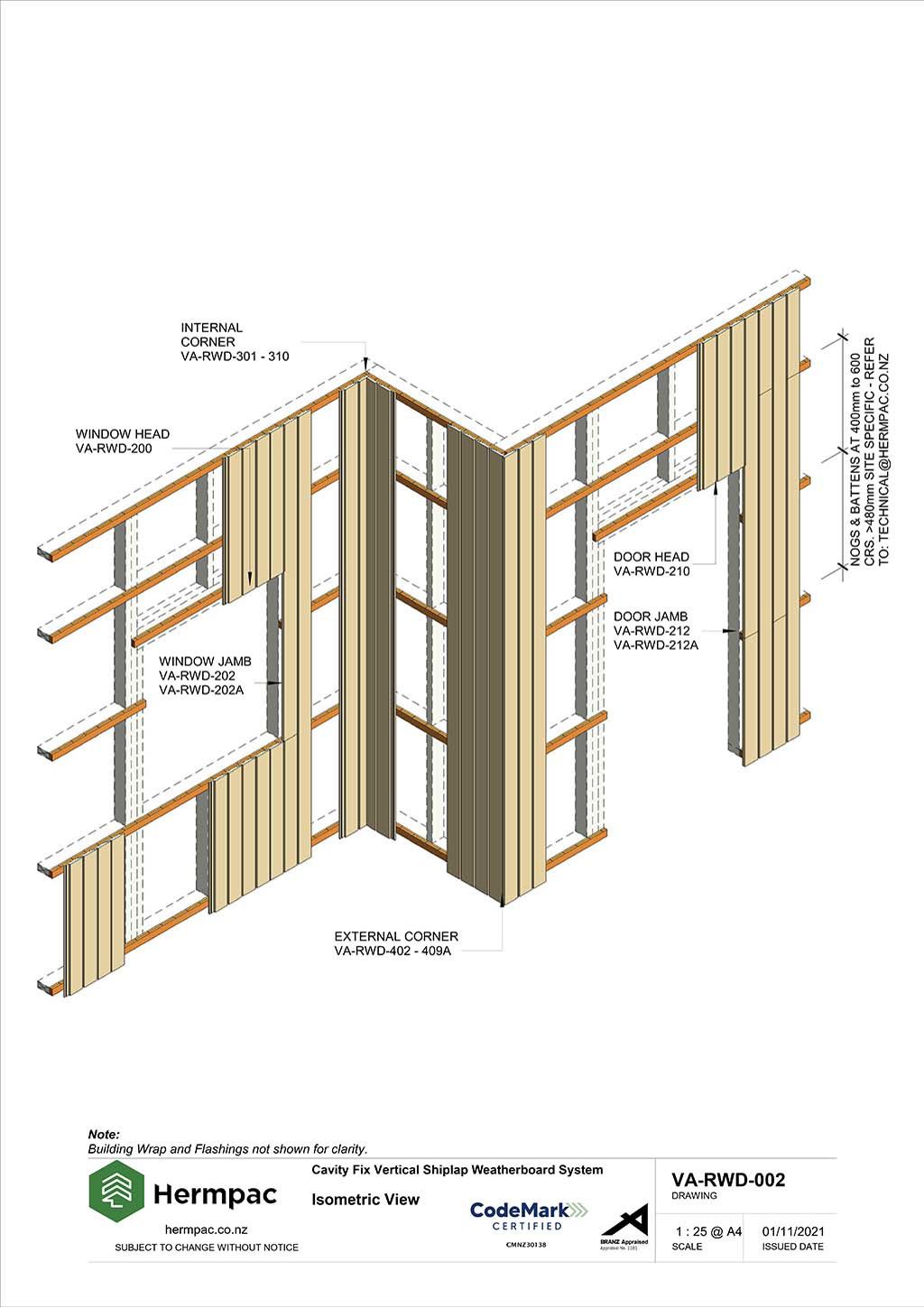

Isometric View

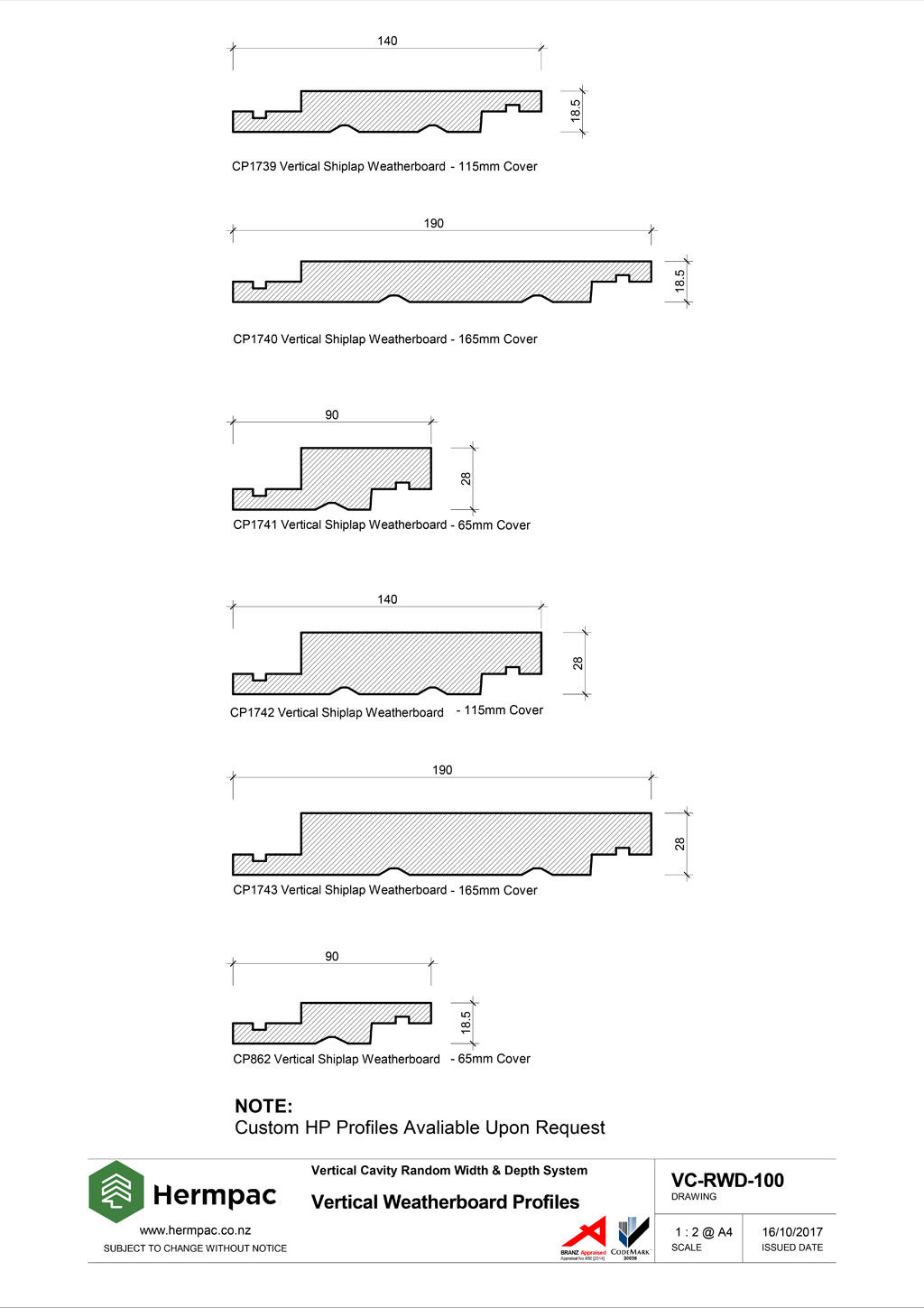

Vertical Weatherboard Profiles
Trim & Moulding Profiles
Moulds & Weatherboard System Profiles

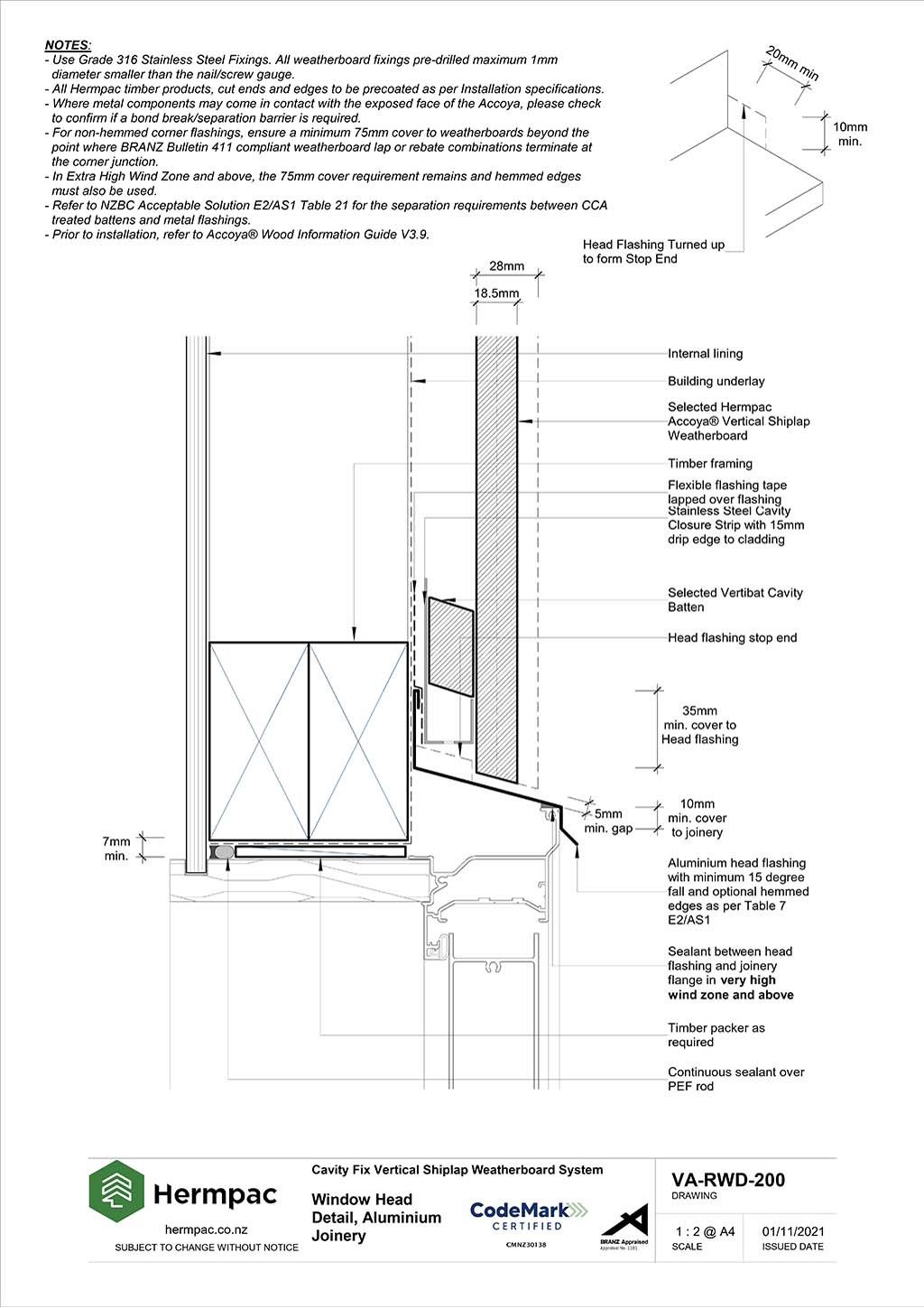

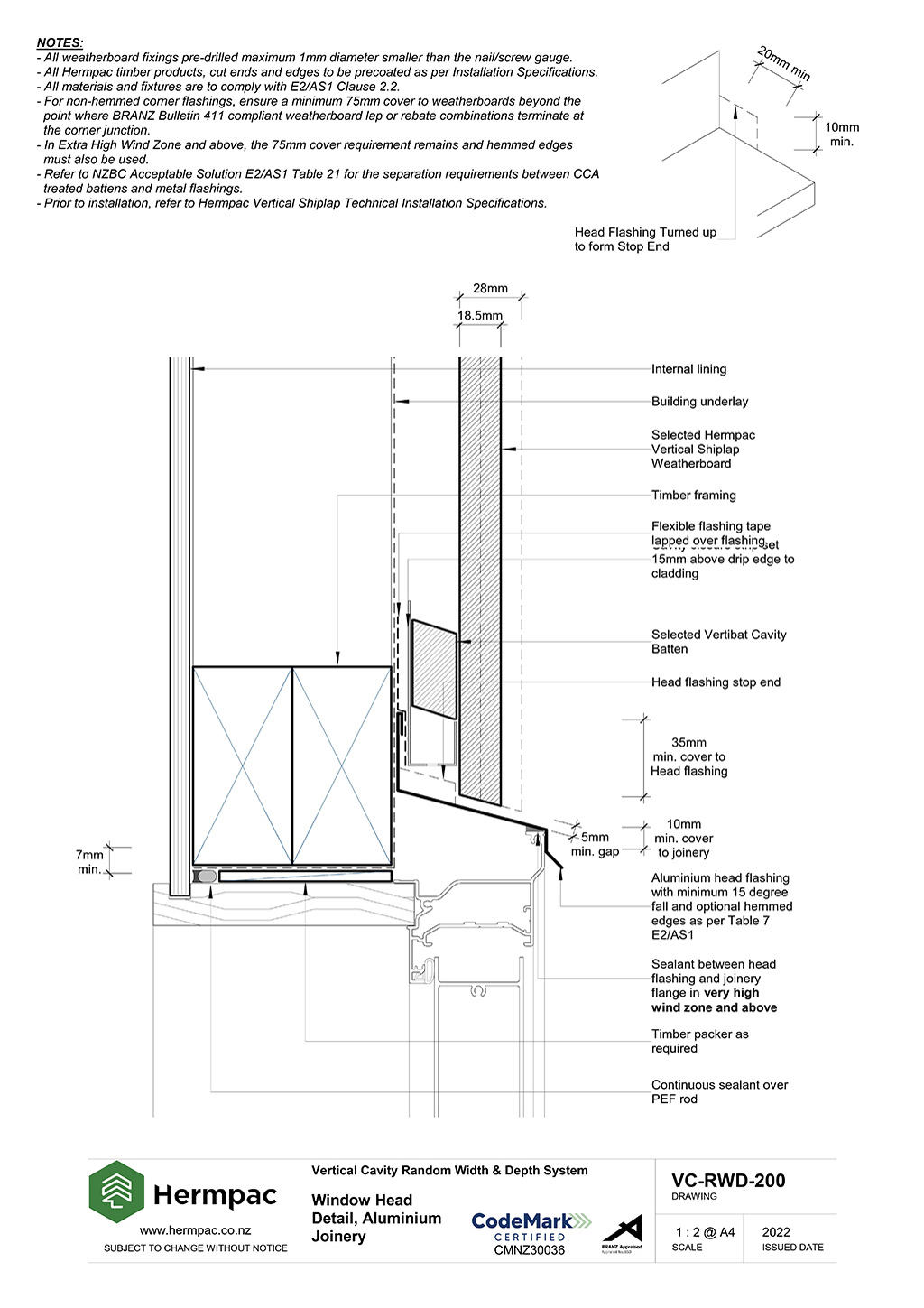

Window Head Detail,
Aluminium Joinery
Window Sill Detail,

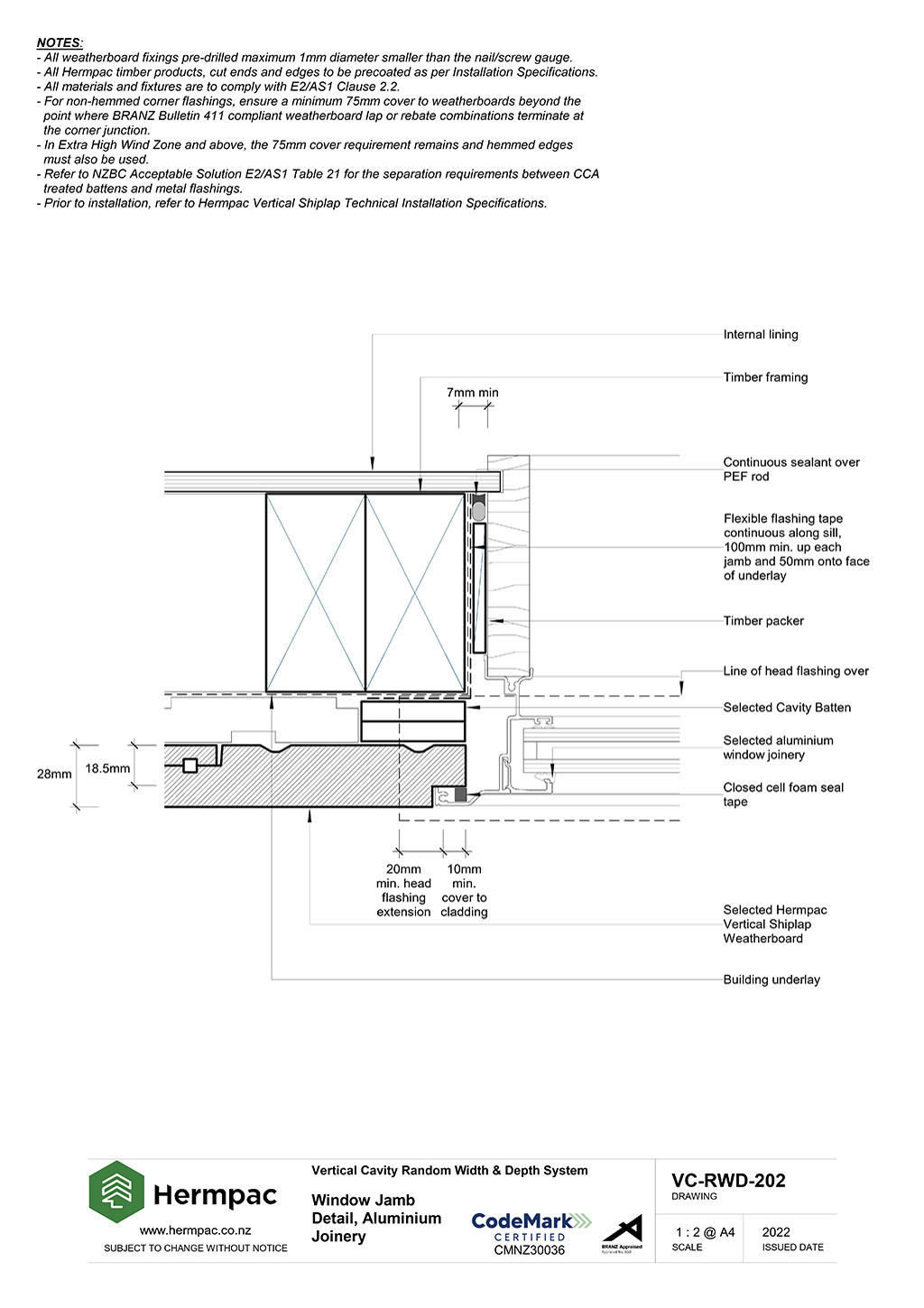

Window Jamb Detail,
Door Head Detail,

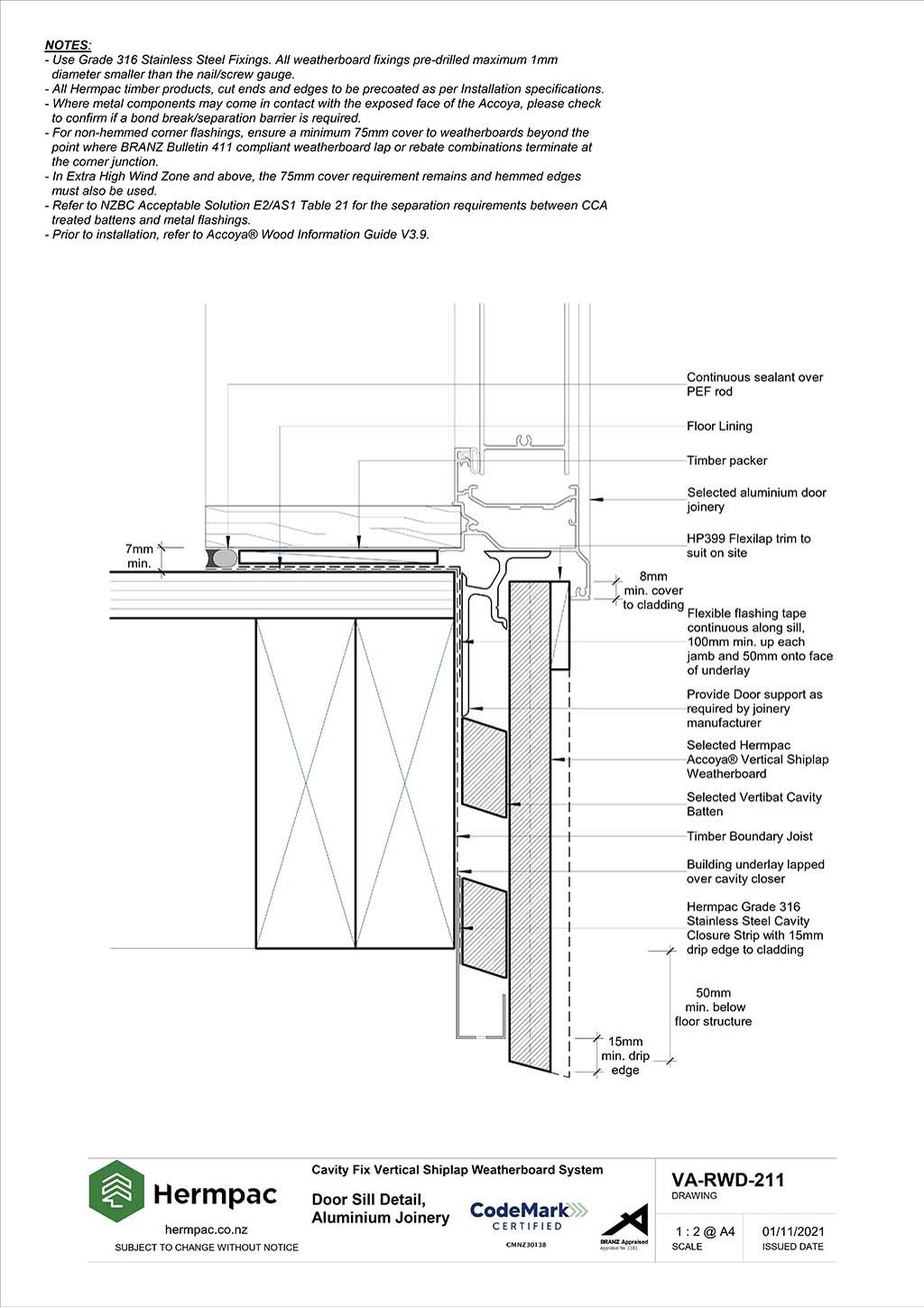

Door Sill Detail,

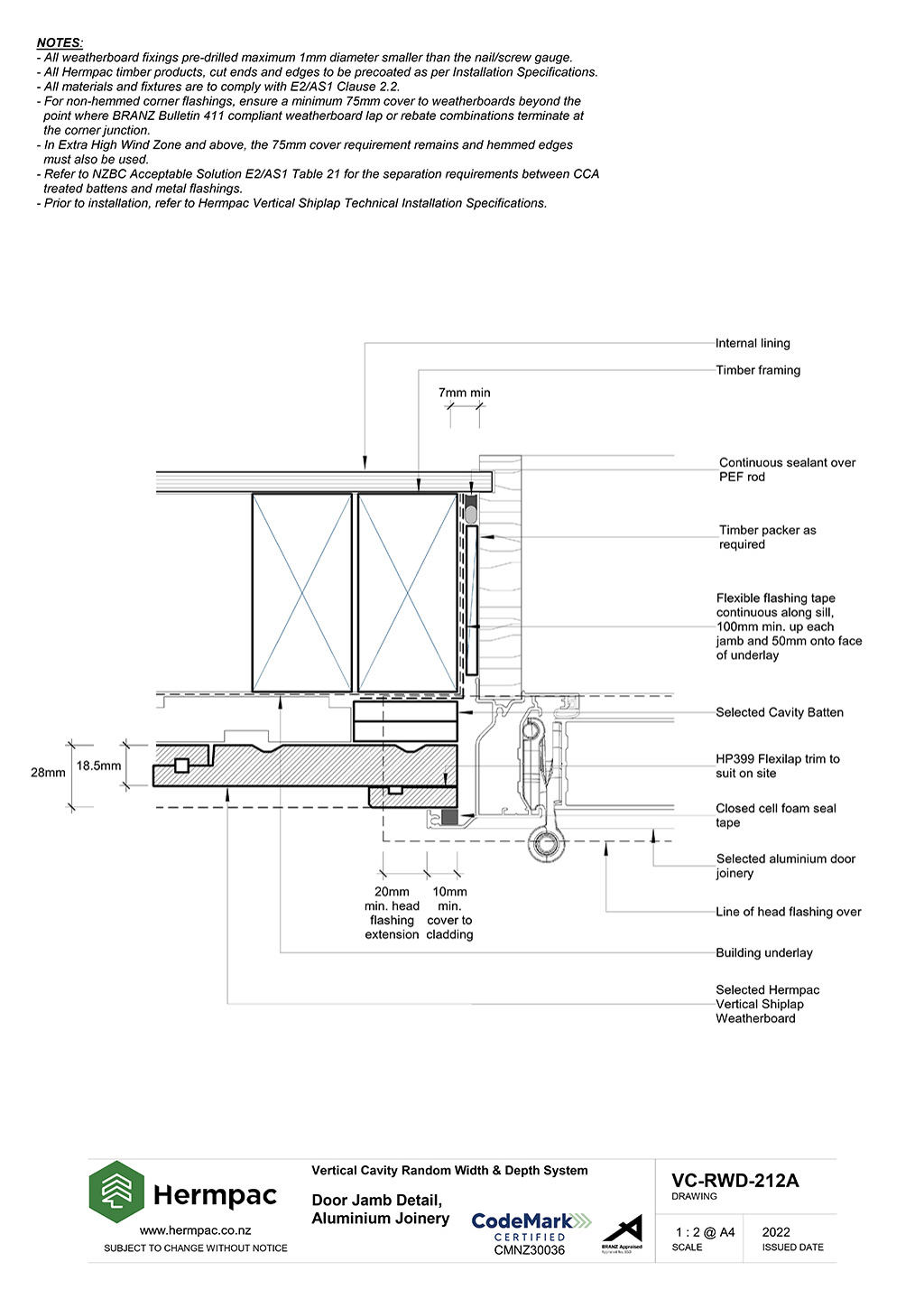

Door Jamb Detail,

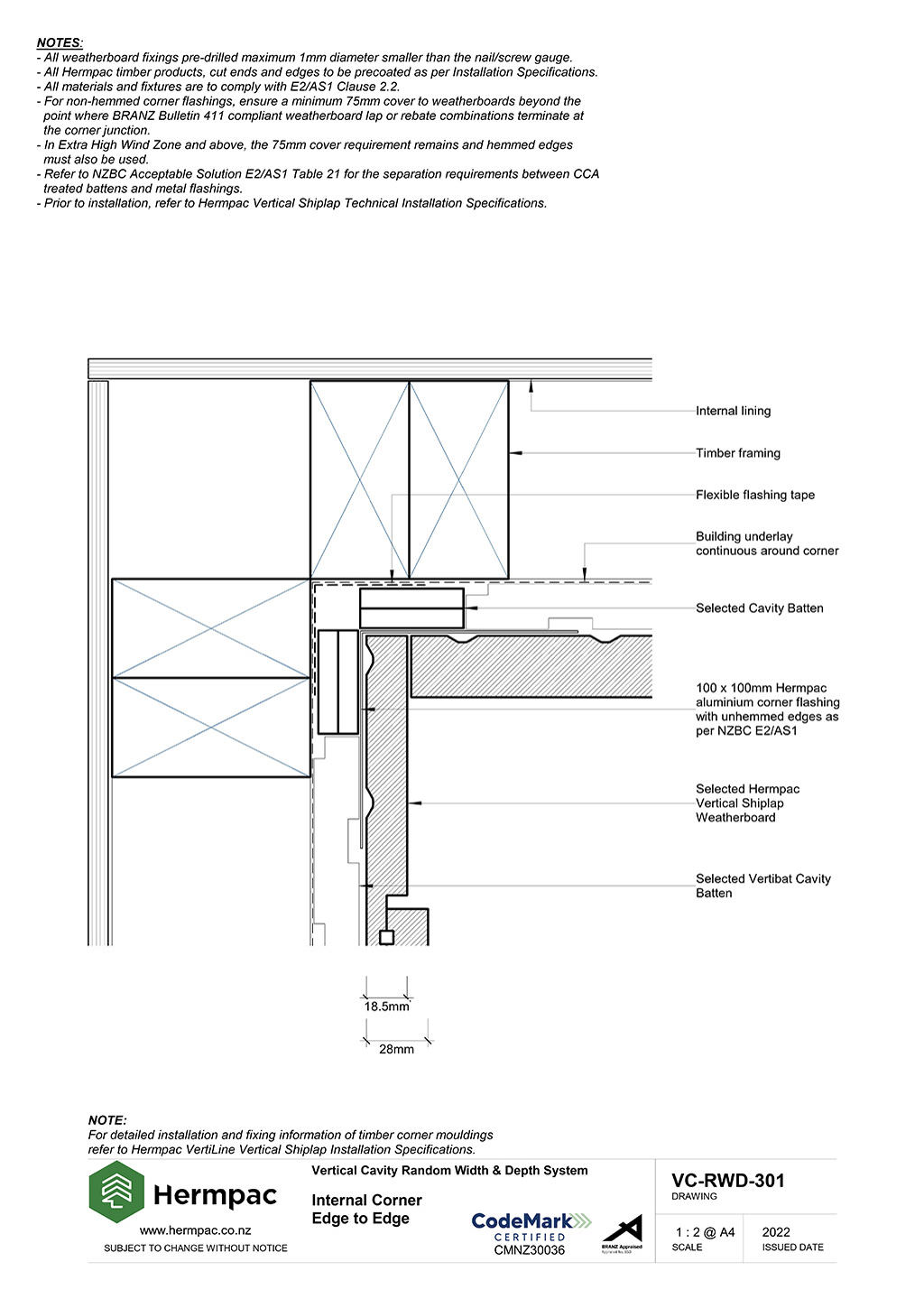

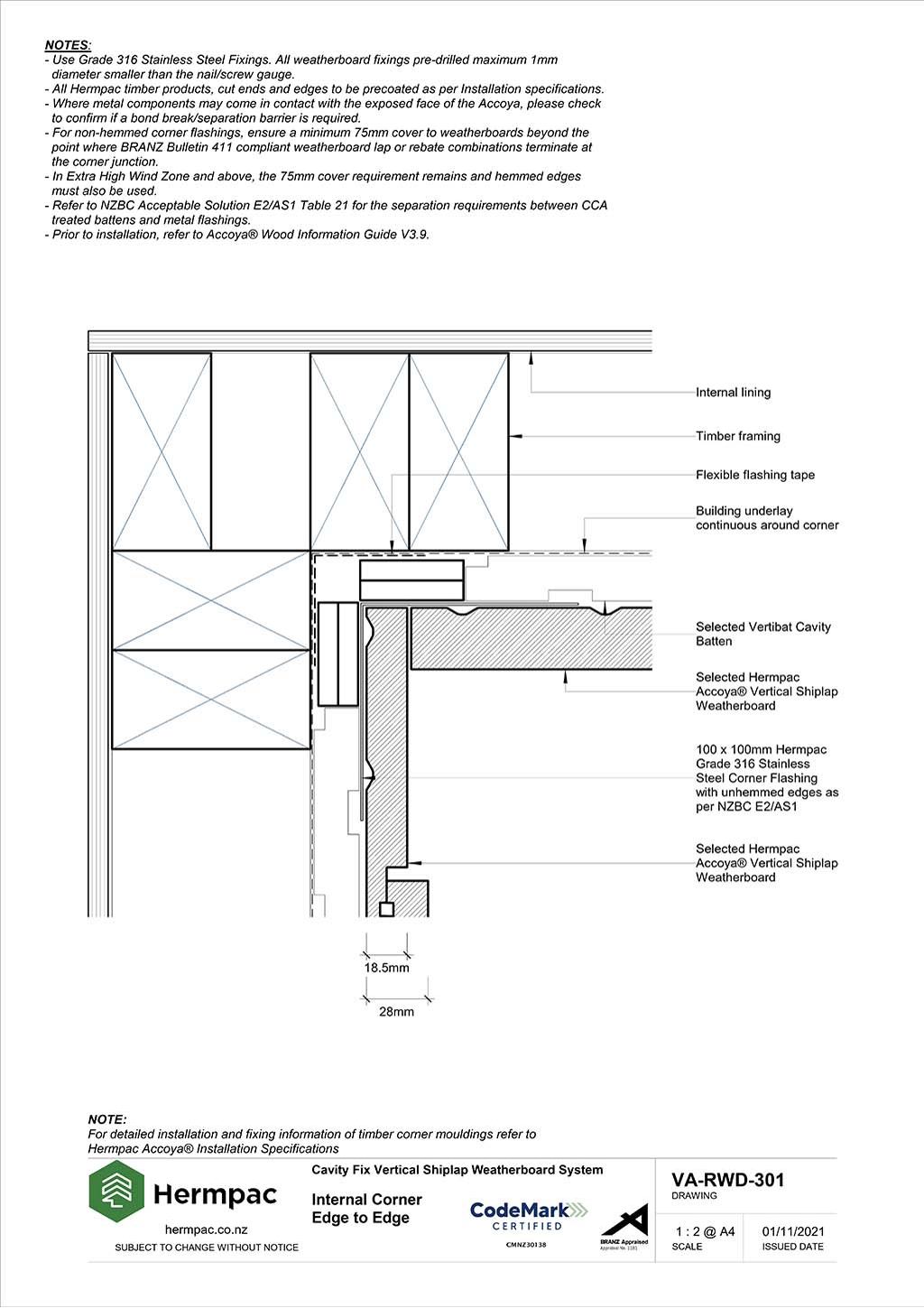

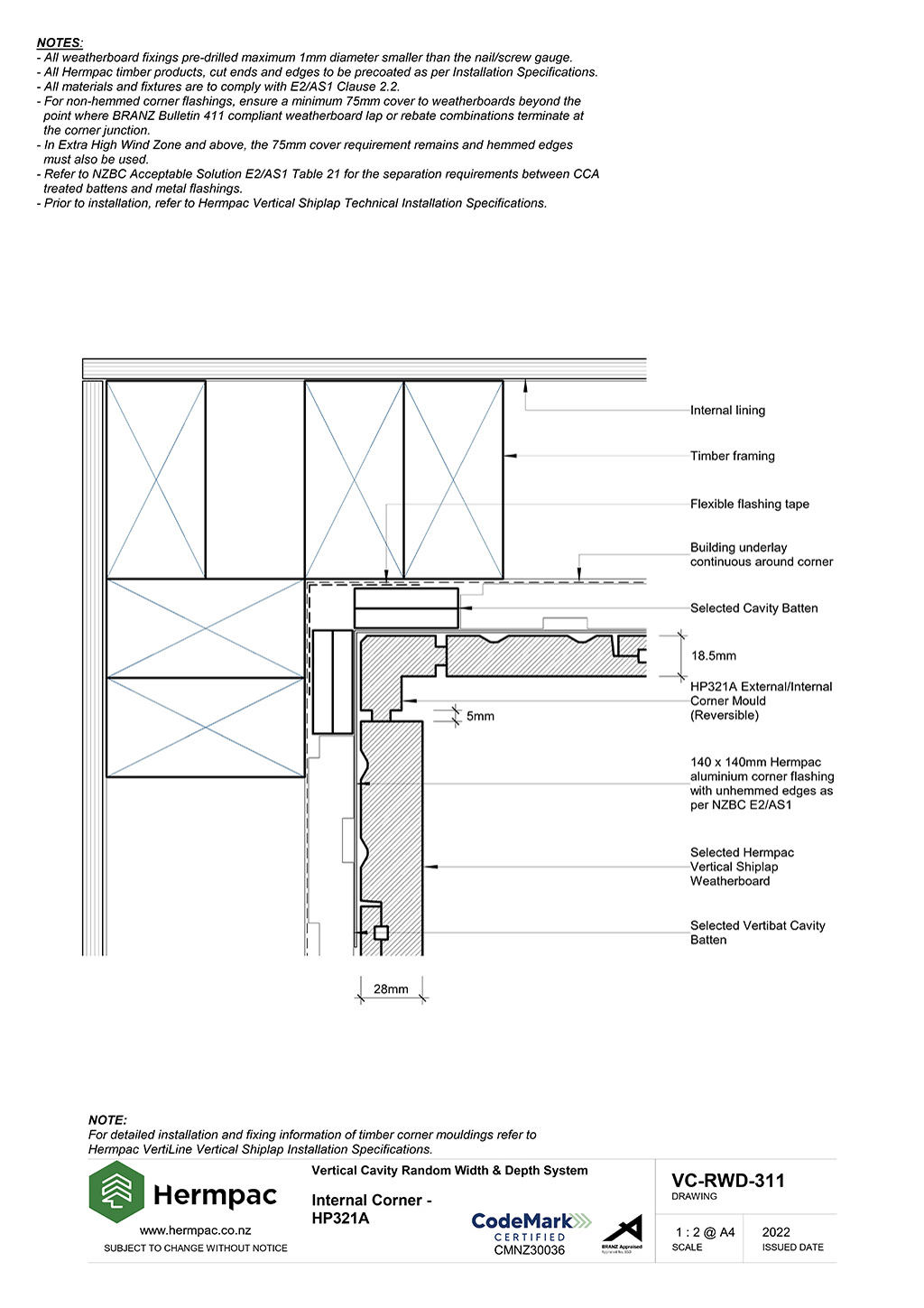

Internal Corner Edge to Edge

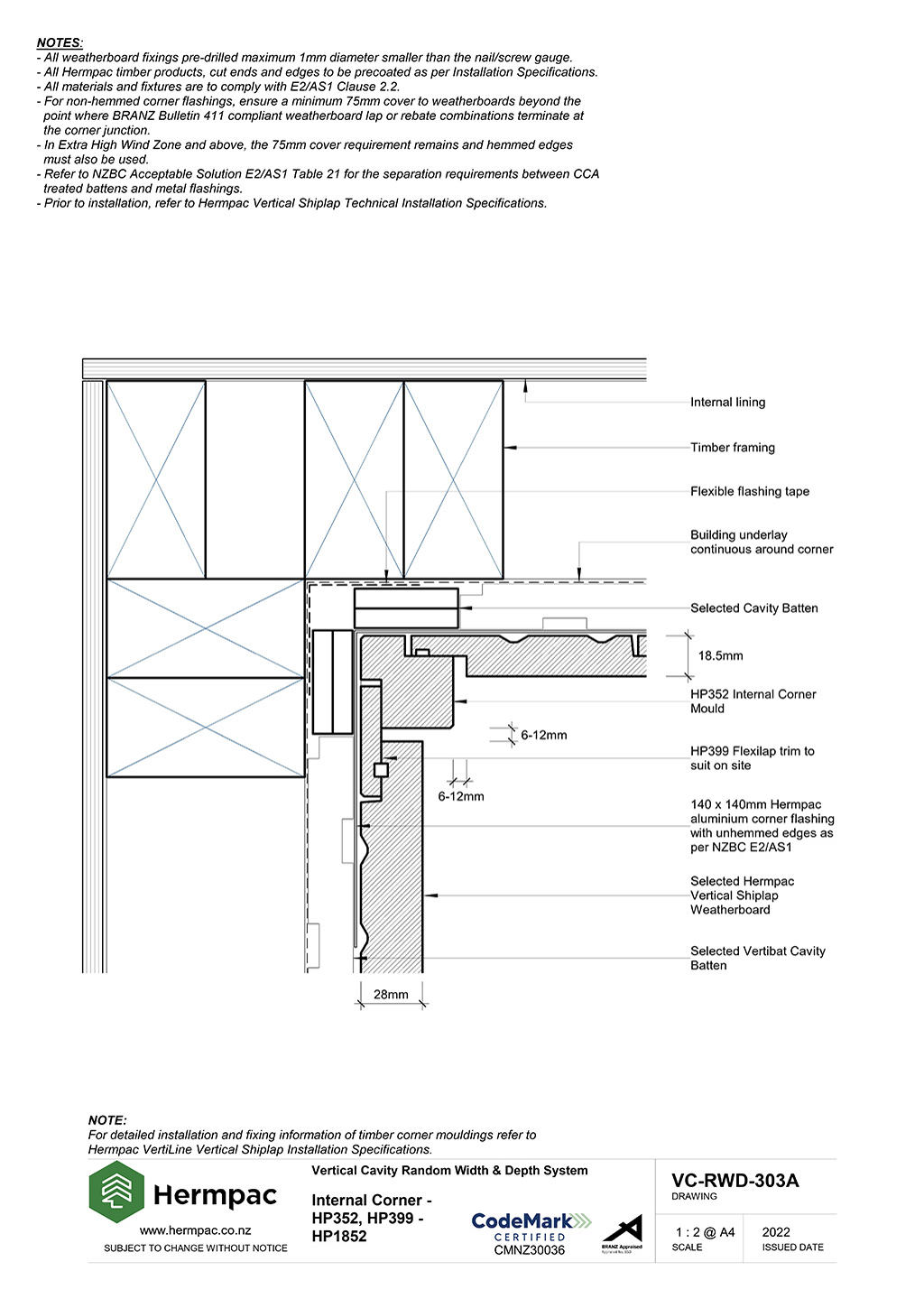

Internal Corner - HP352, HP399 - HP1852
Internal Corner - HP350, HP399 - HP1850
Internal Corner - HP351, HP399 - HP1851
Internal Corner - HP41, HP399
Internal Corner - HP110
Internal Corner - HP360

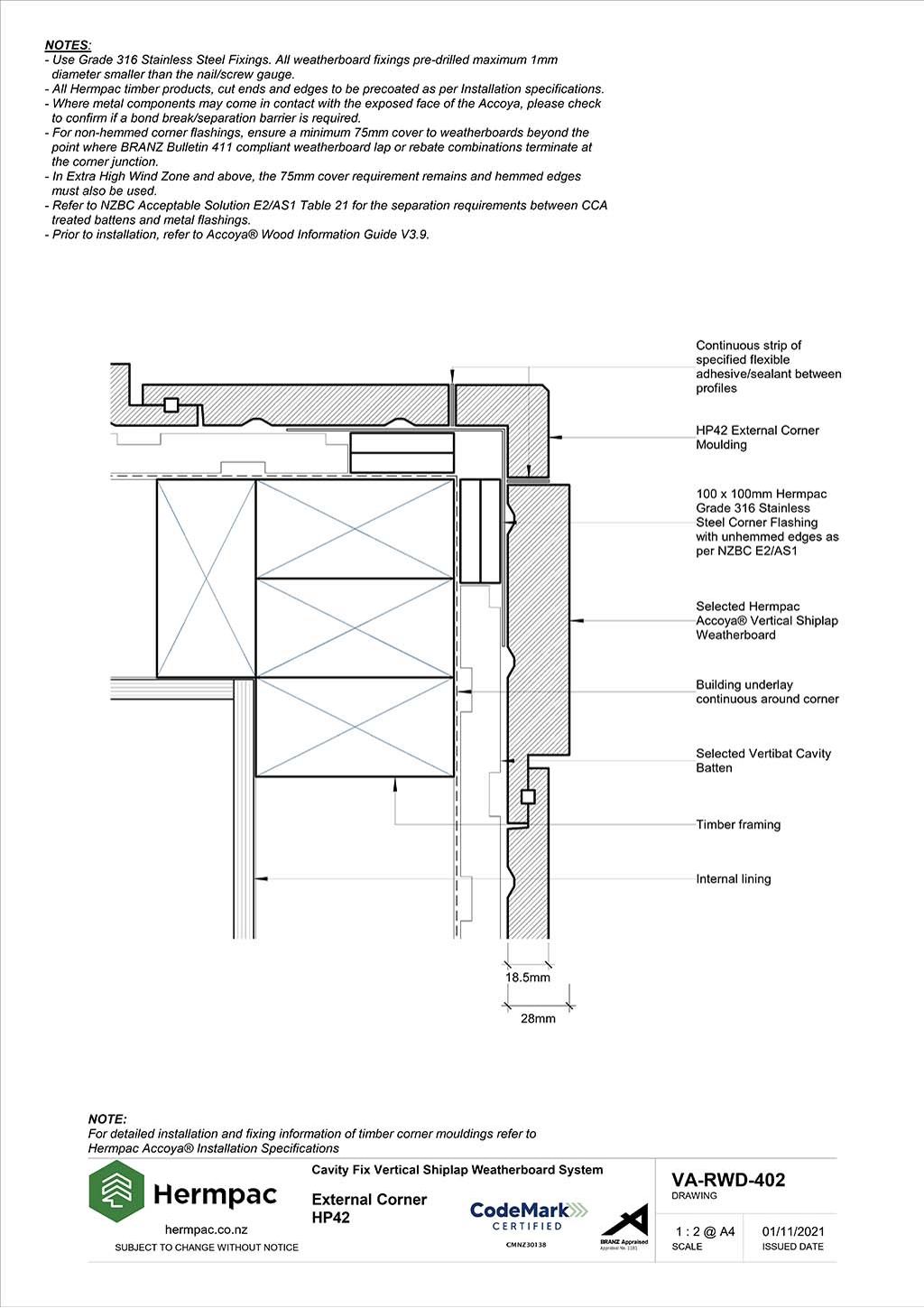

External Corner - HP40
External Corner - HP42

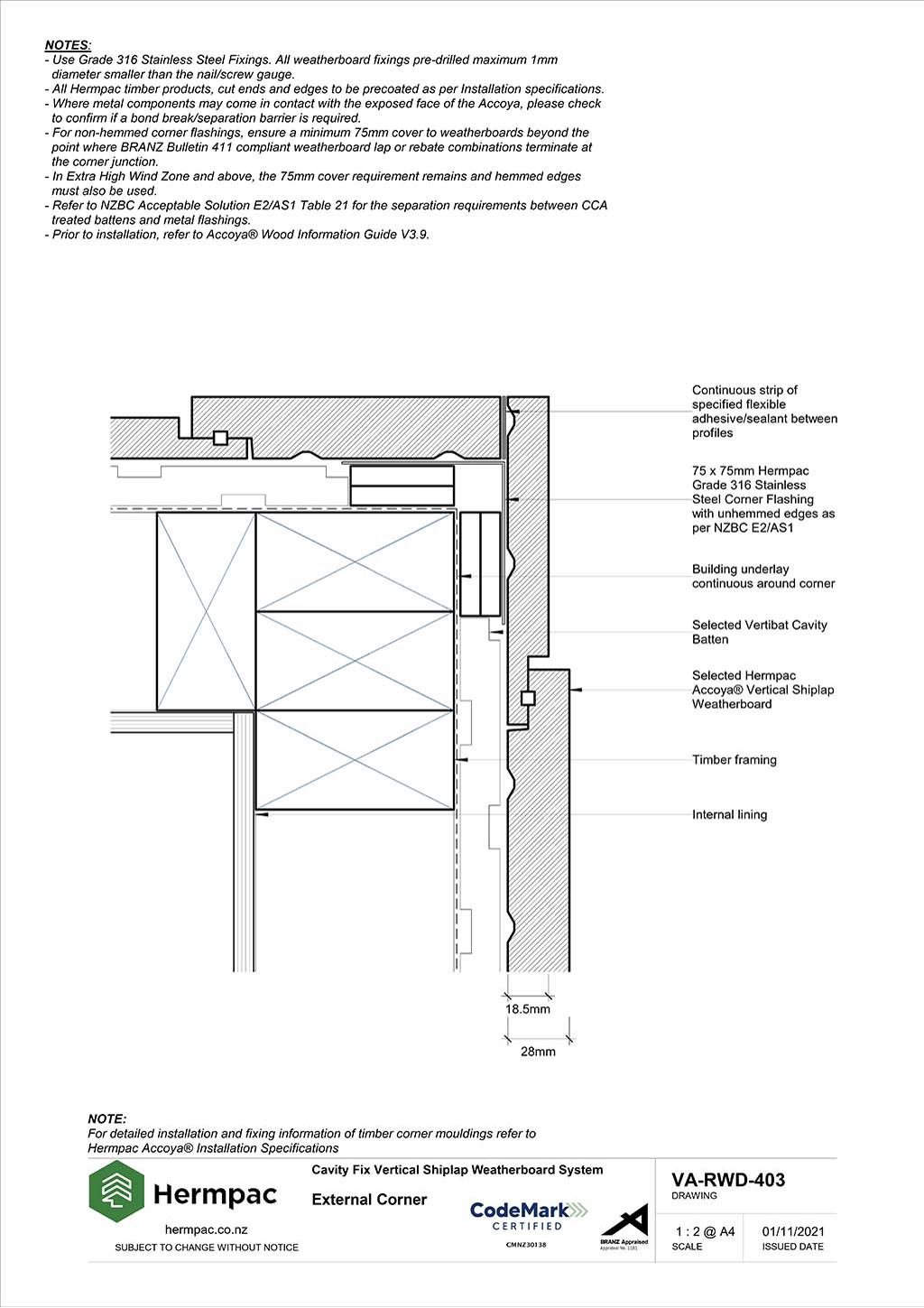

External Corner

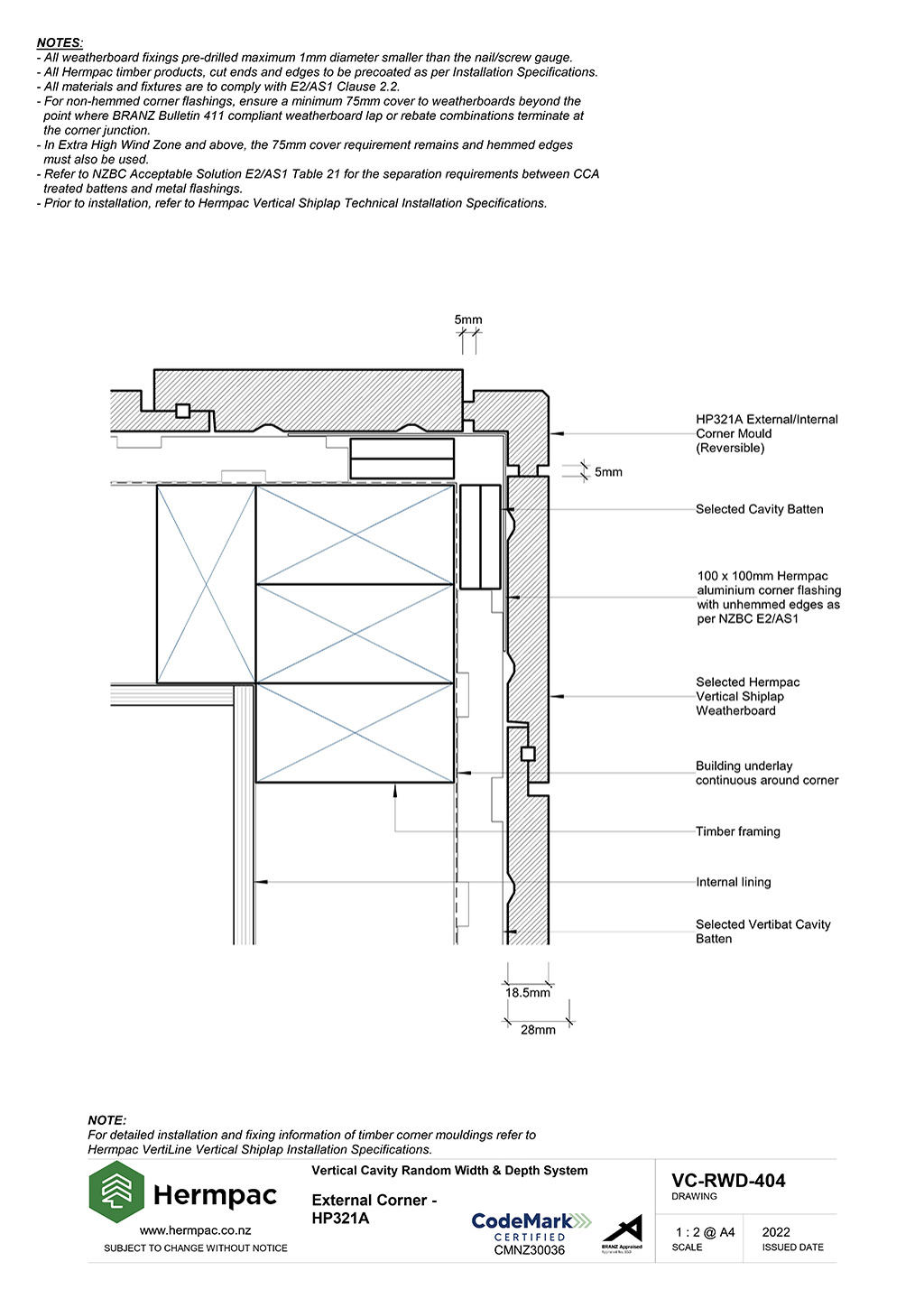

External Corner - HP321
External Corner - HP310, HP399 - HP1802

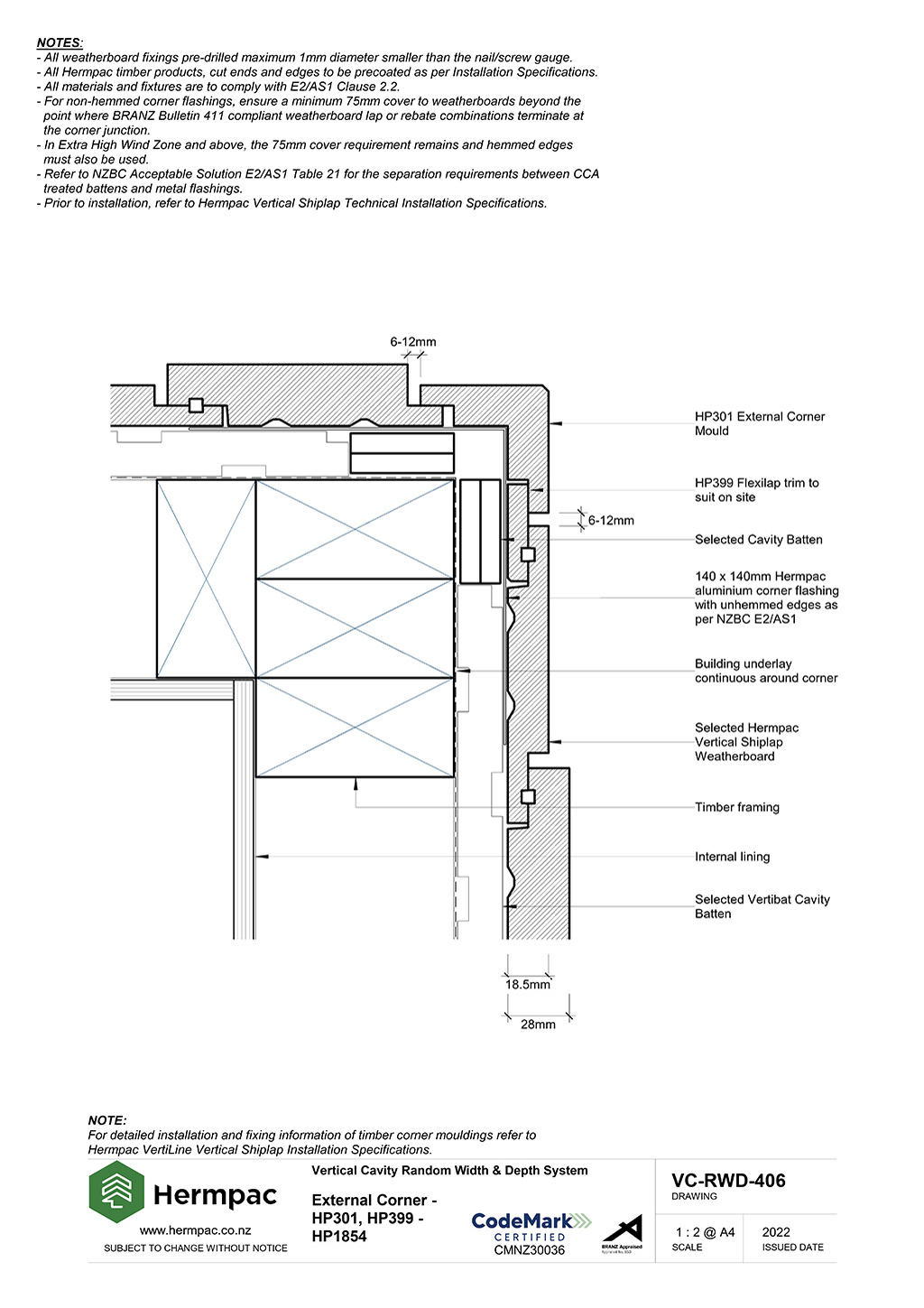

External Corner - HP301, HP399 - HP1854

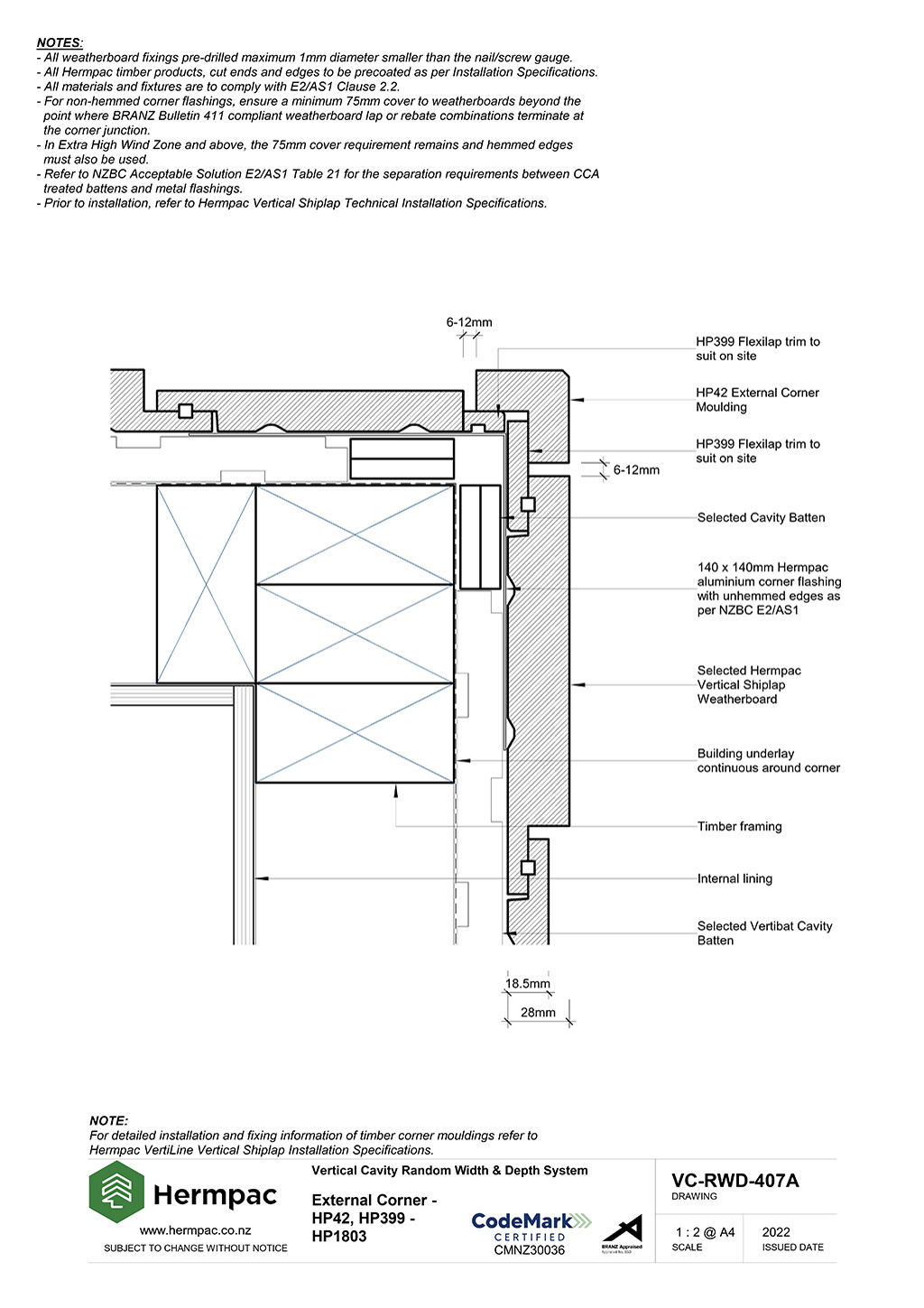

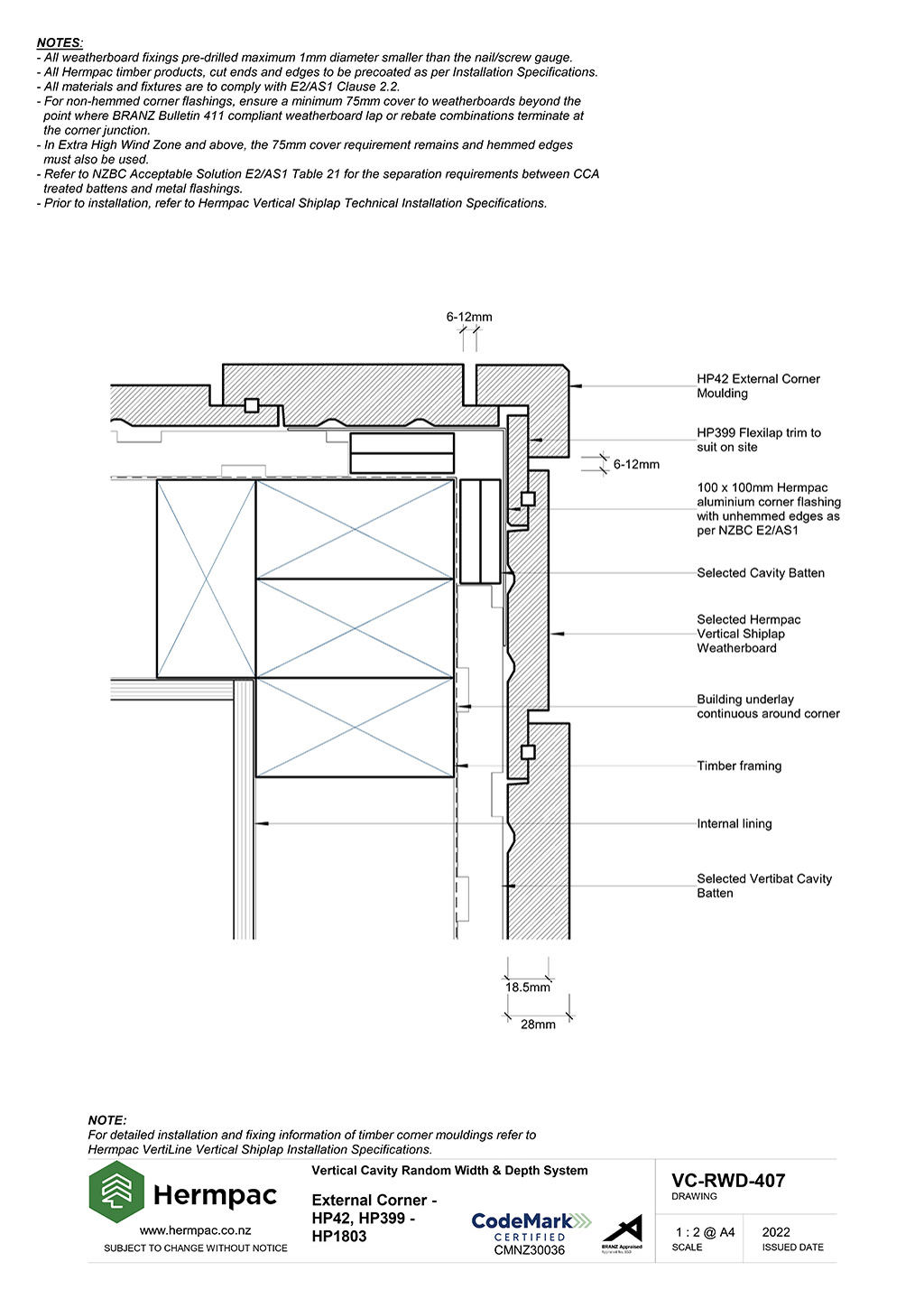

External Corner - HP42, HP399 - HP1803

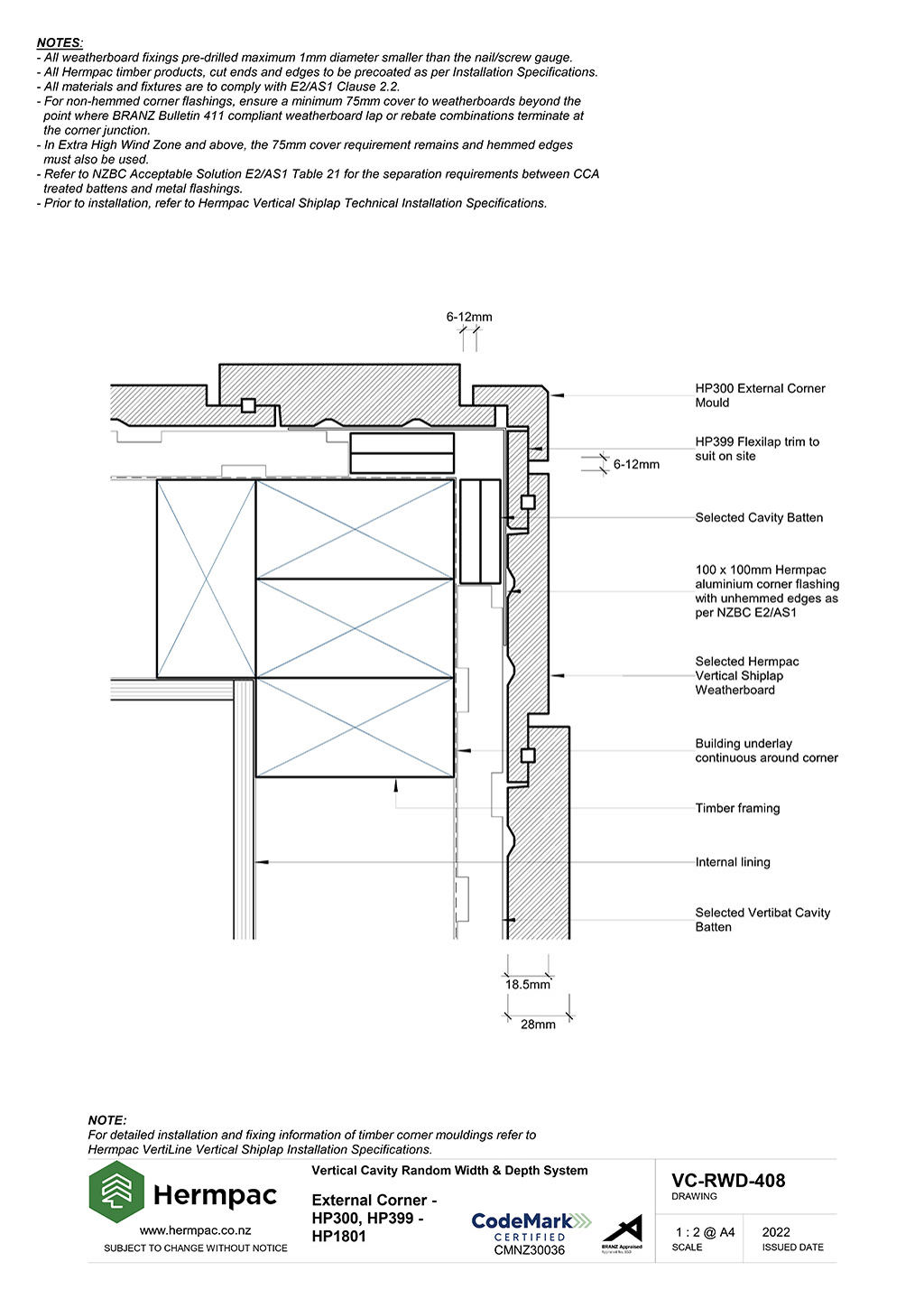

External Corner - HP300, HP399 - HP1801

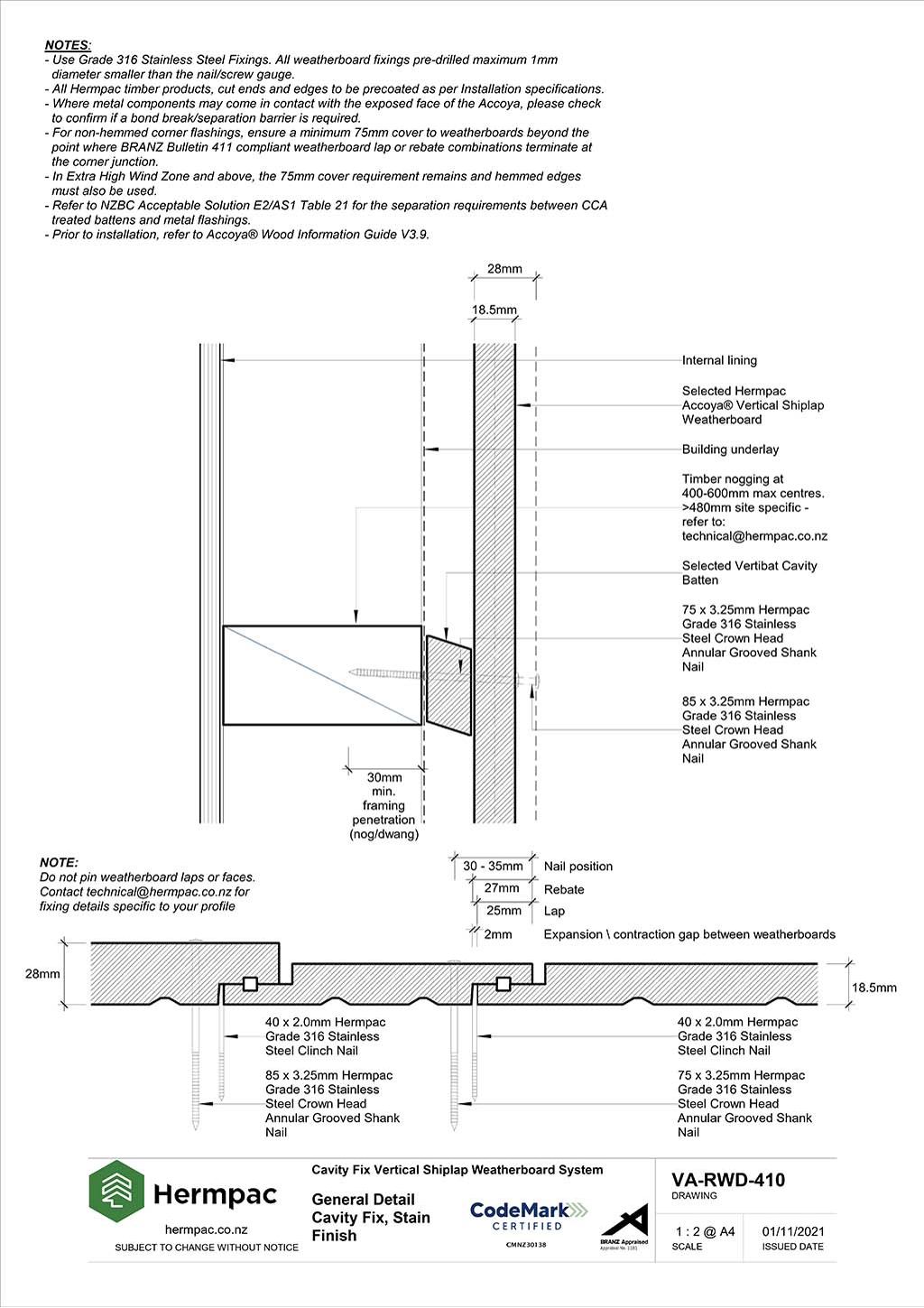

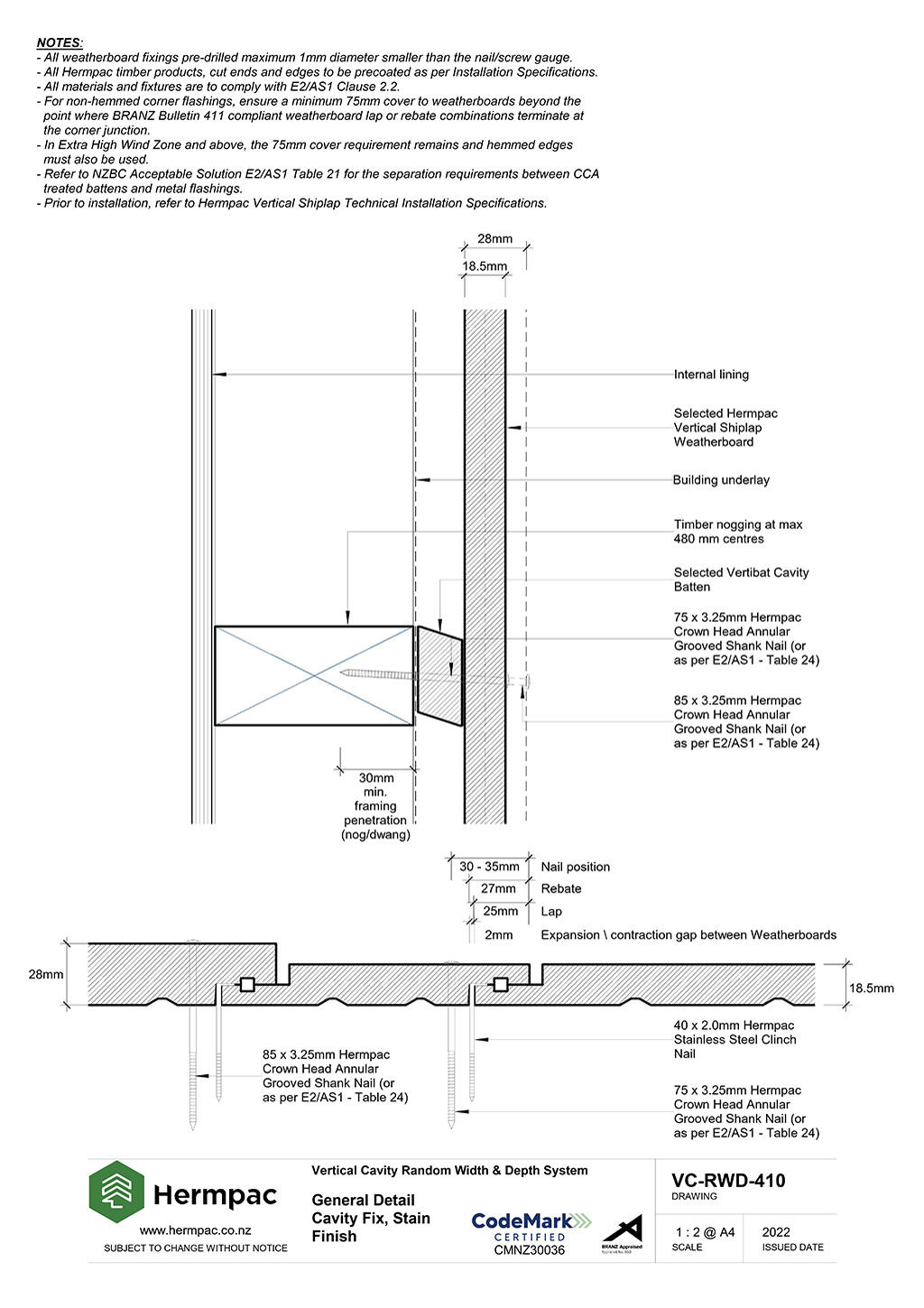

General Detail Cavity Fix, Stain Finish

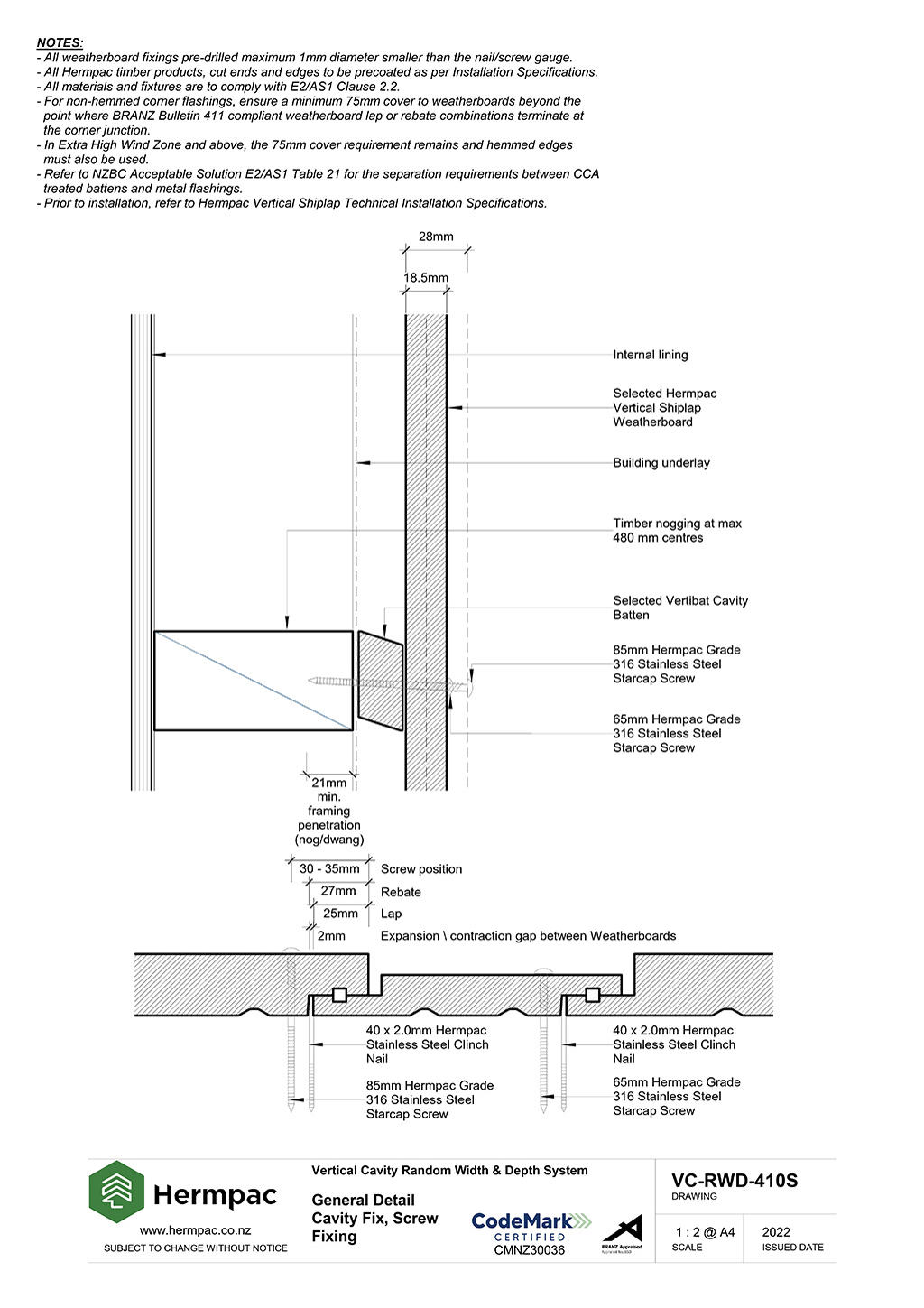

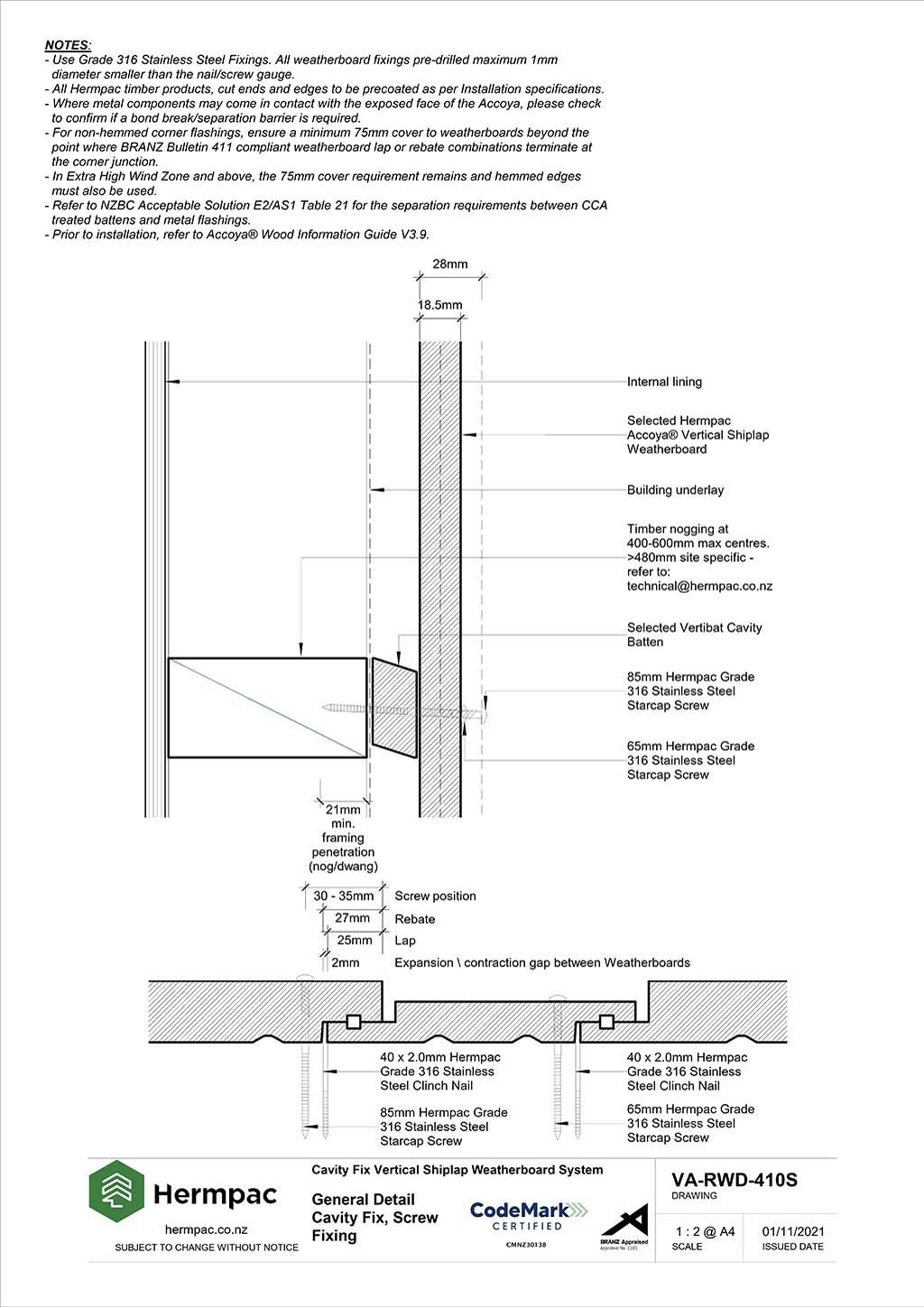

General Detail Cavity Fix, Screw Fixing

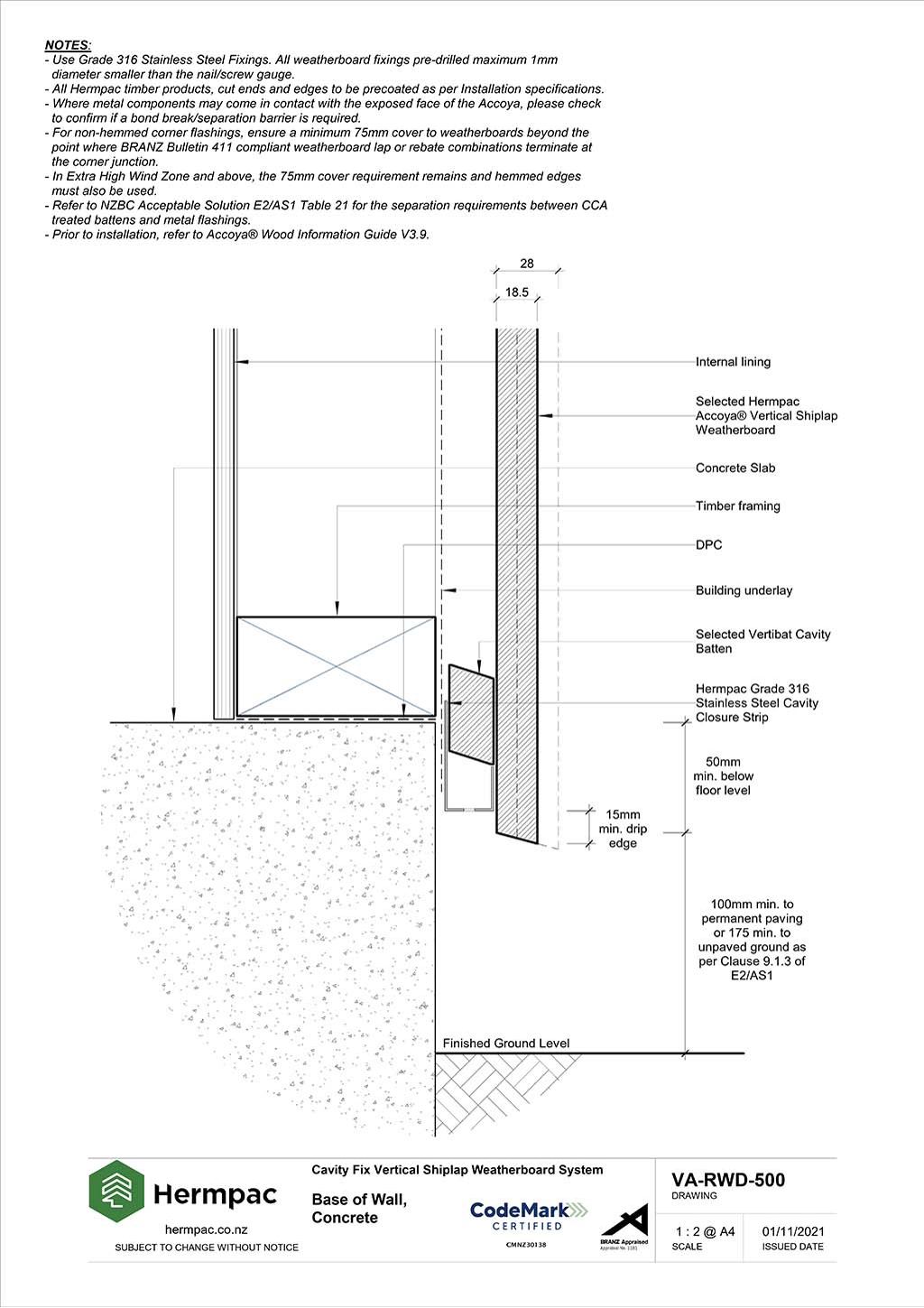

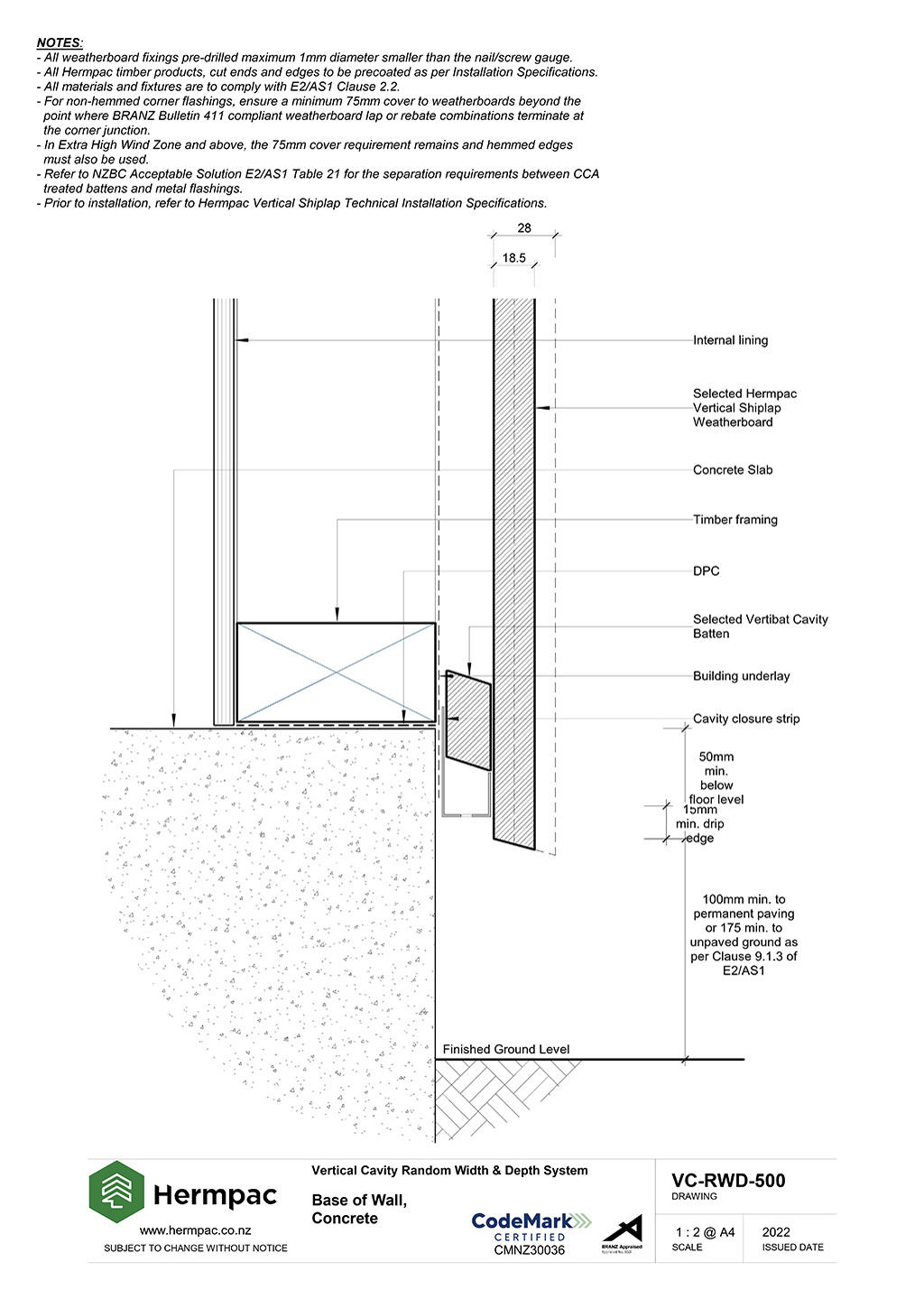

Base of Wall, Concrete

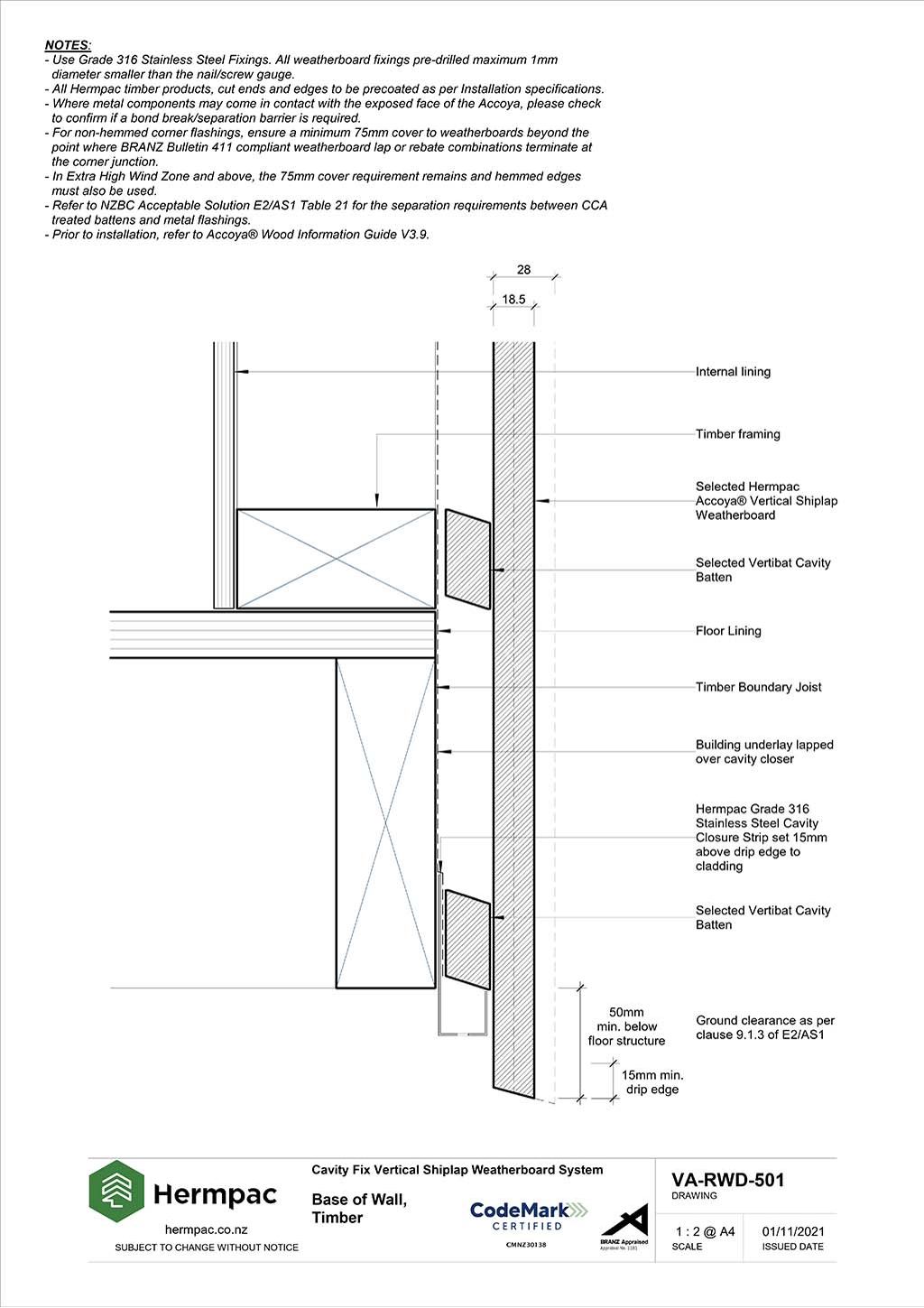

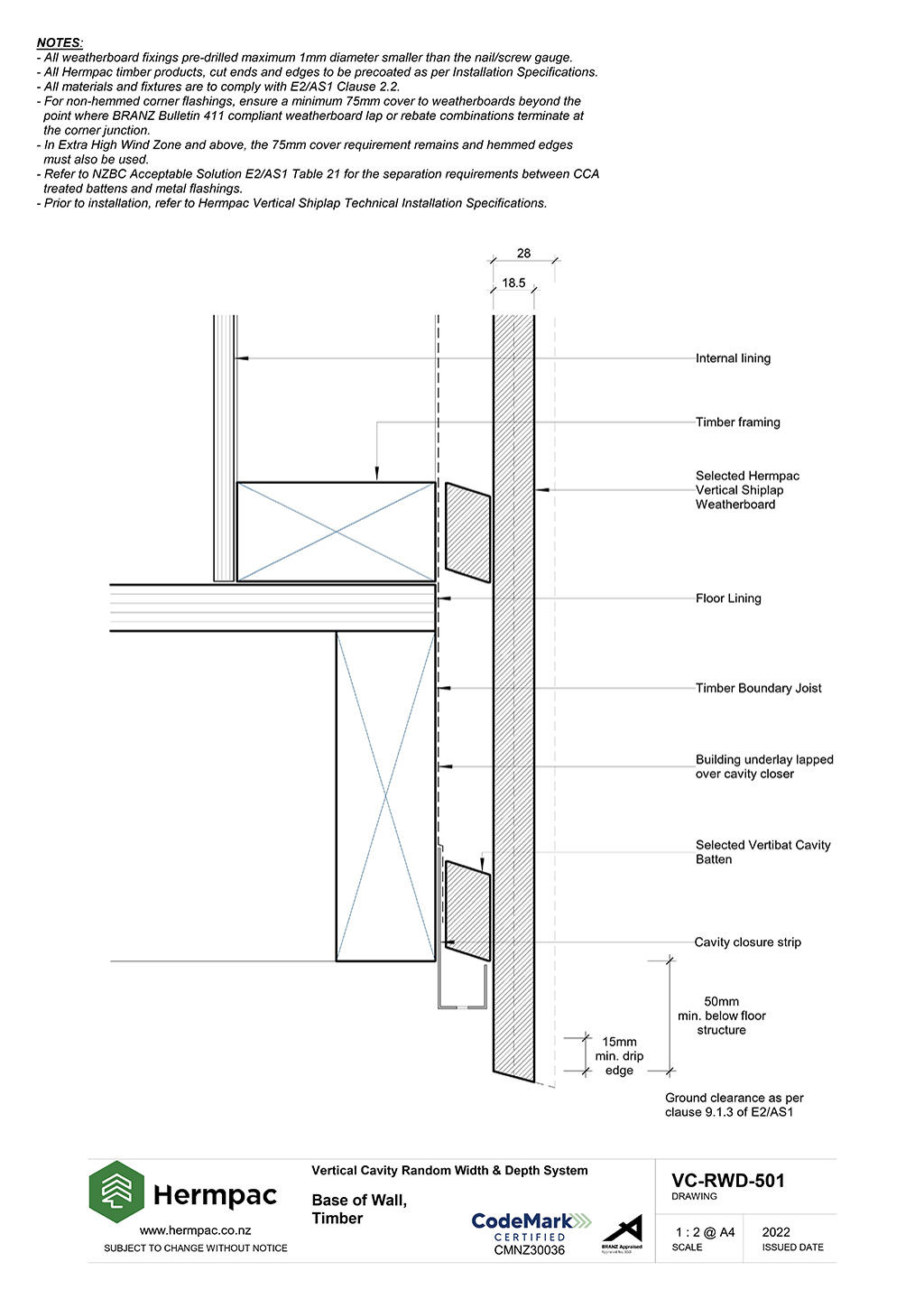

Base of Wall, Timber

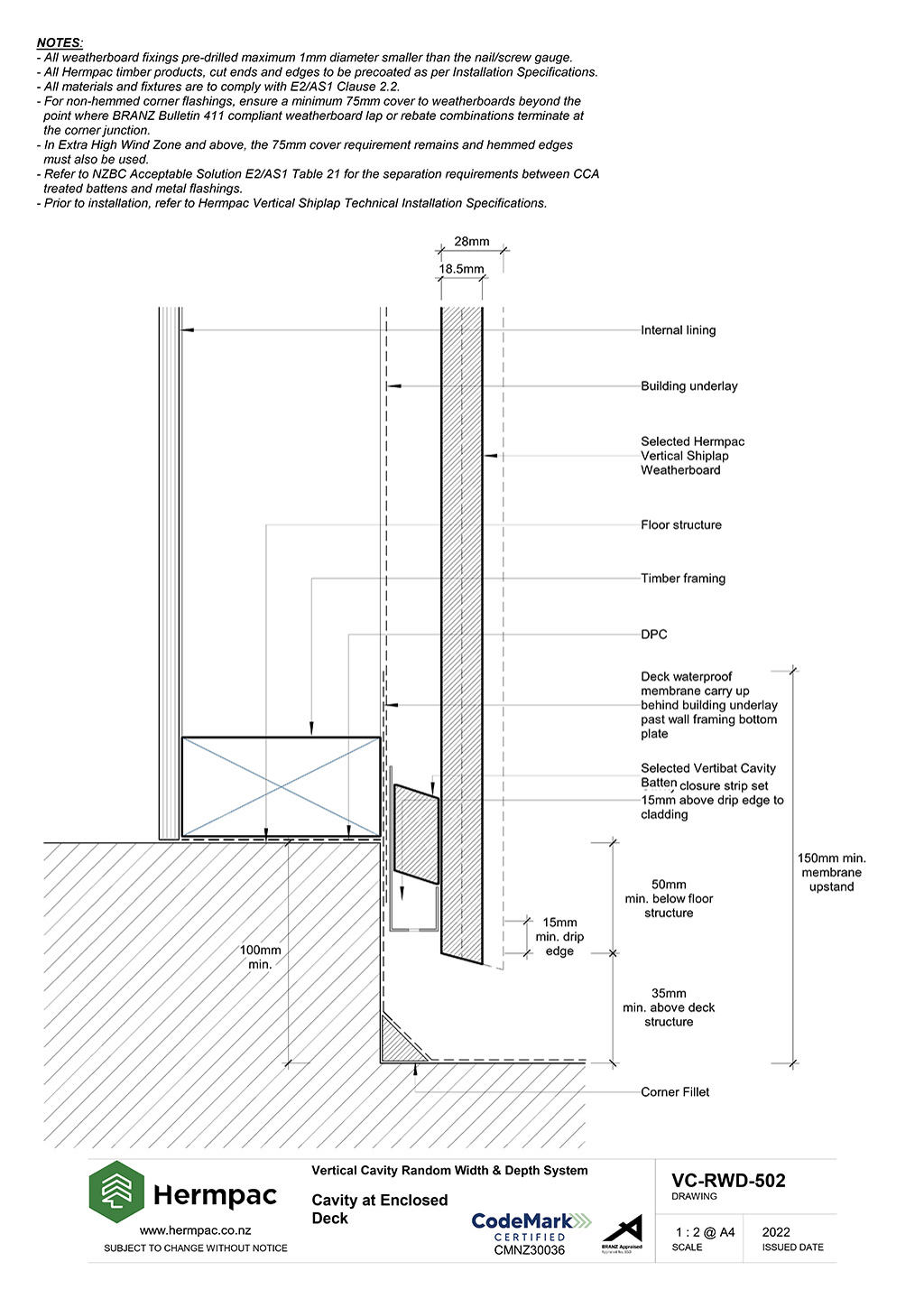

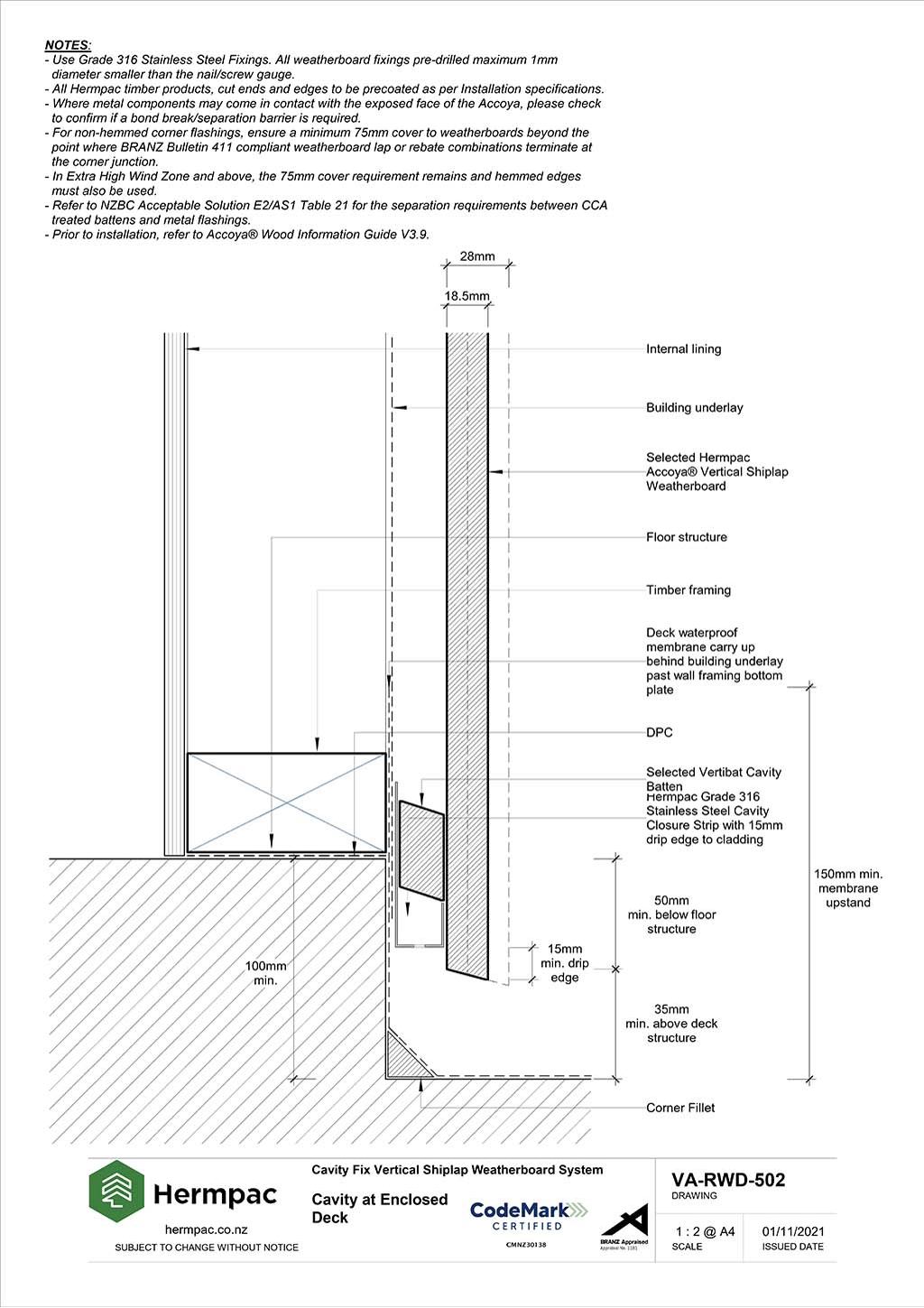

Cavity at Enclosed Deck
Roof/Wall Junction

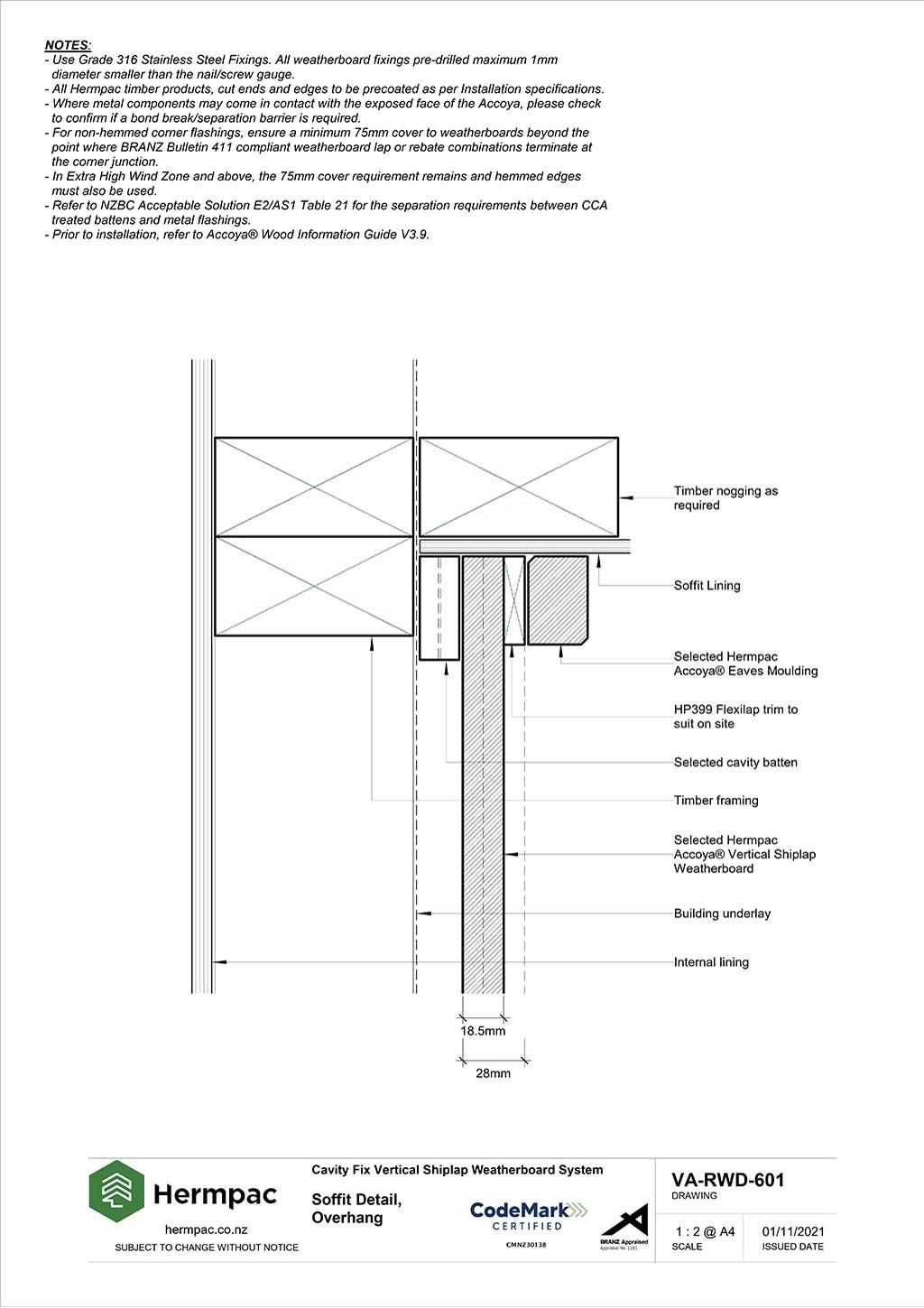

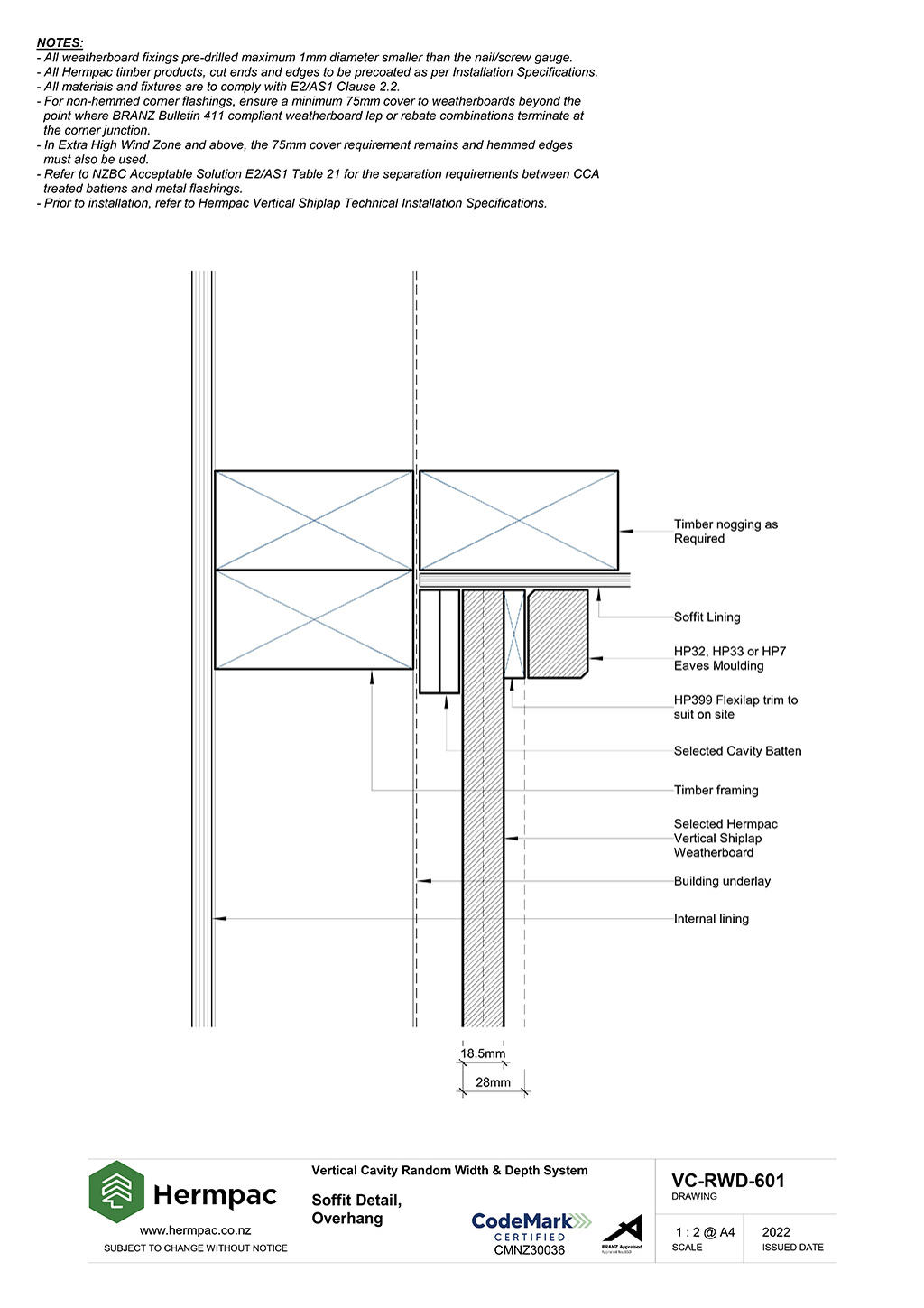

Soffit Detail, Overhang

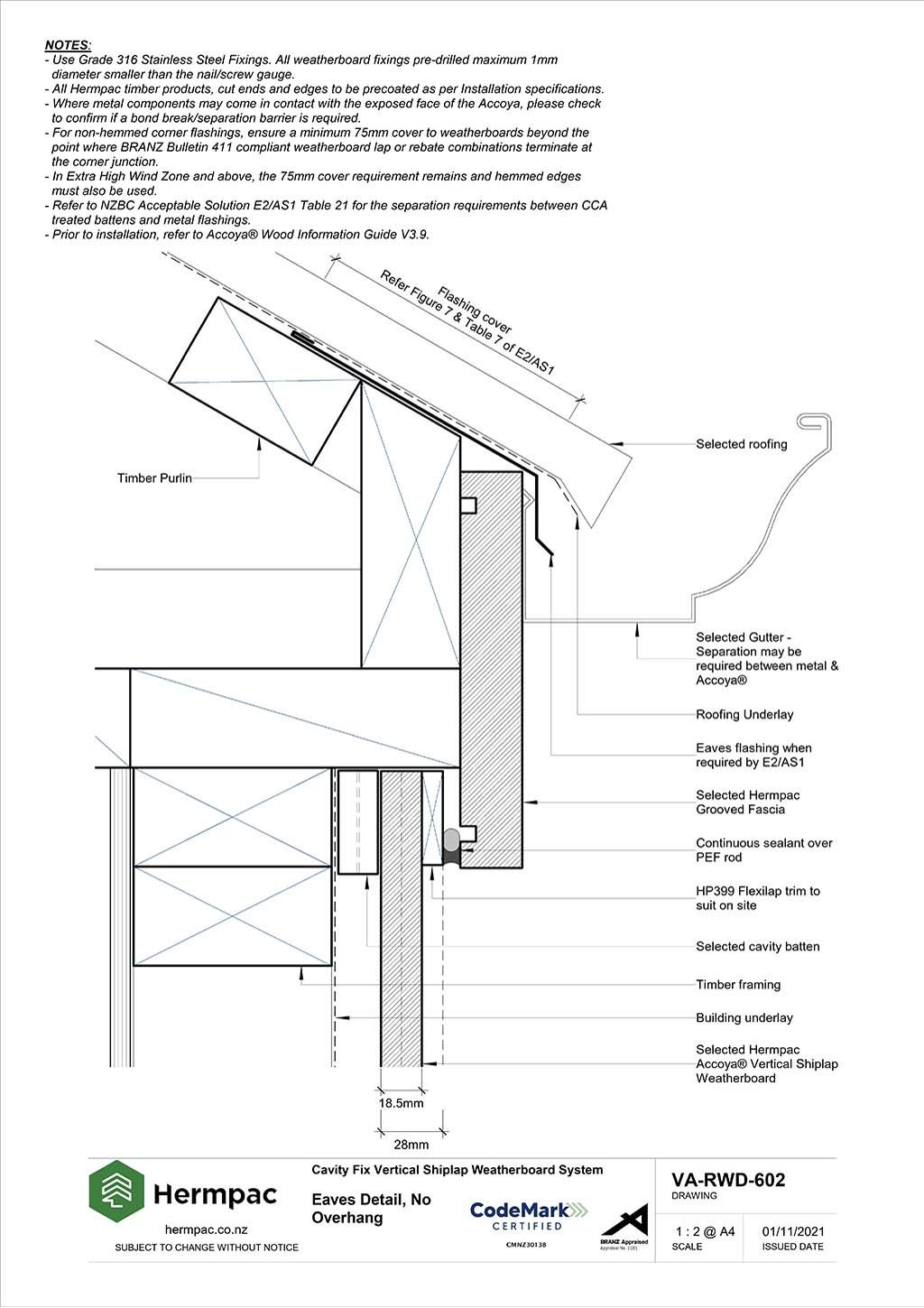

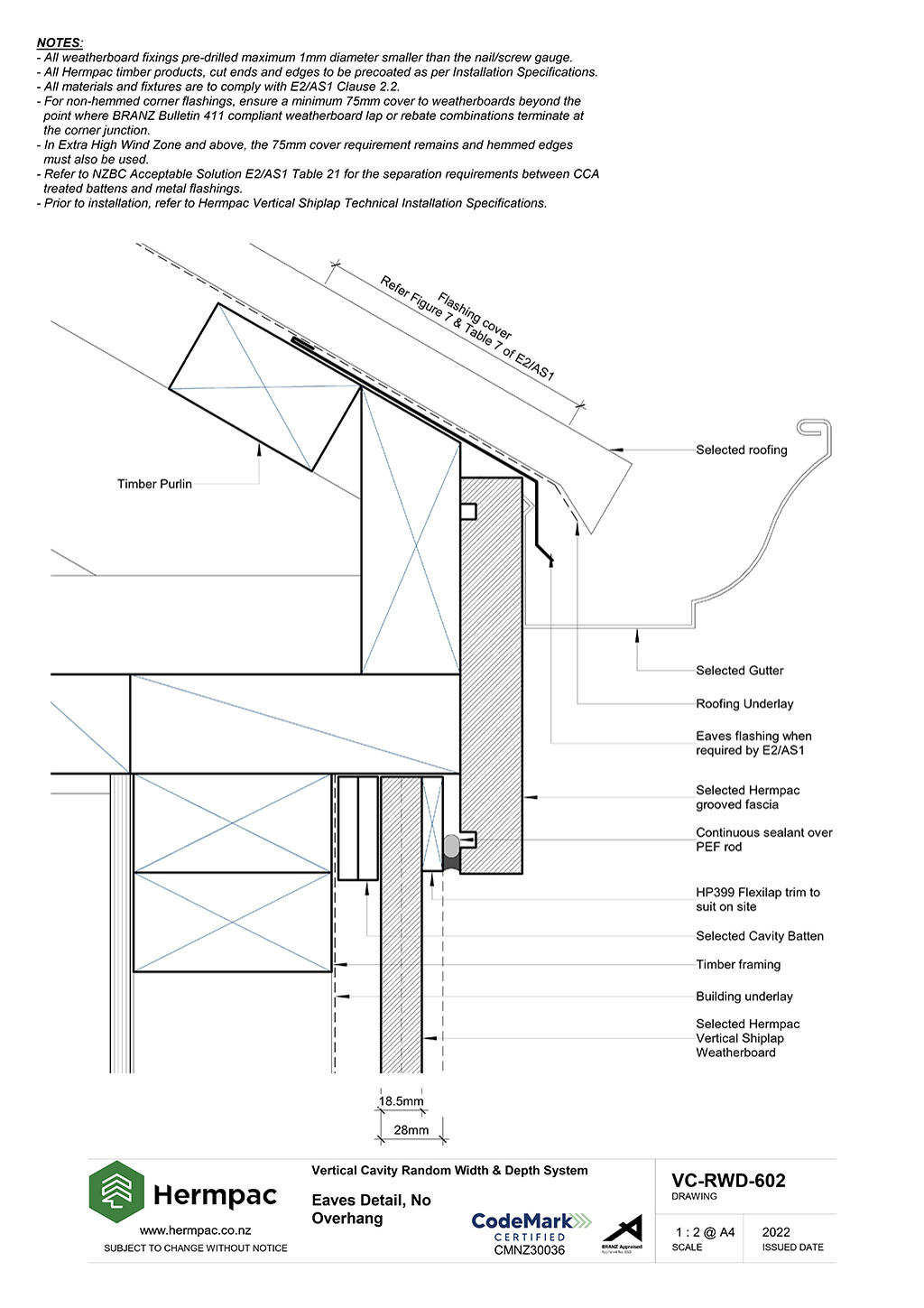

Eaves Detail, No Overhang

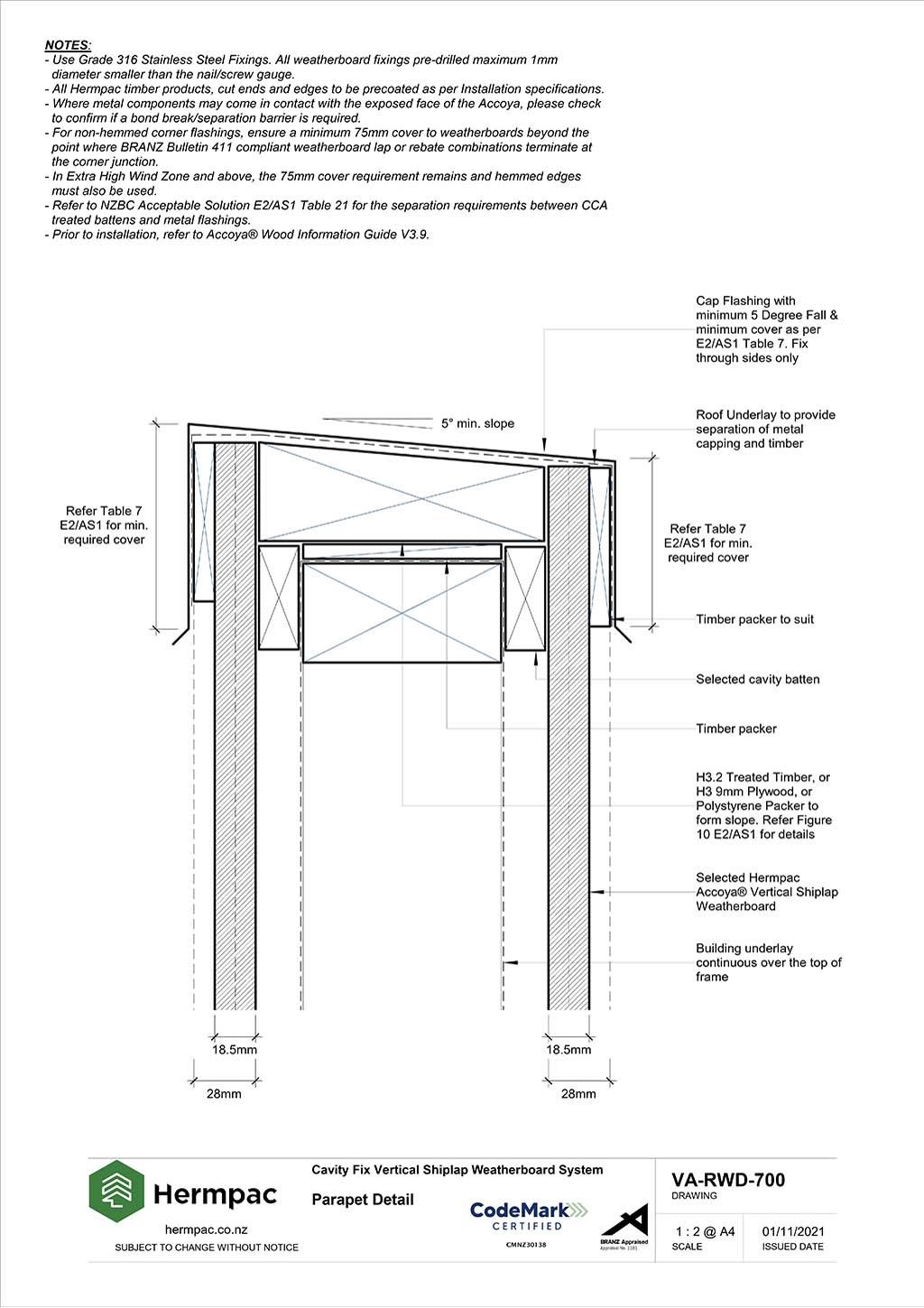

Parapet Detail

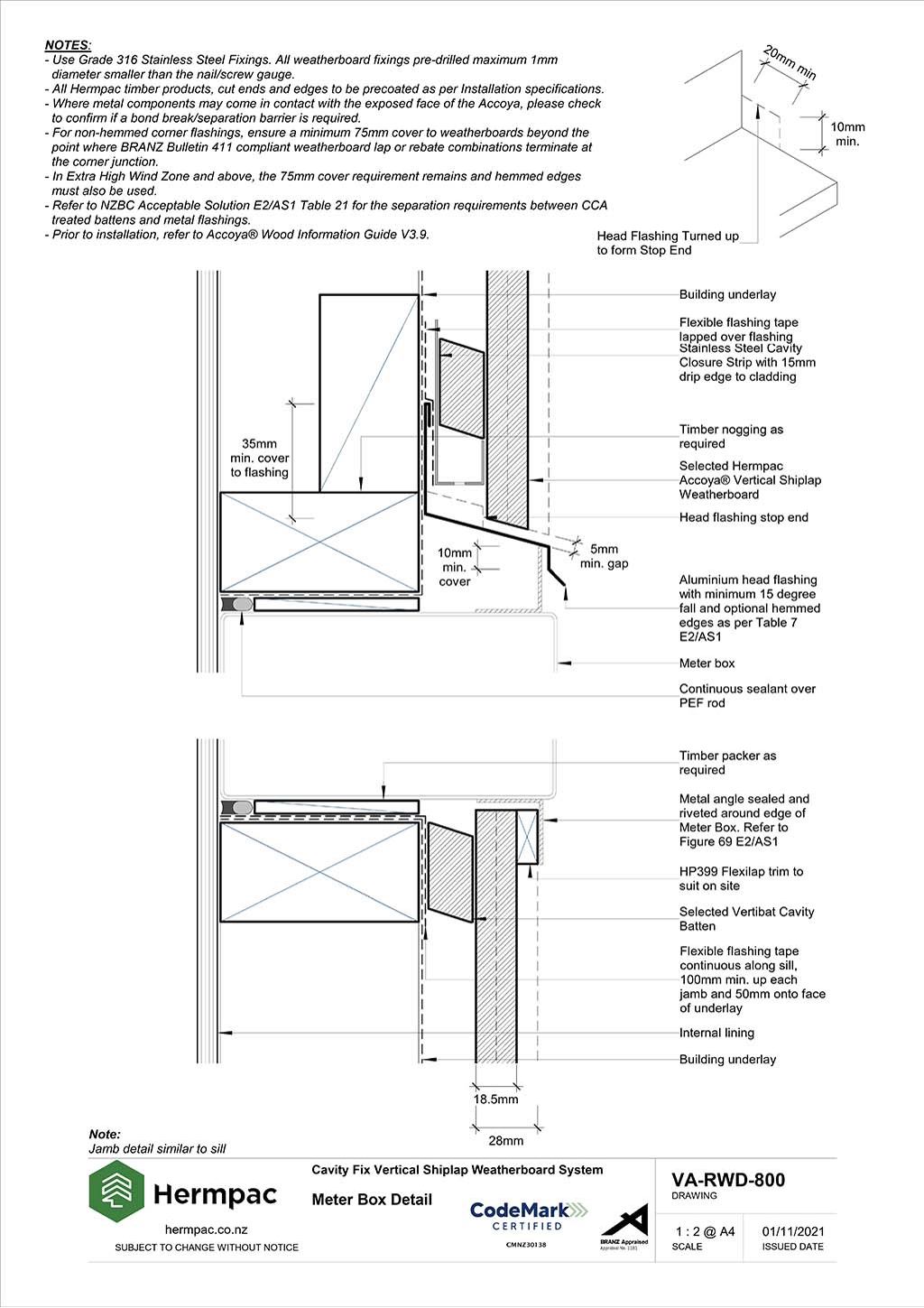

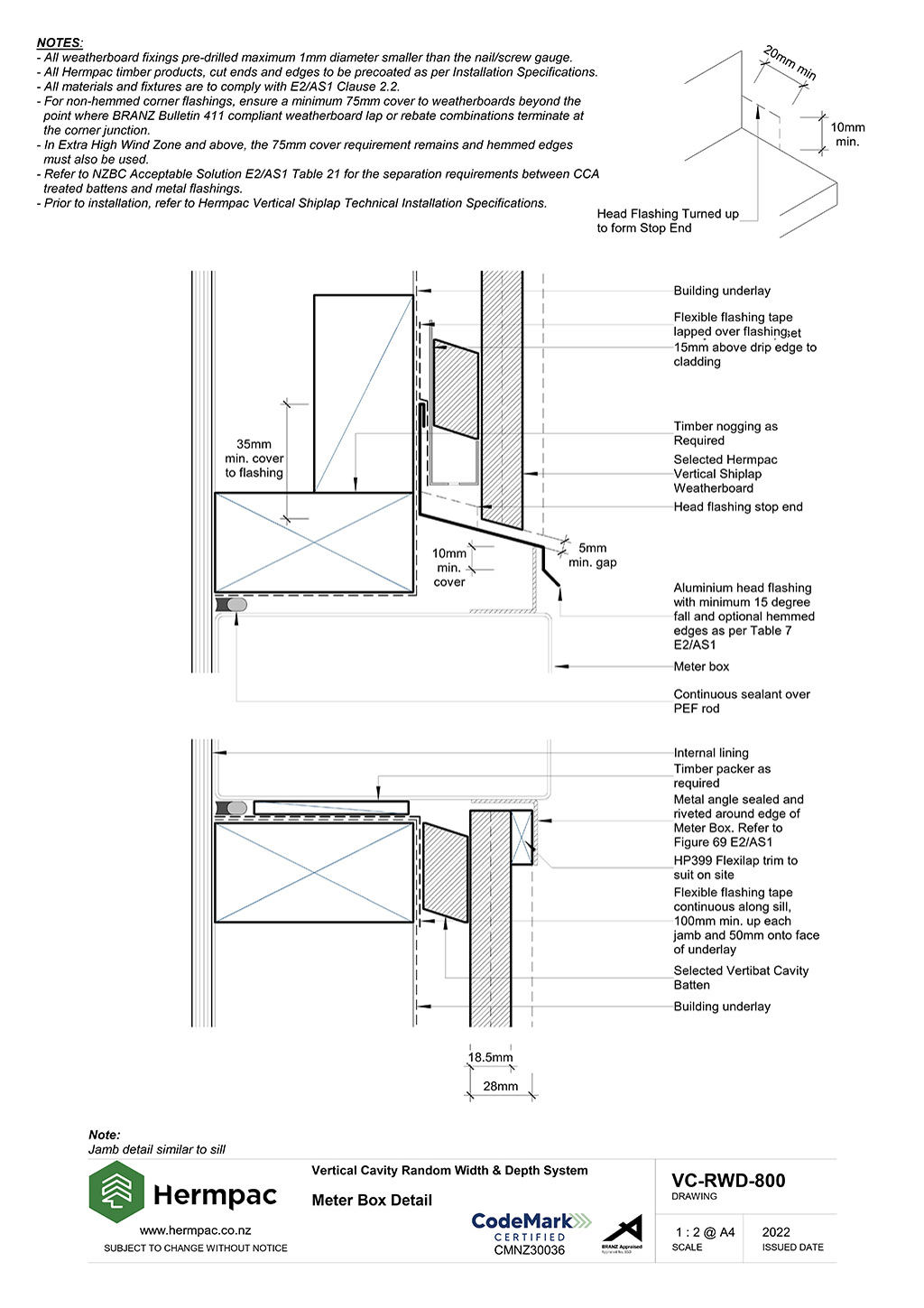

Meter Box Detail

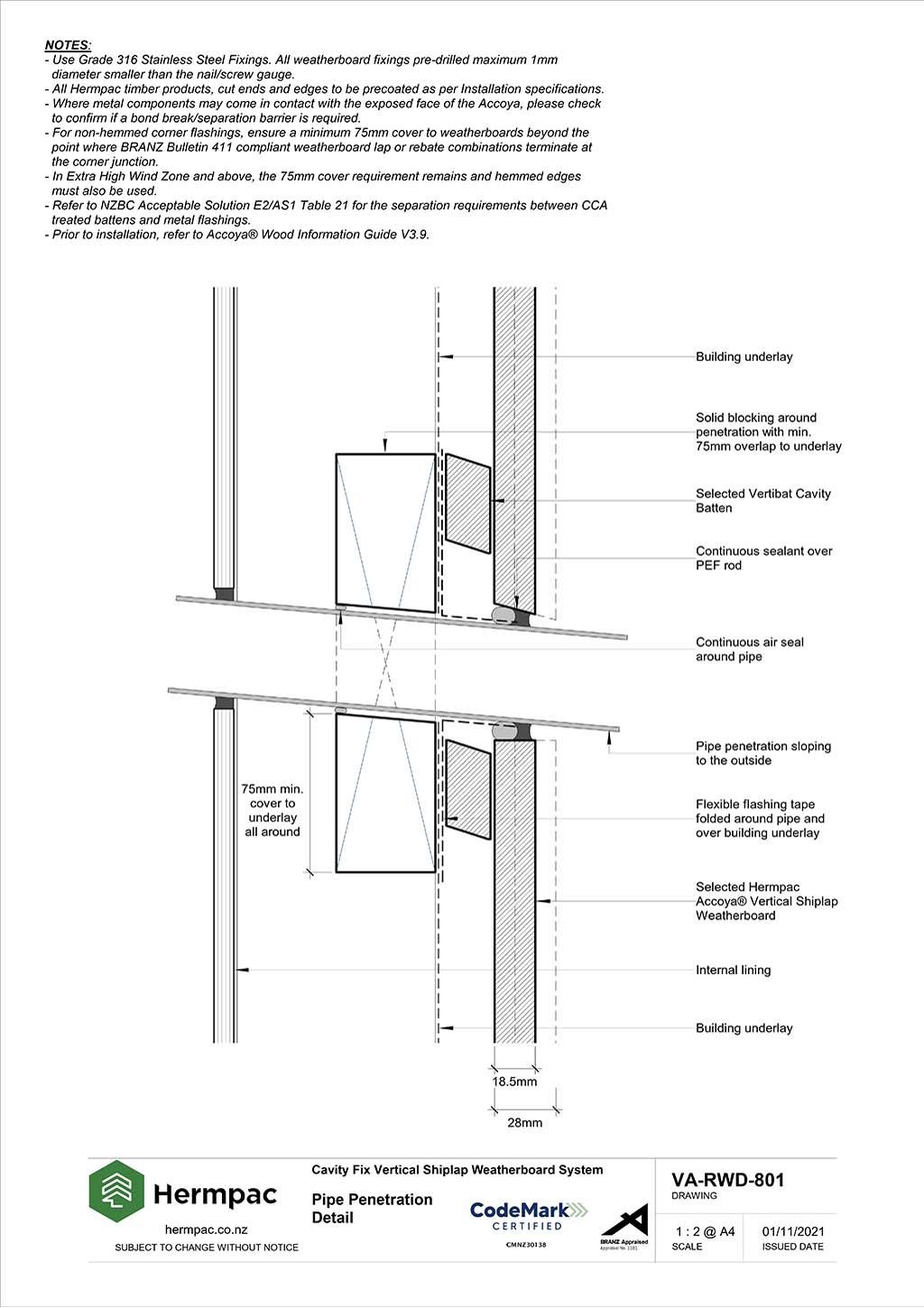

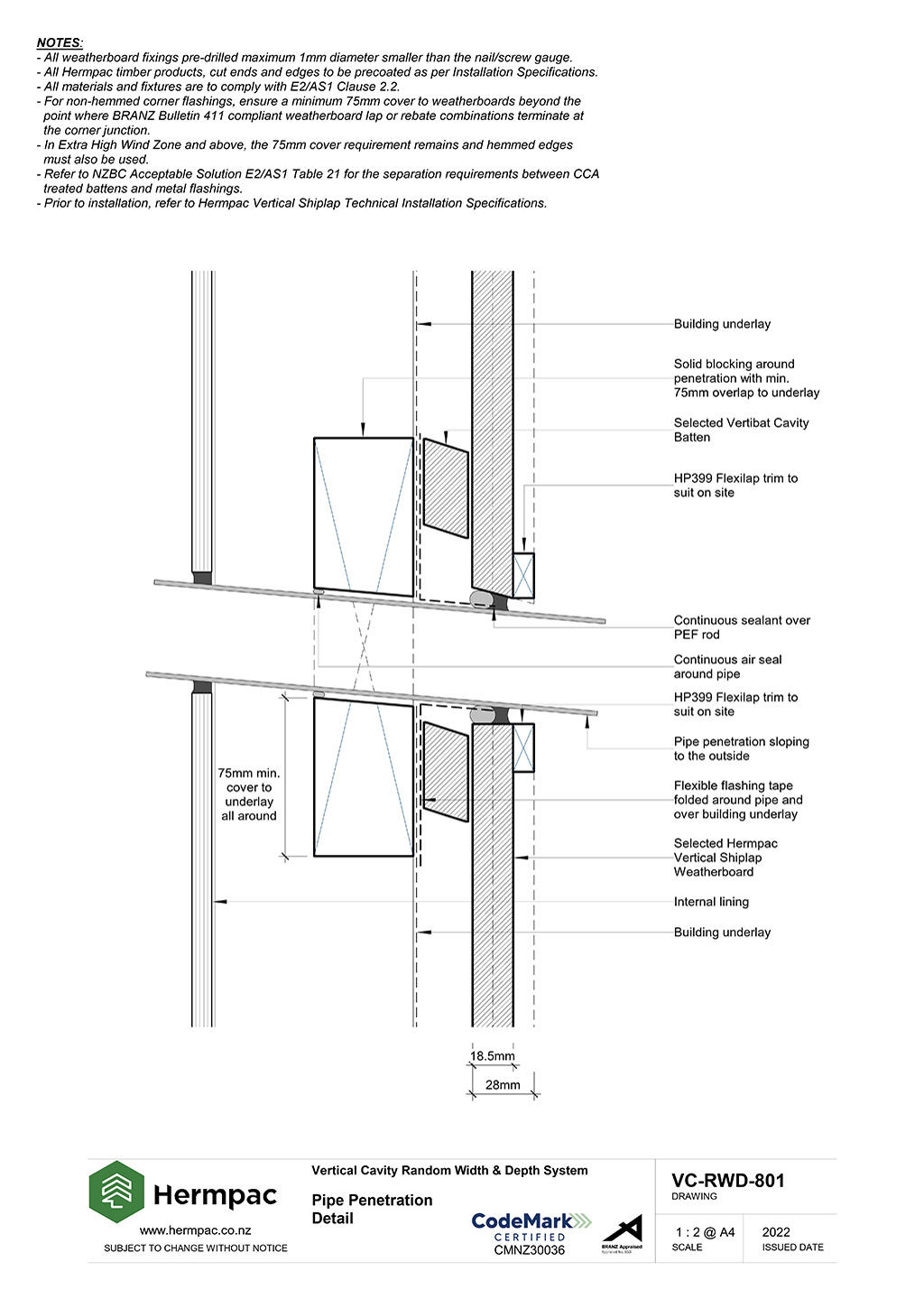

Pipe Penetration Detail

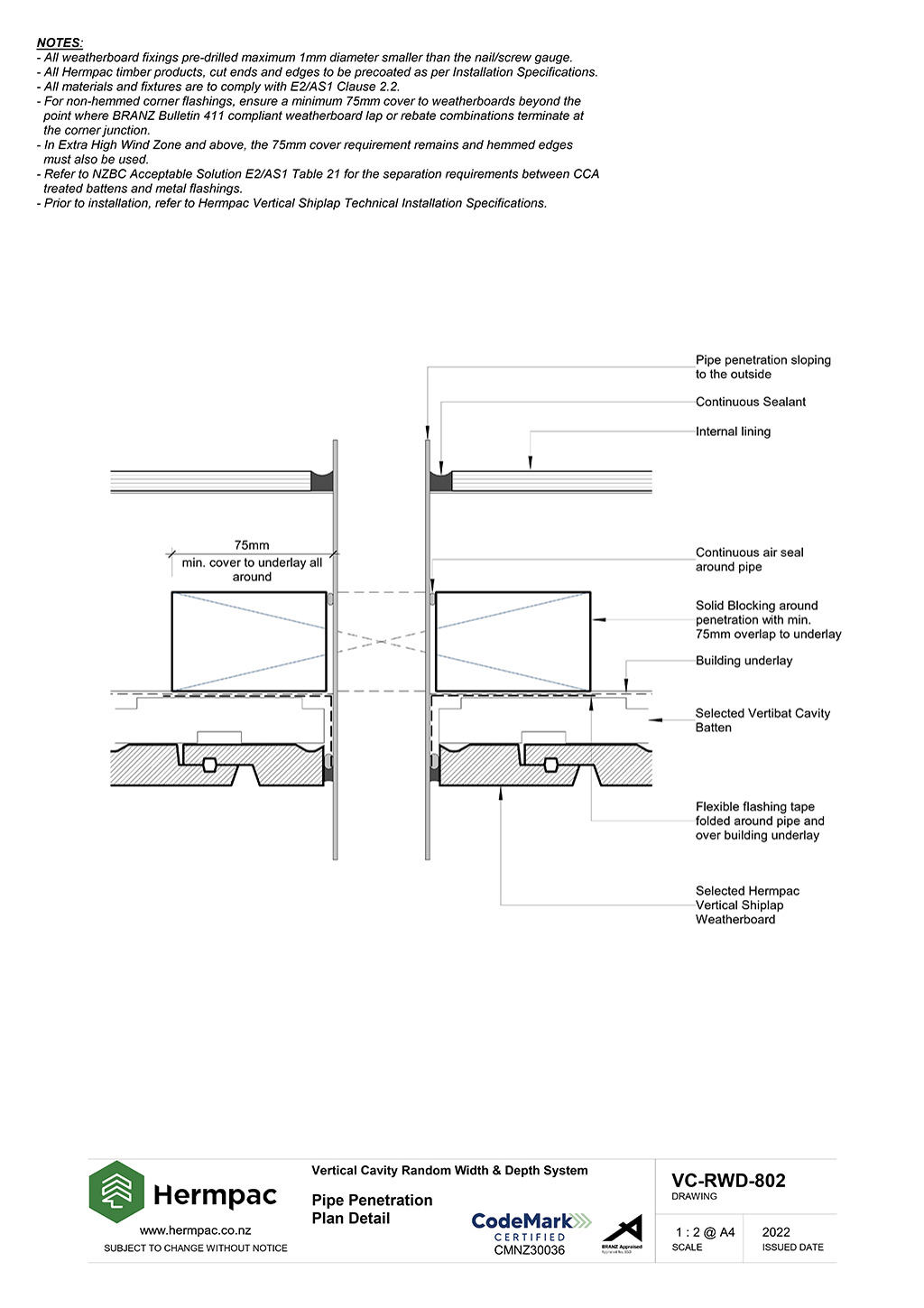

Pipe Penetration Plan Detail

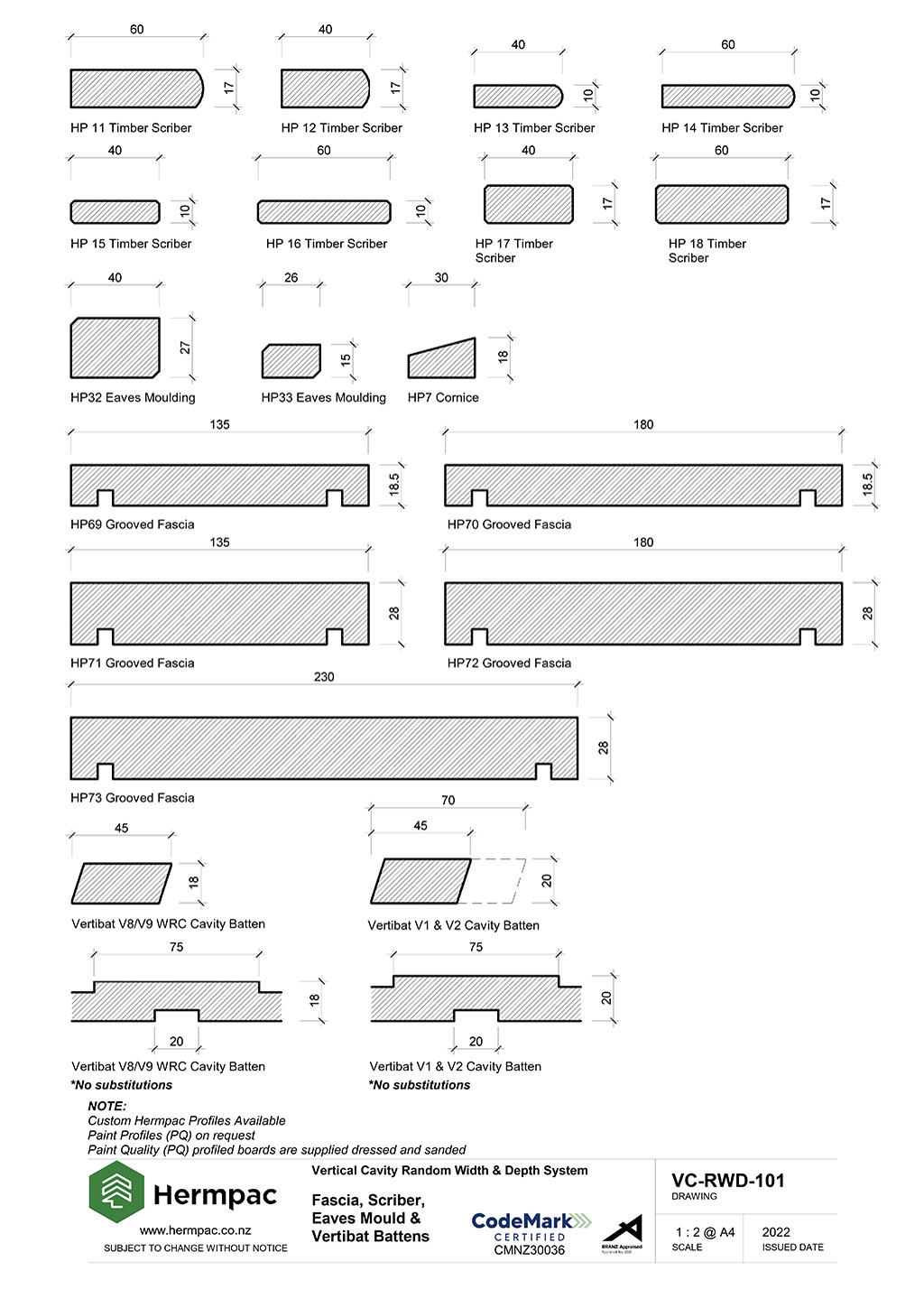

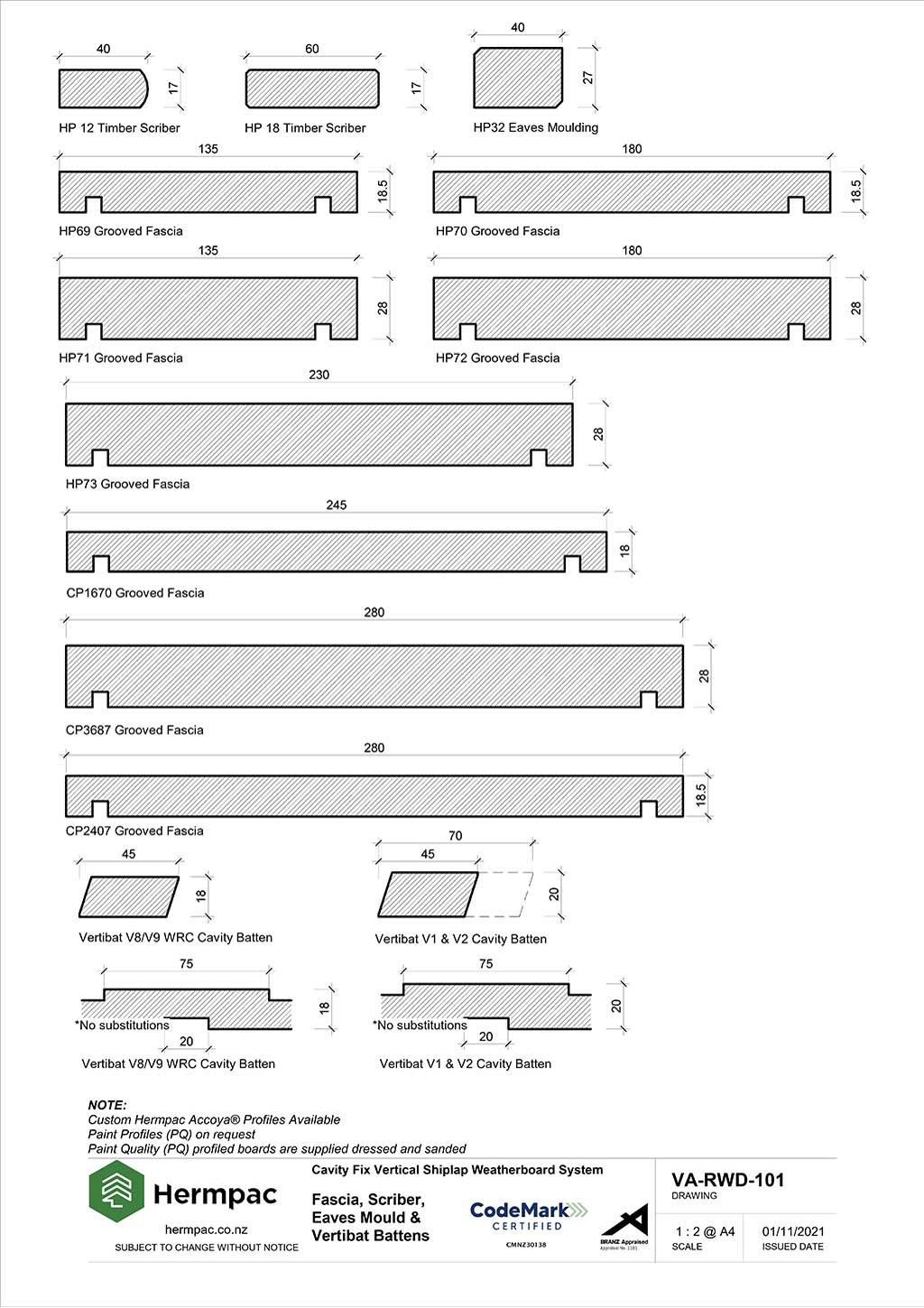

Fascia, Scriber, Eaves Mould & Vertibat Battens

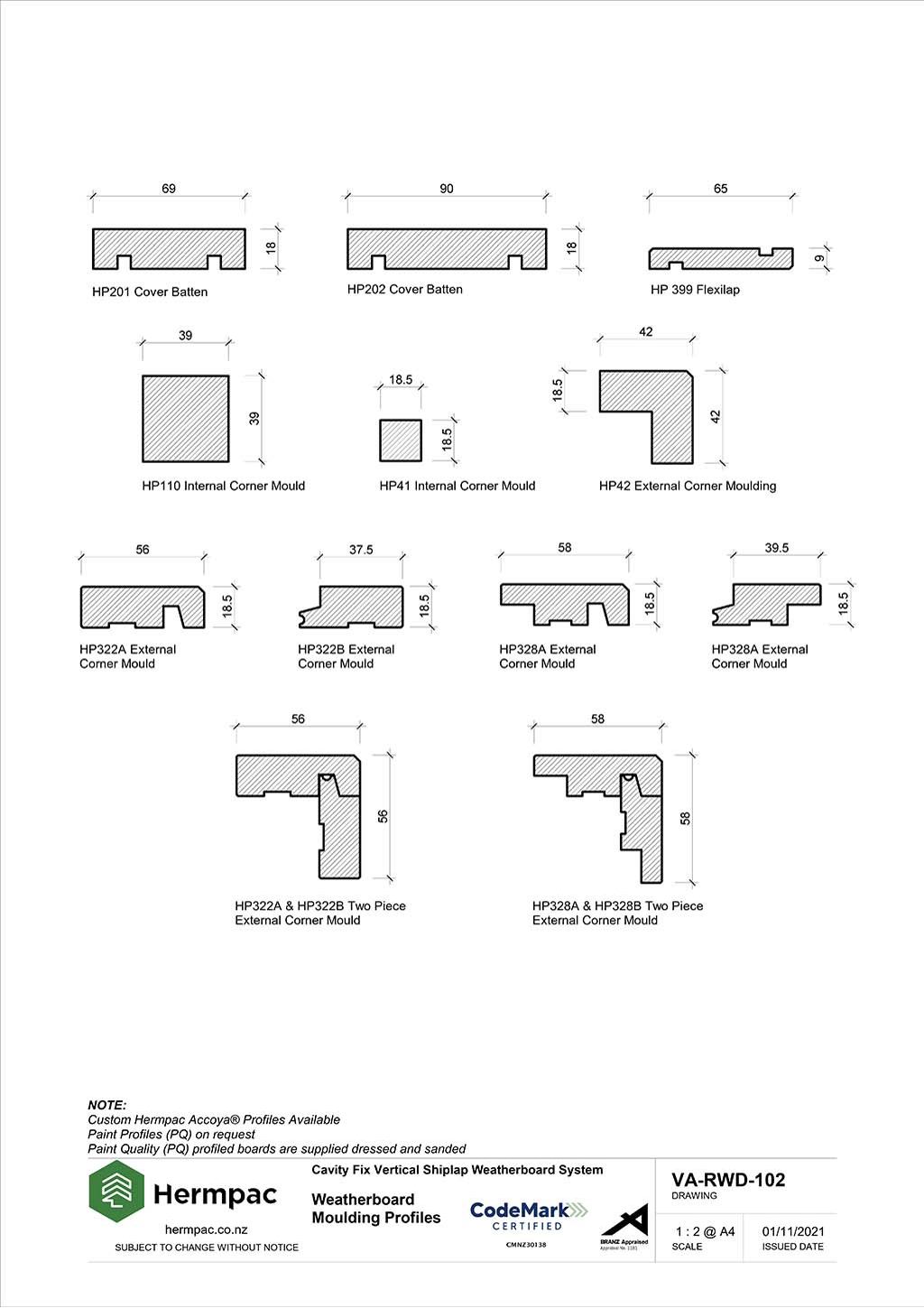

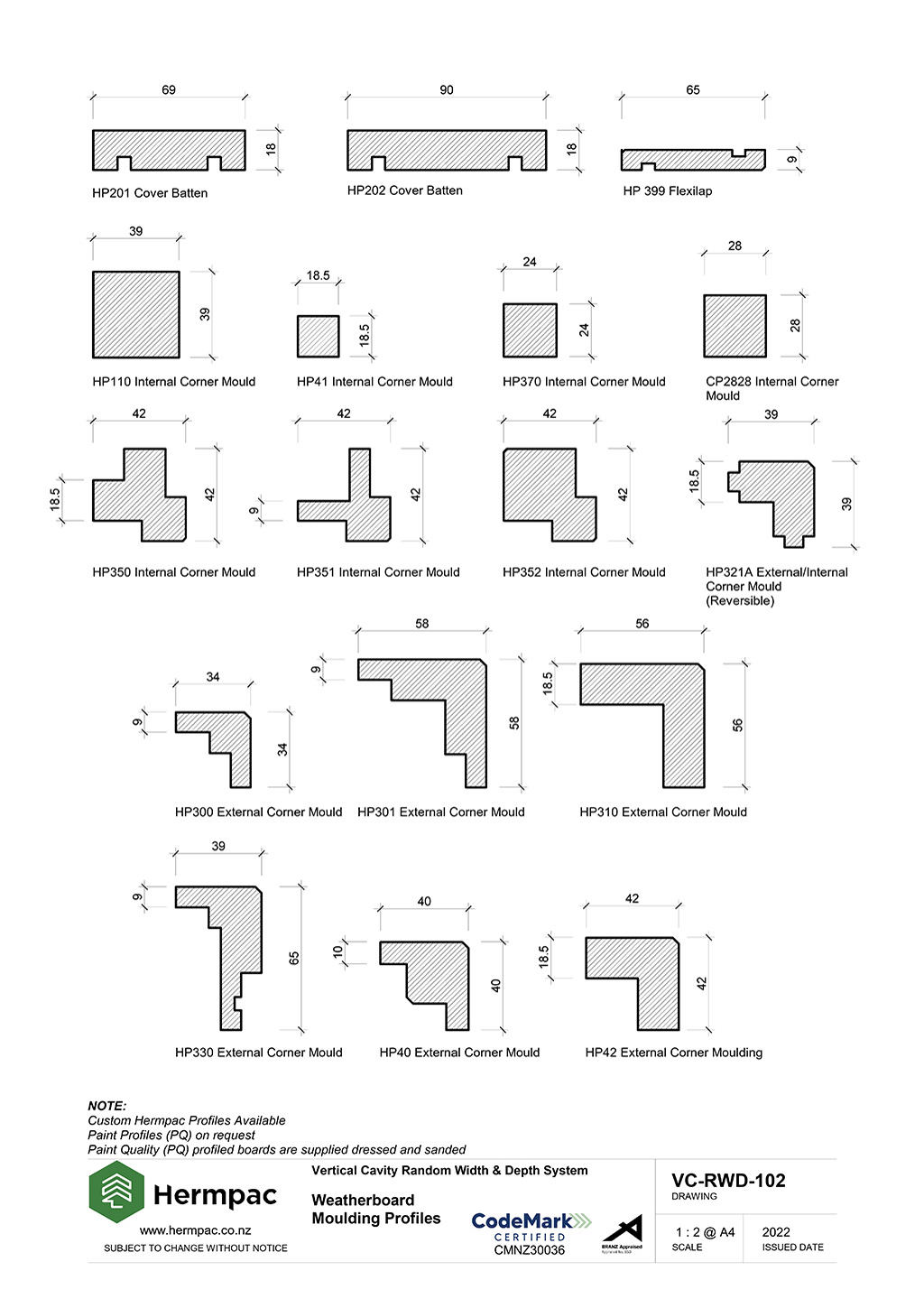

Weatherboard Moulding Profiles

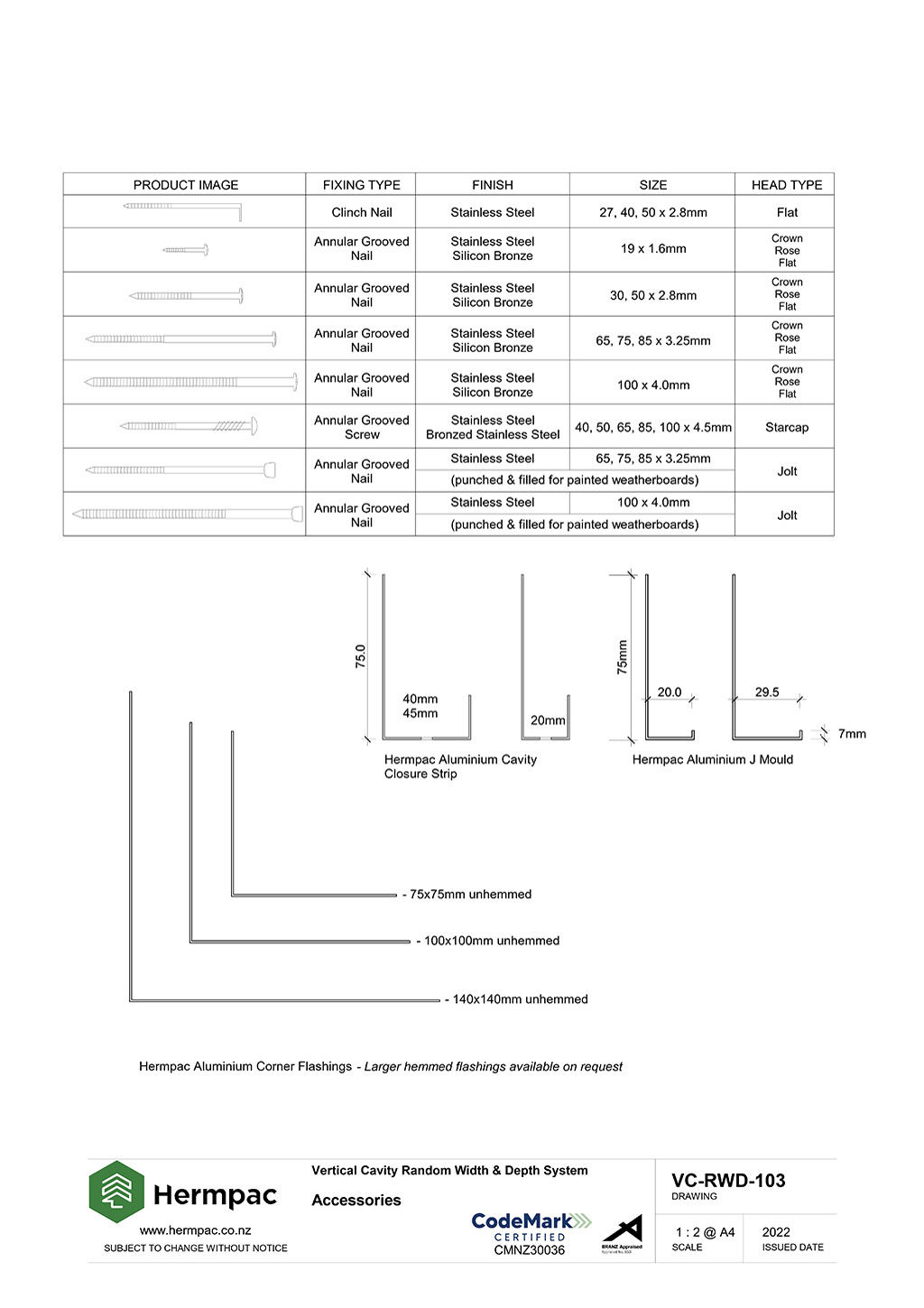

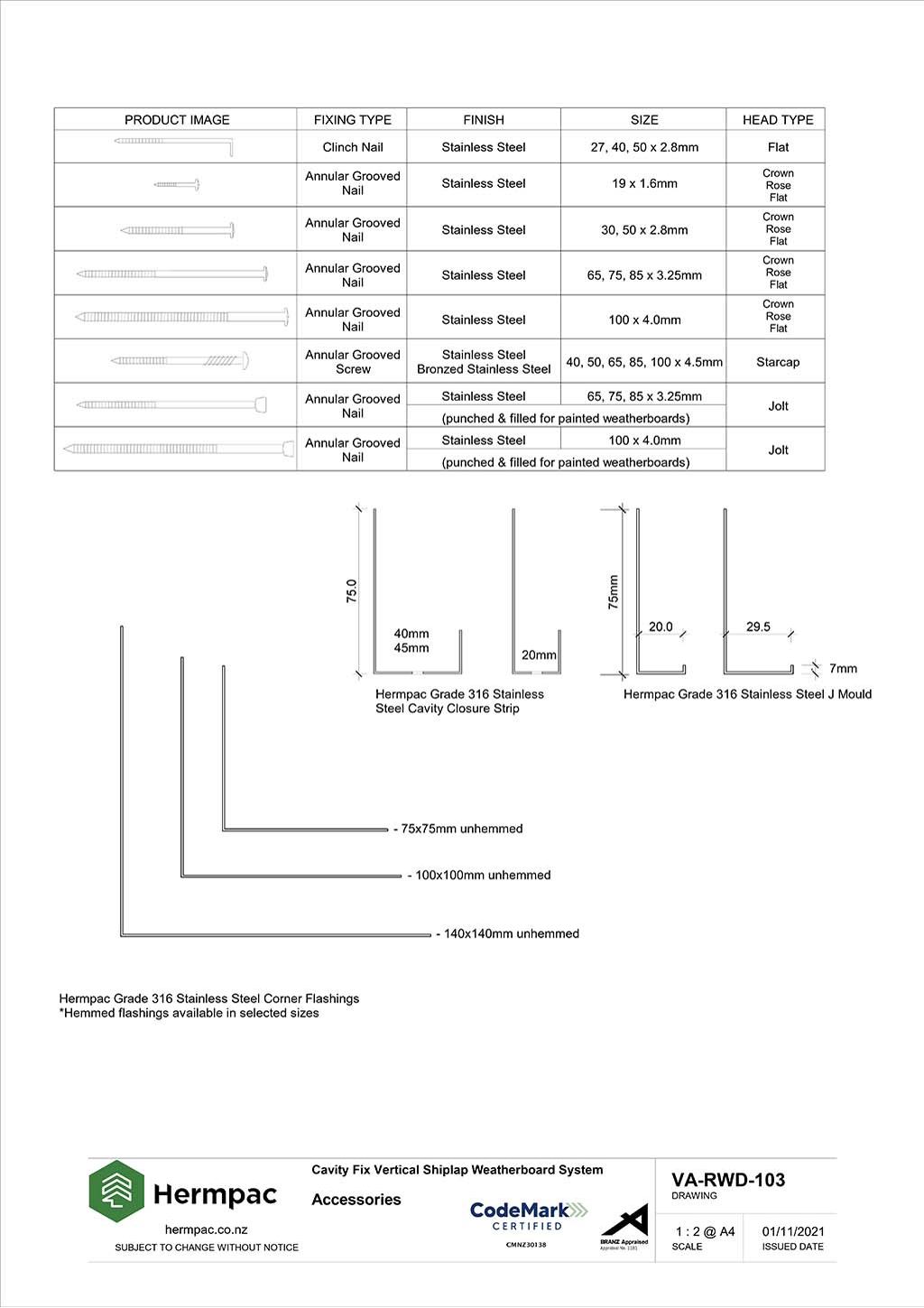

Accessories
Window Head Detail, Aluminium Joinery

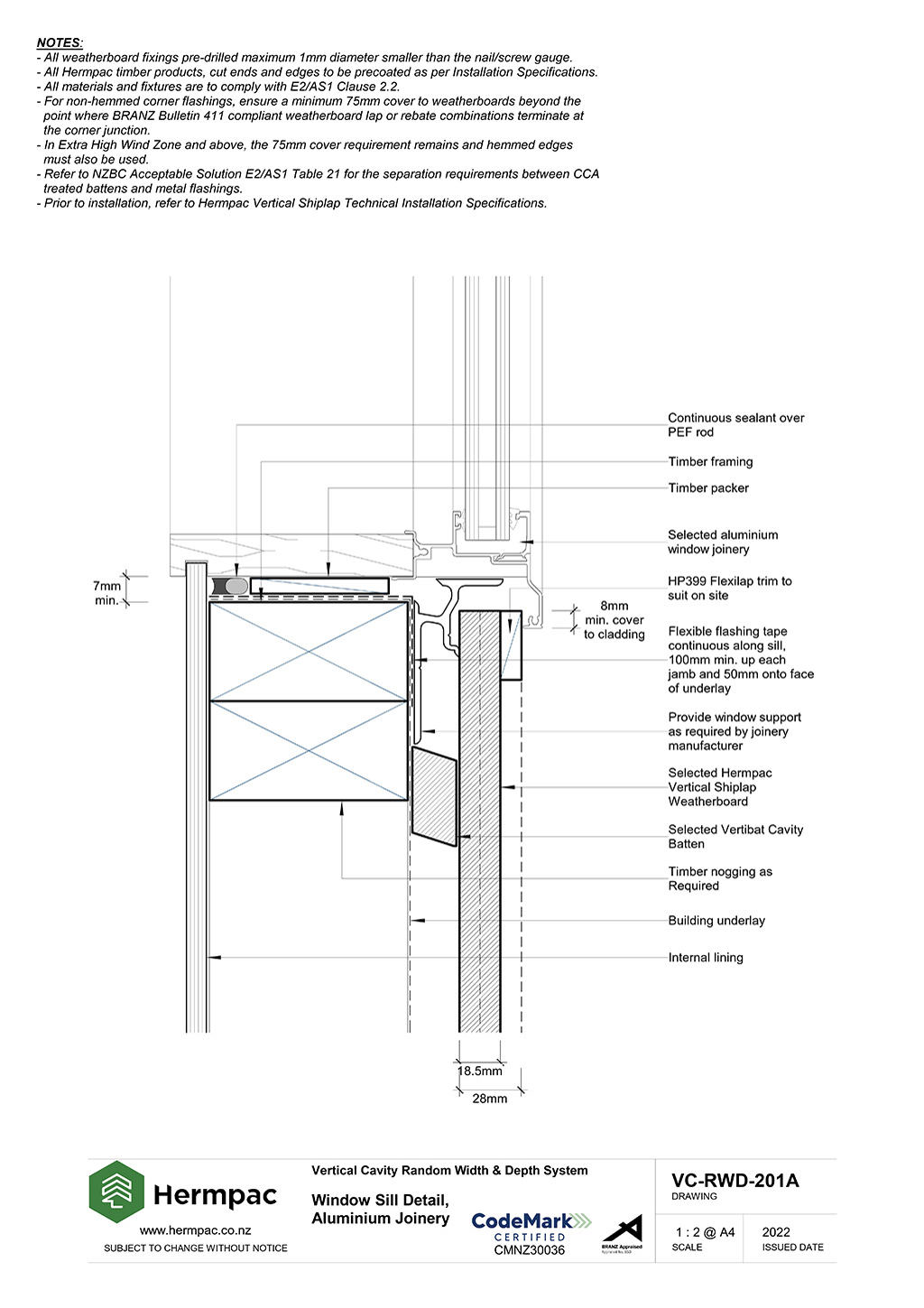

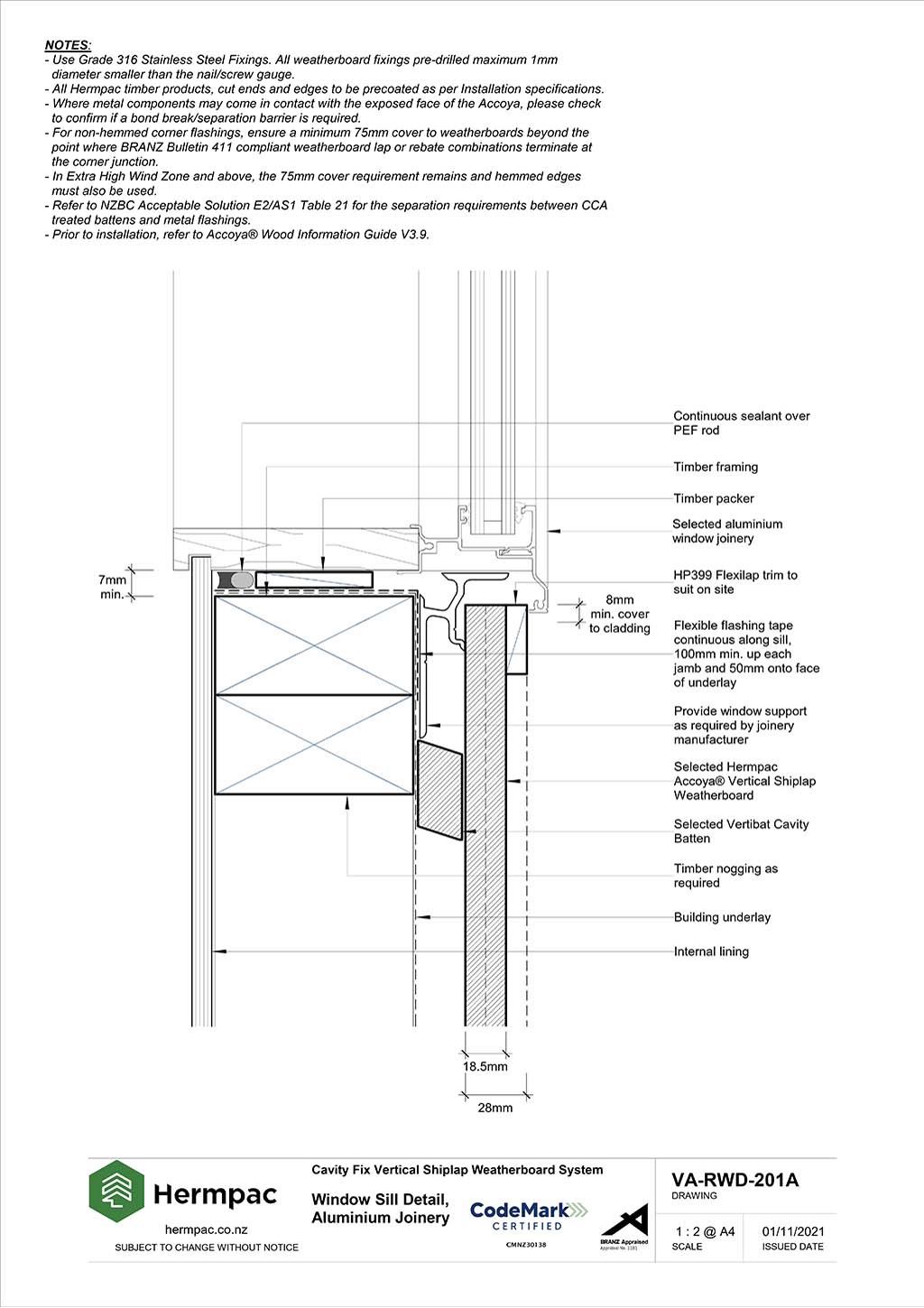

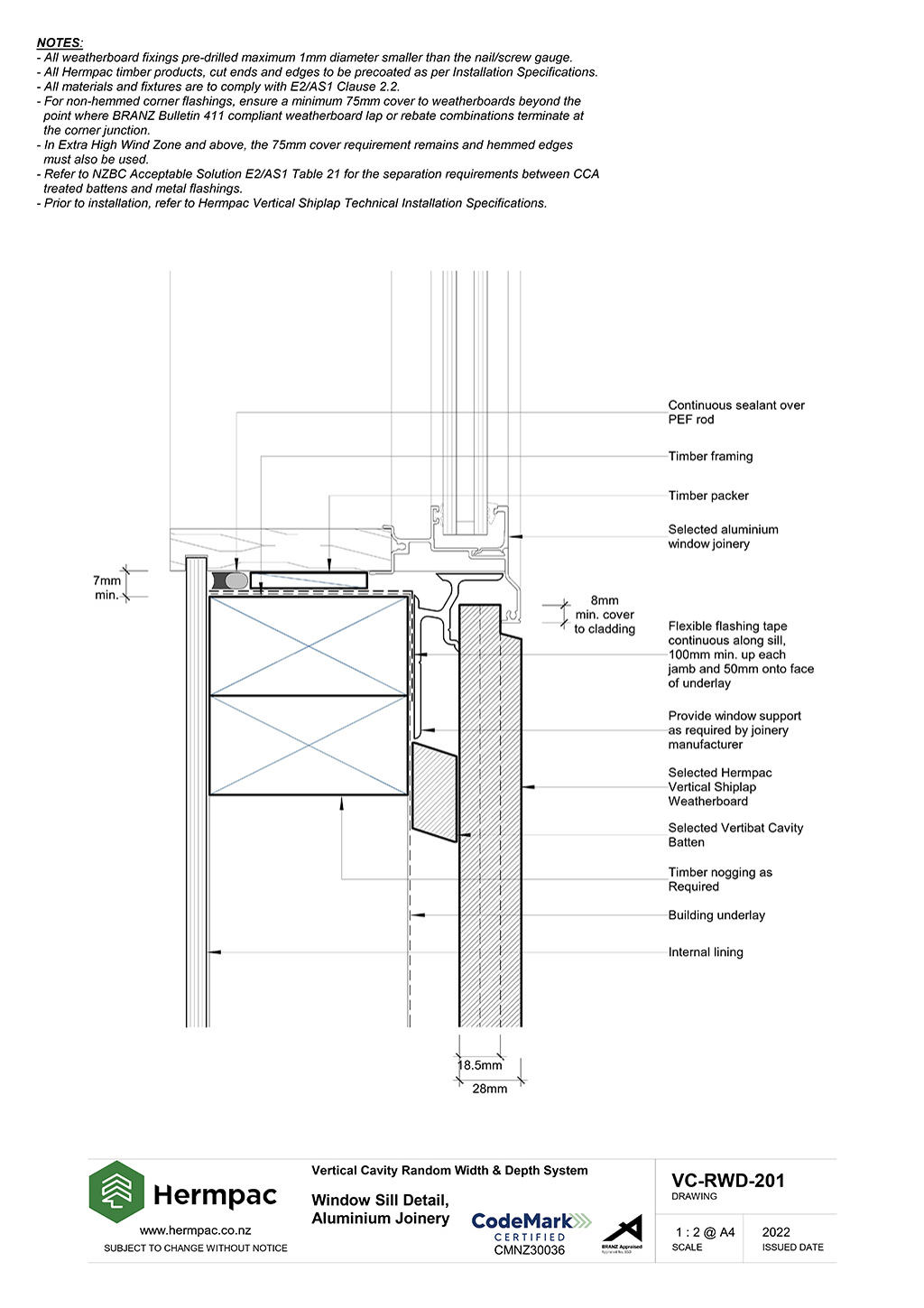

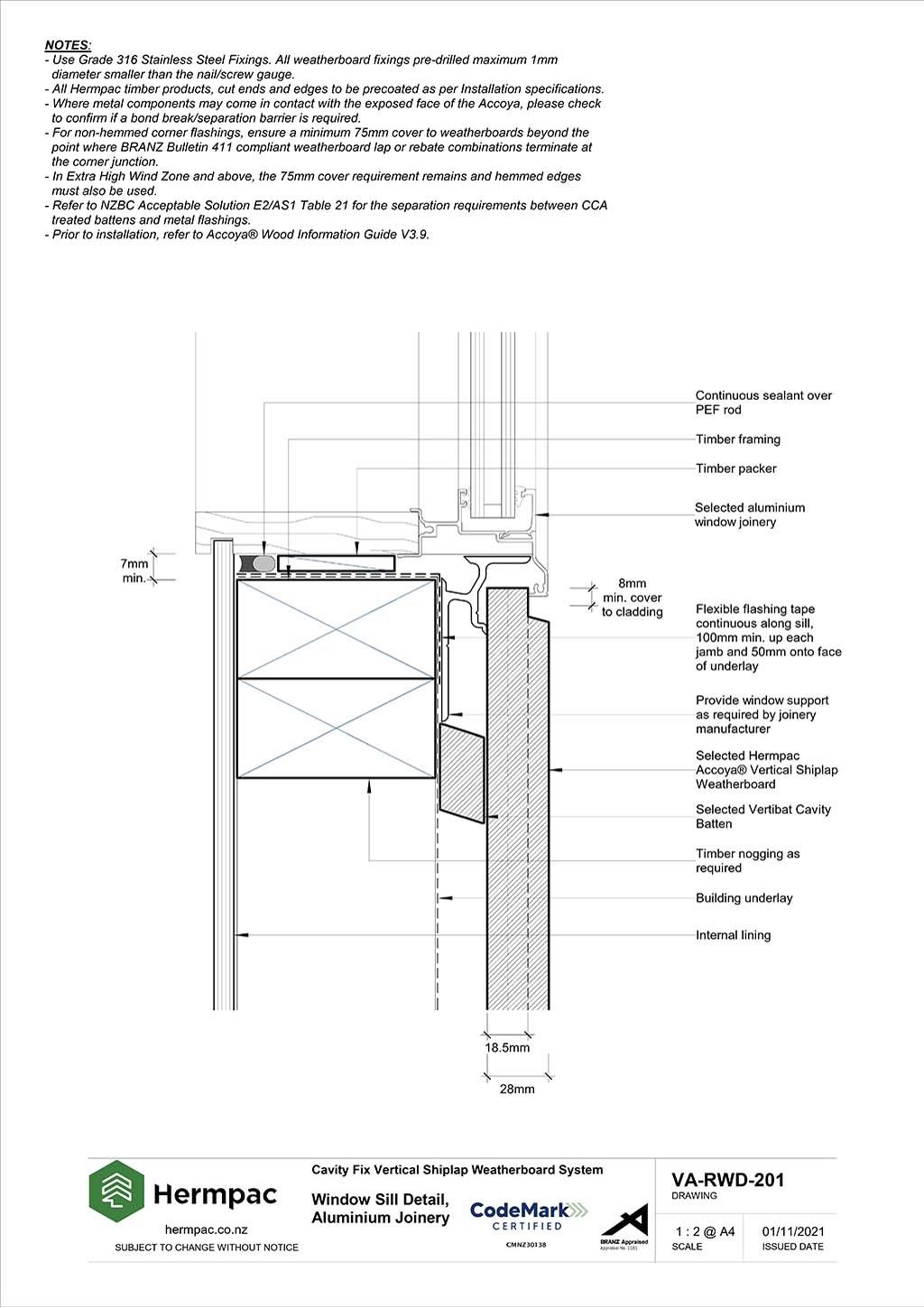

Window Sill Detail, Aluminium Joinery

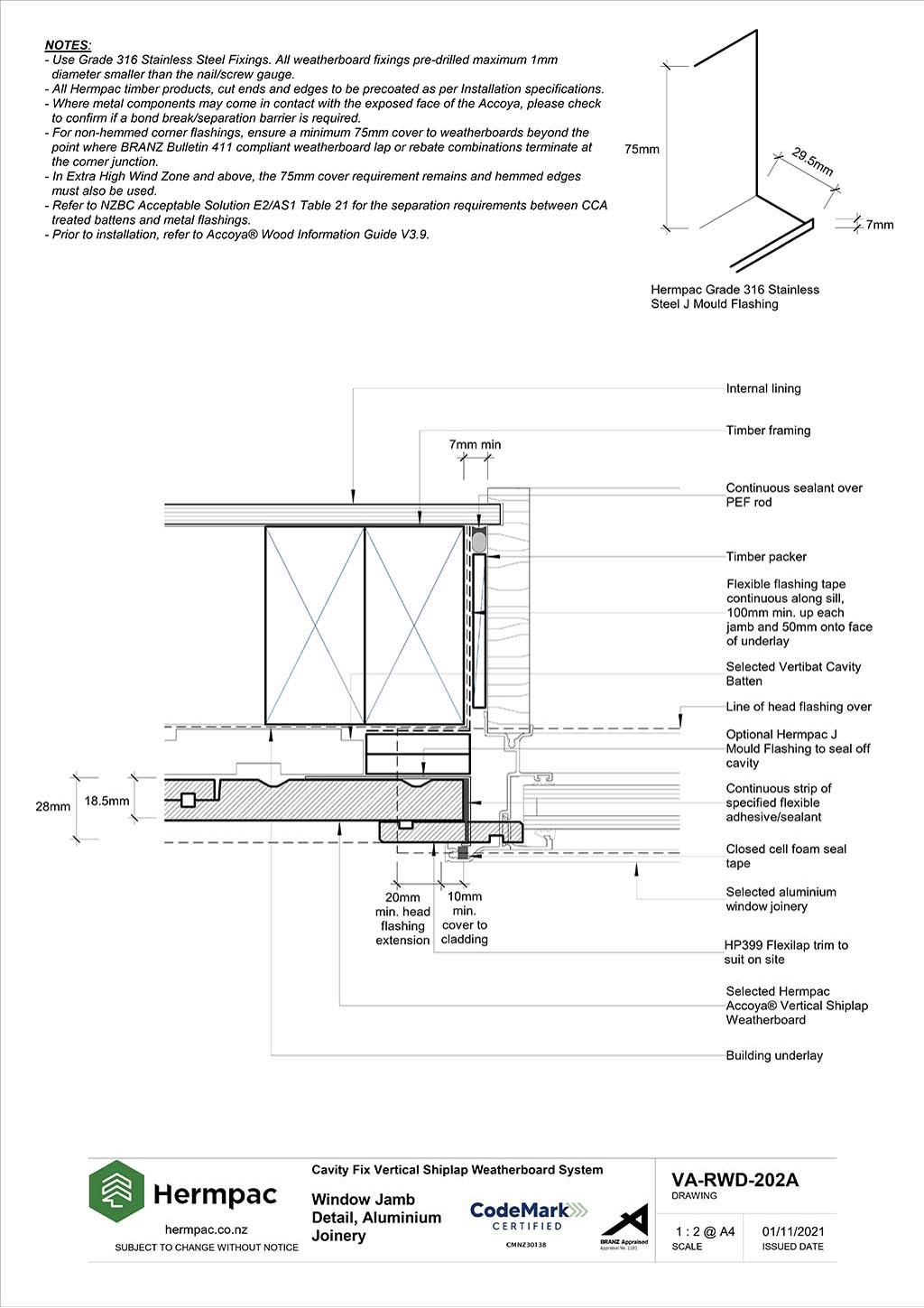

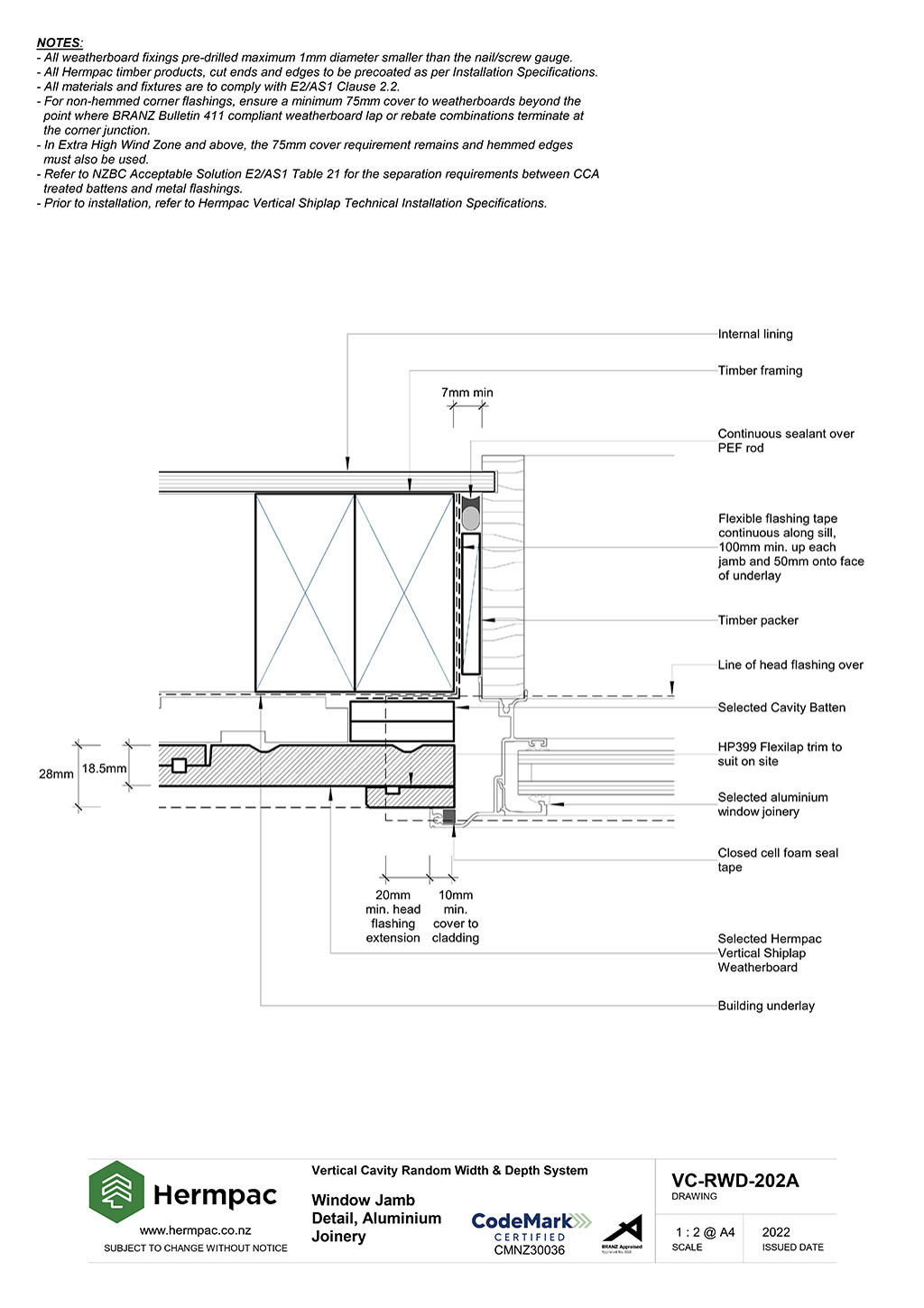

Window Jamb Detail, Aluminium Joinery

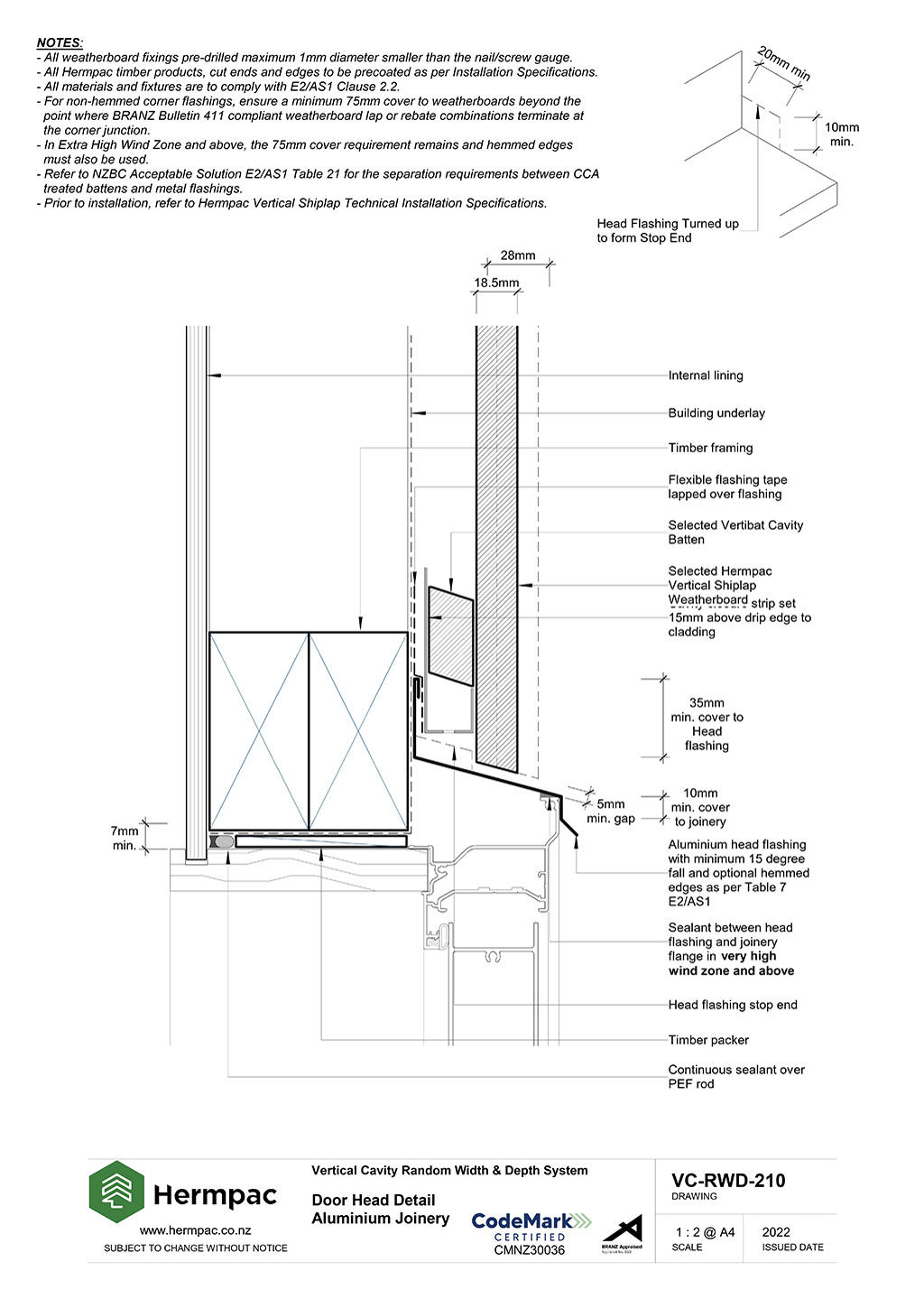

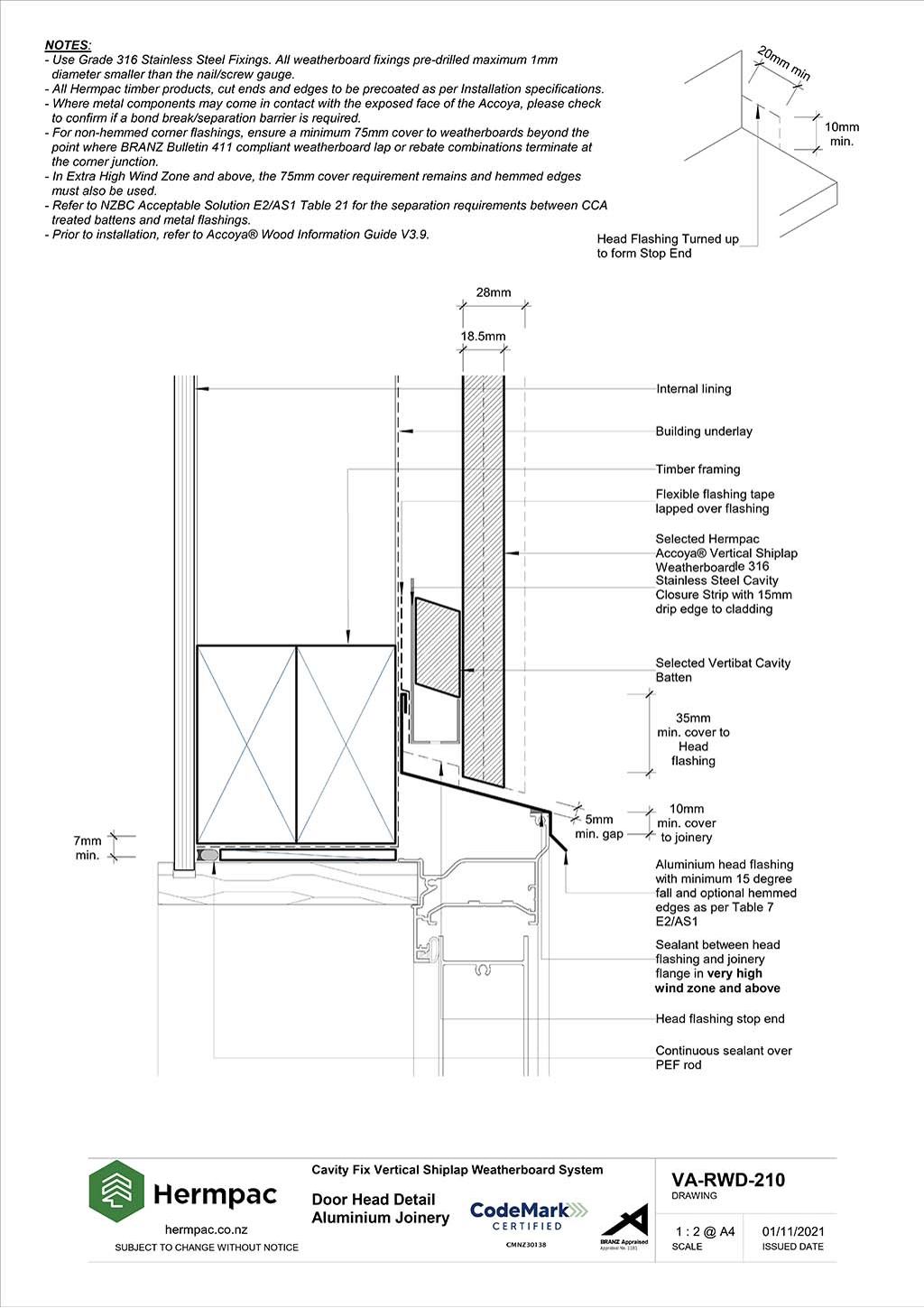

Door Head Detail, Aluminium Joinery

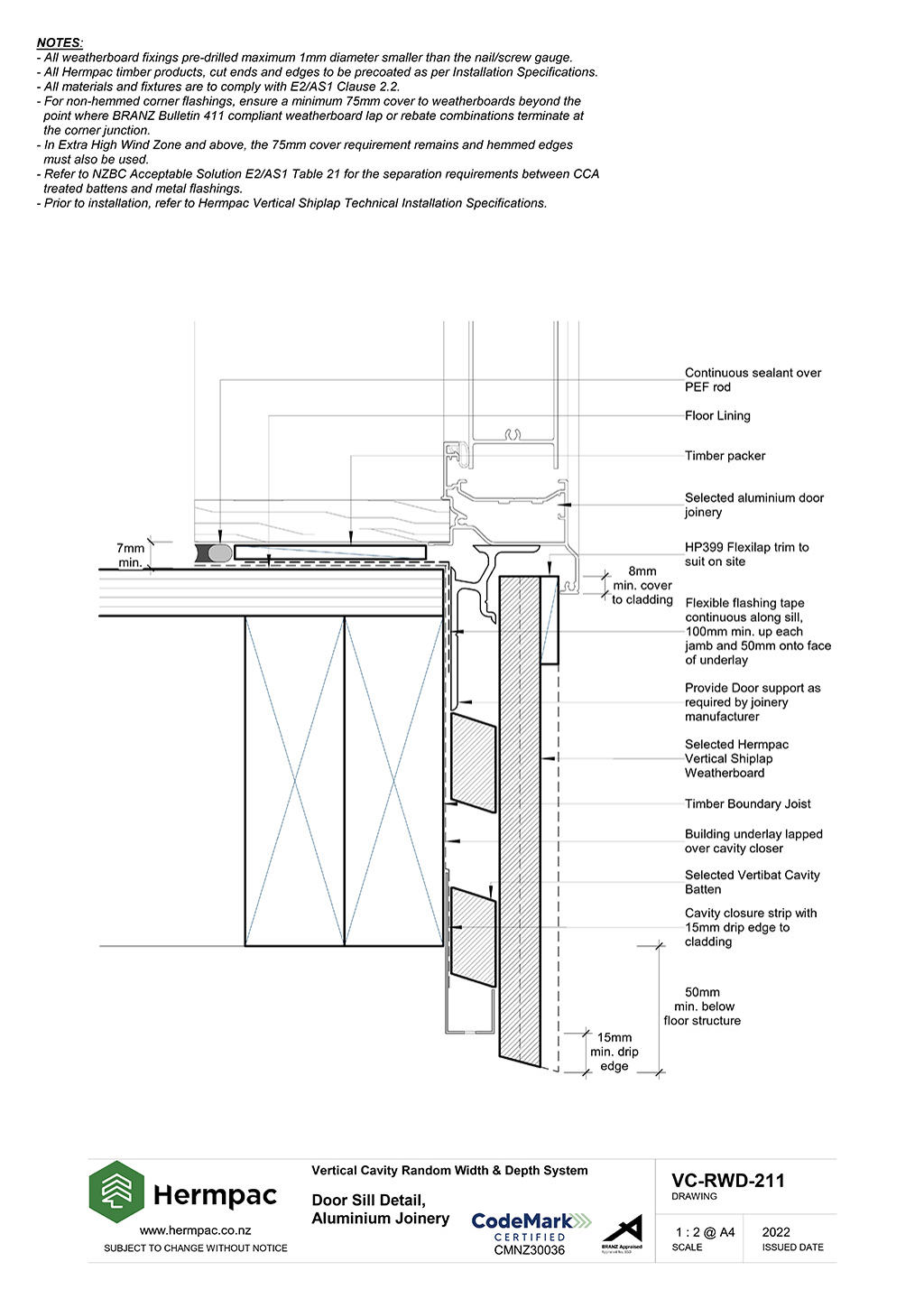

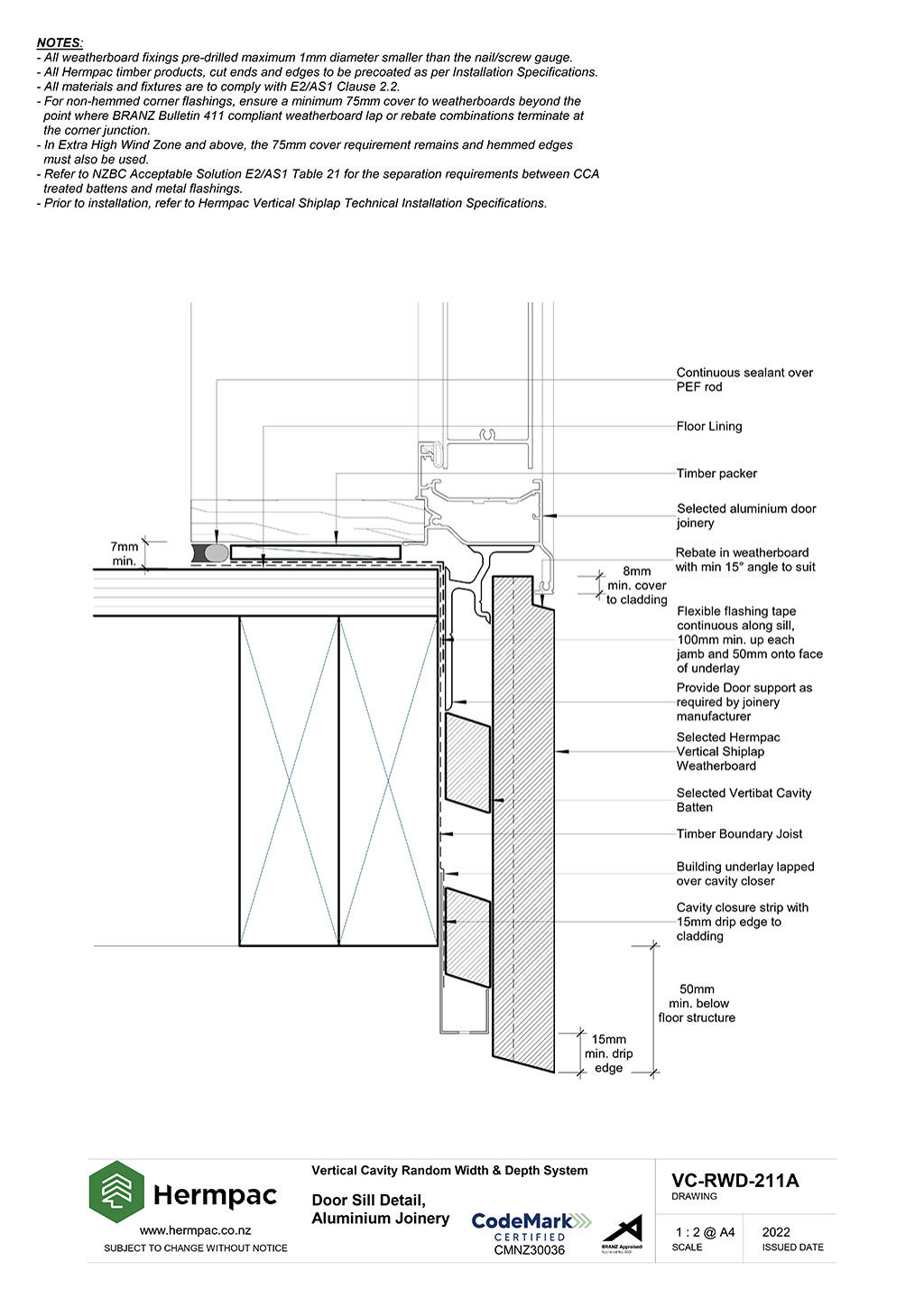

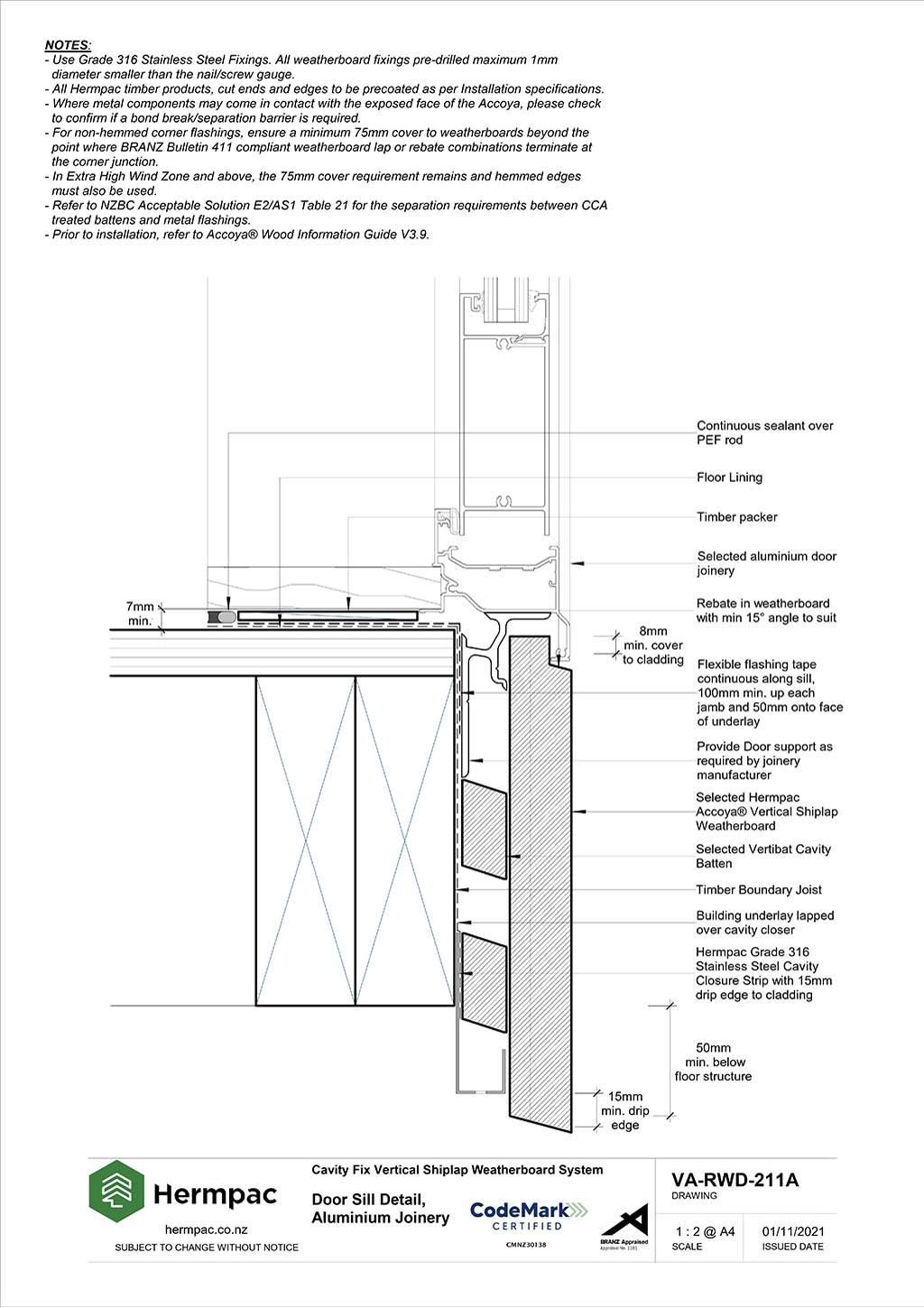

Door Sill Detail, Aluminium Joinery

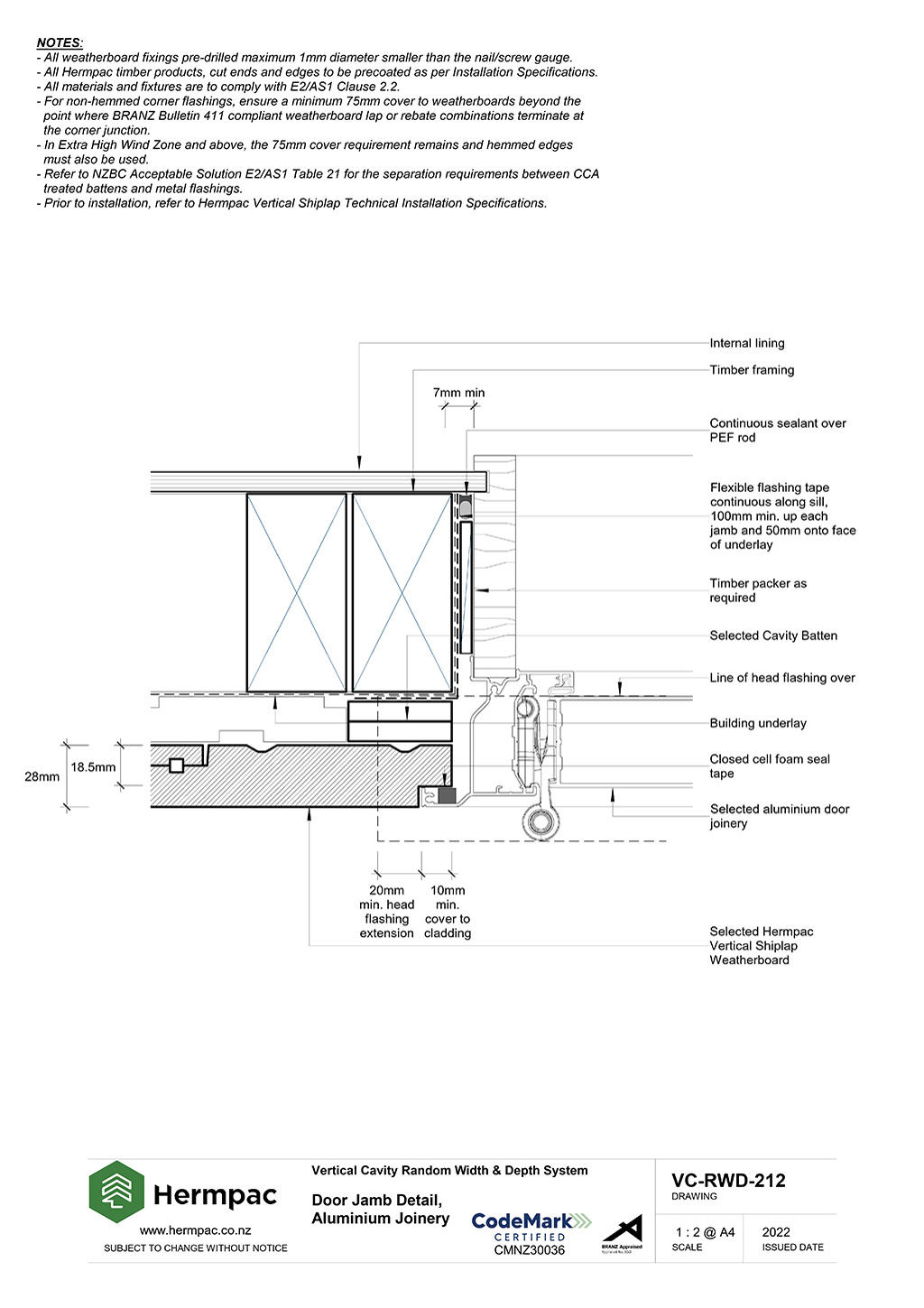

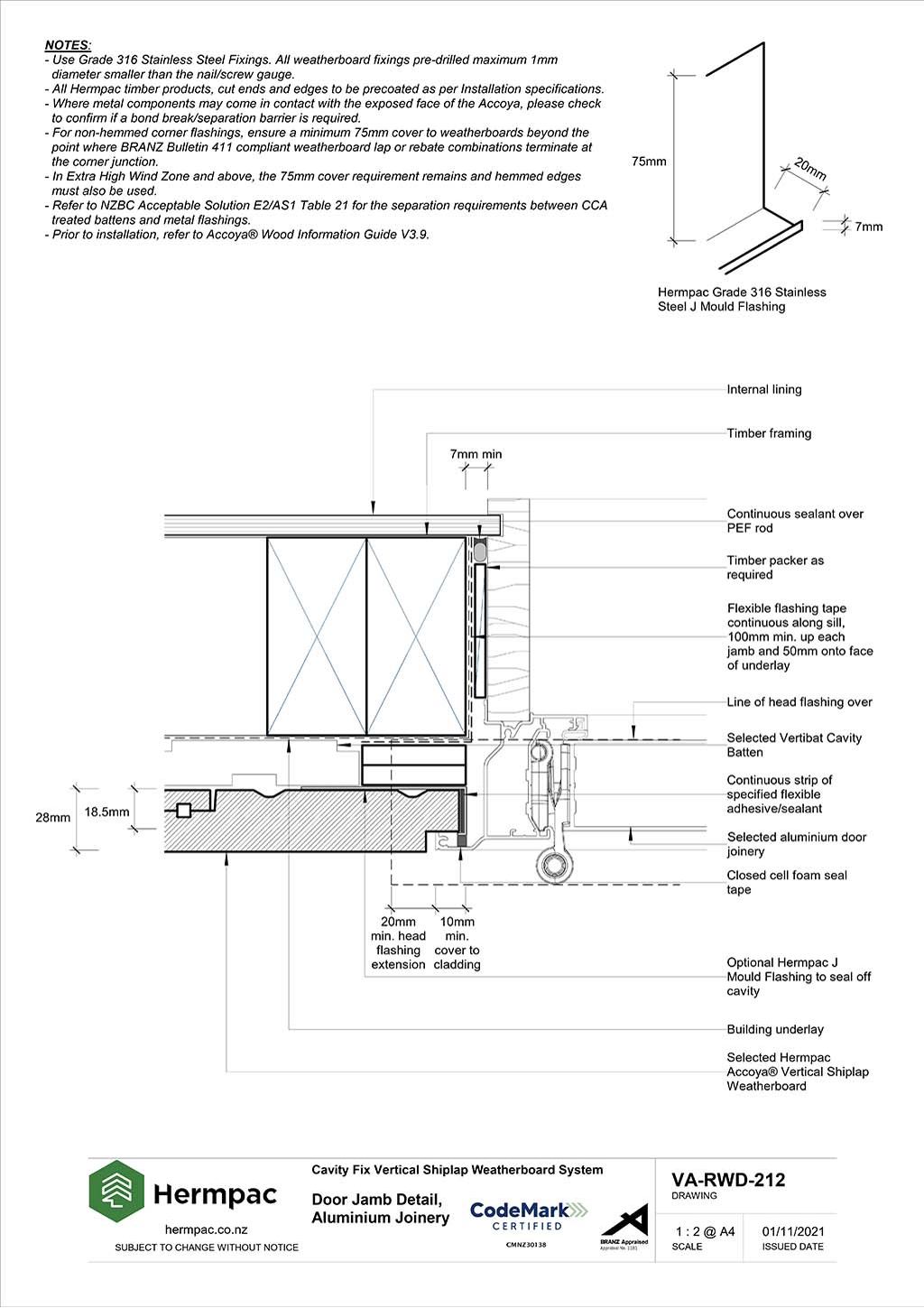

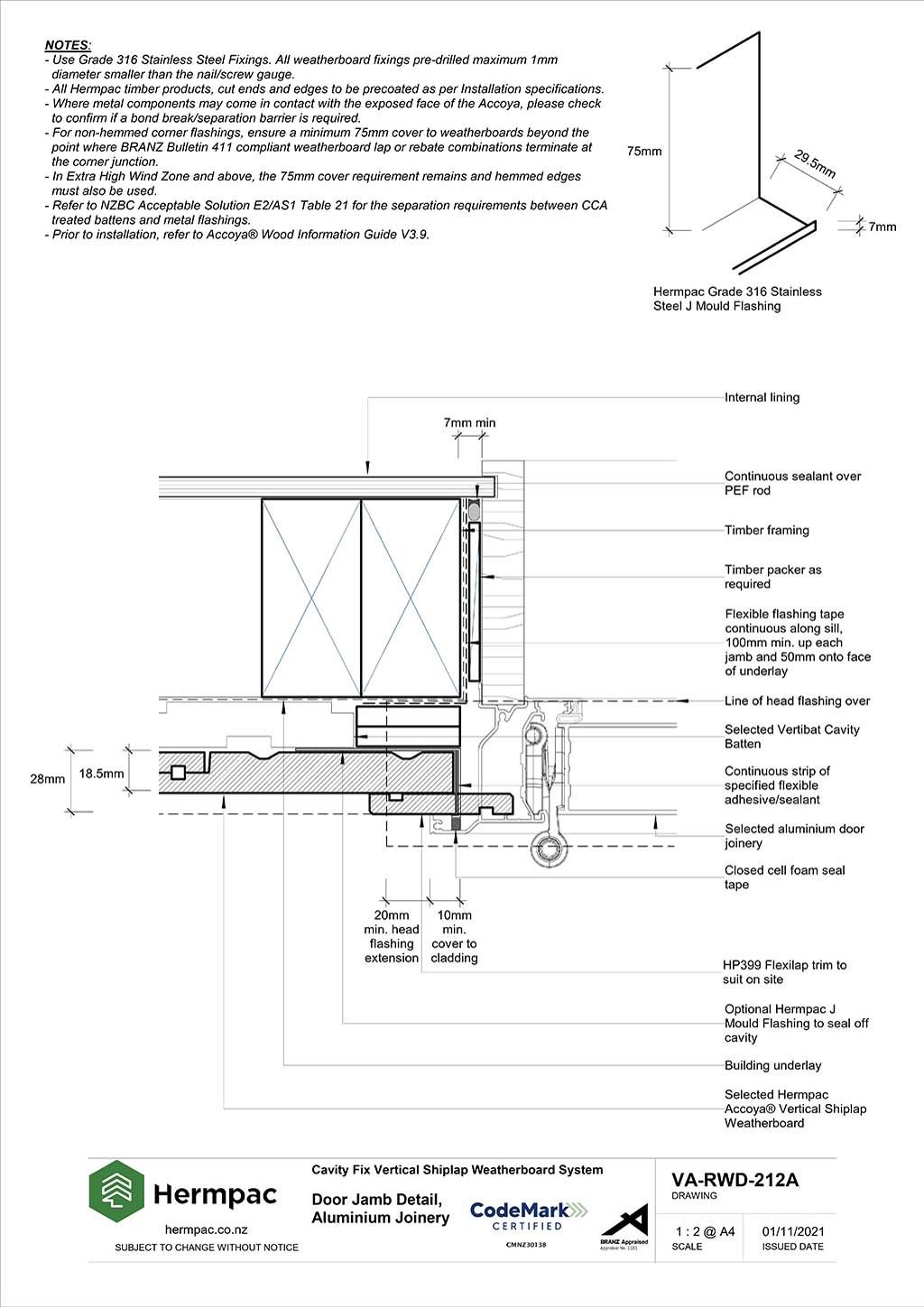

Door Jamb Detail, Aluminium Joinery

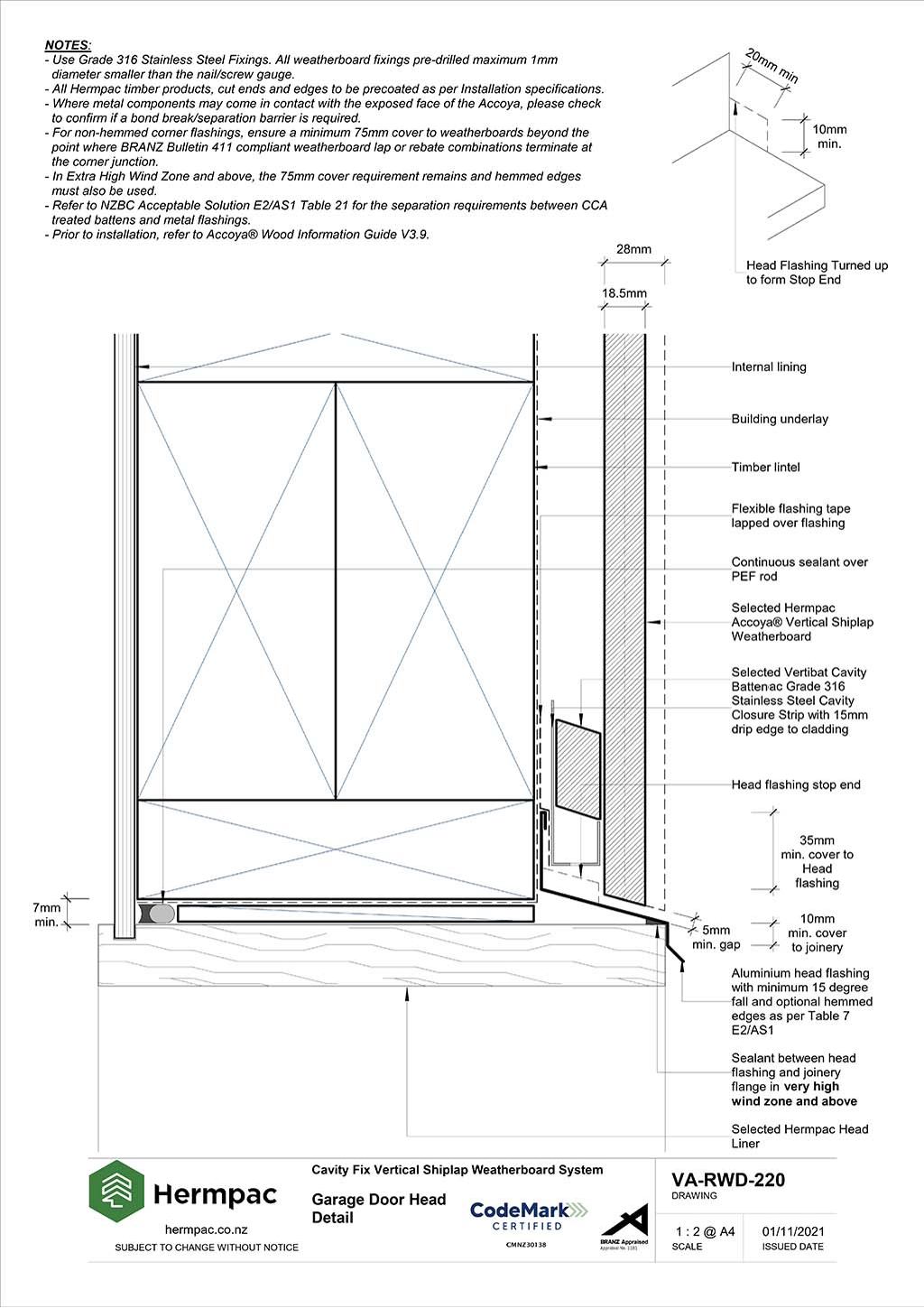

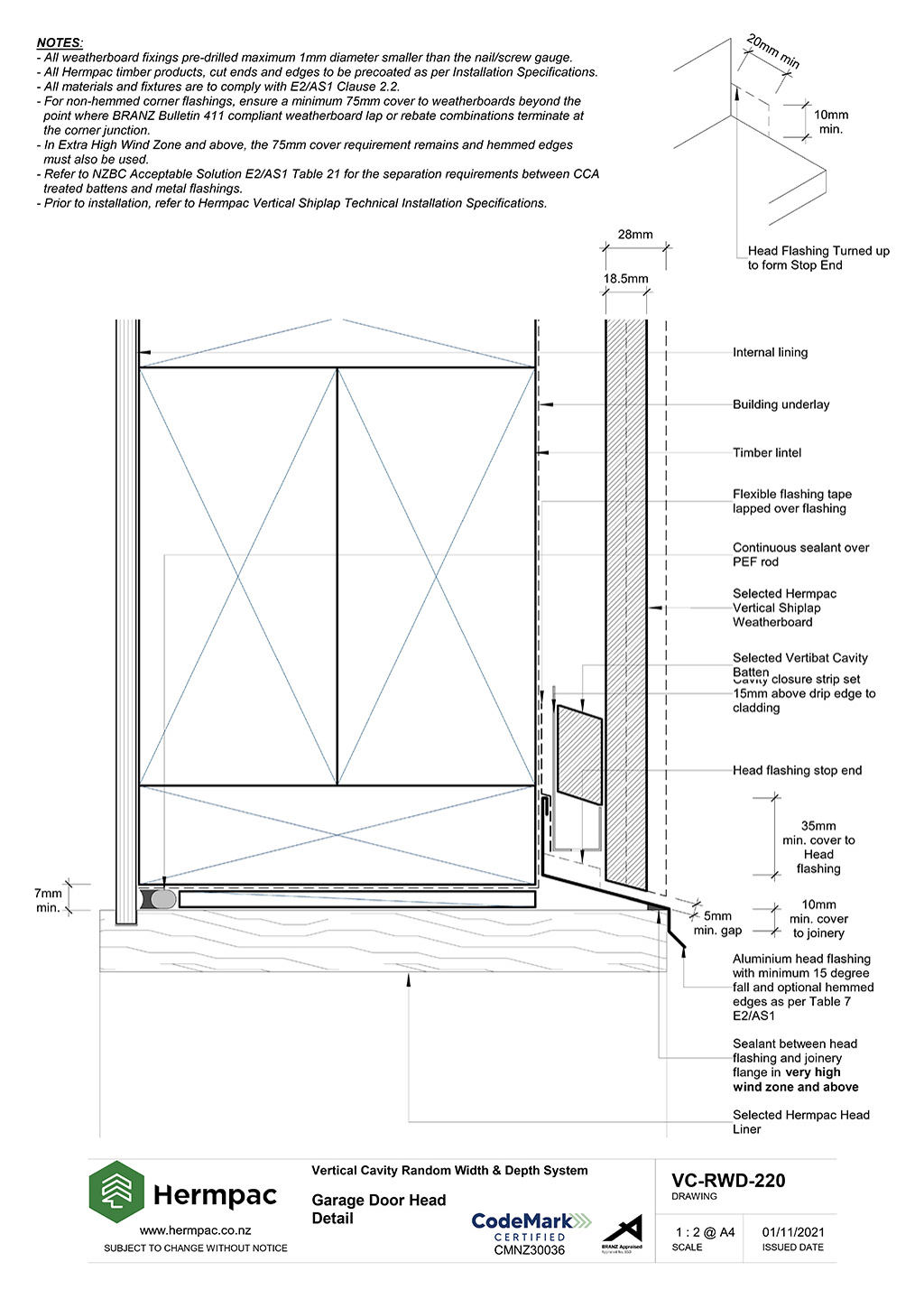

Garage Door Head Detail

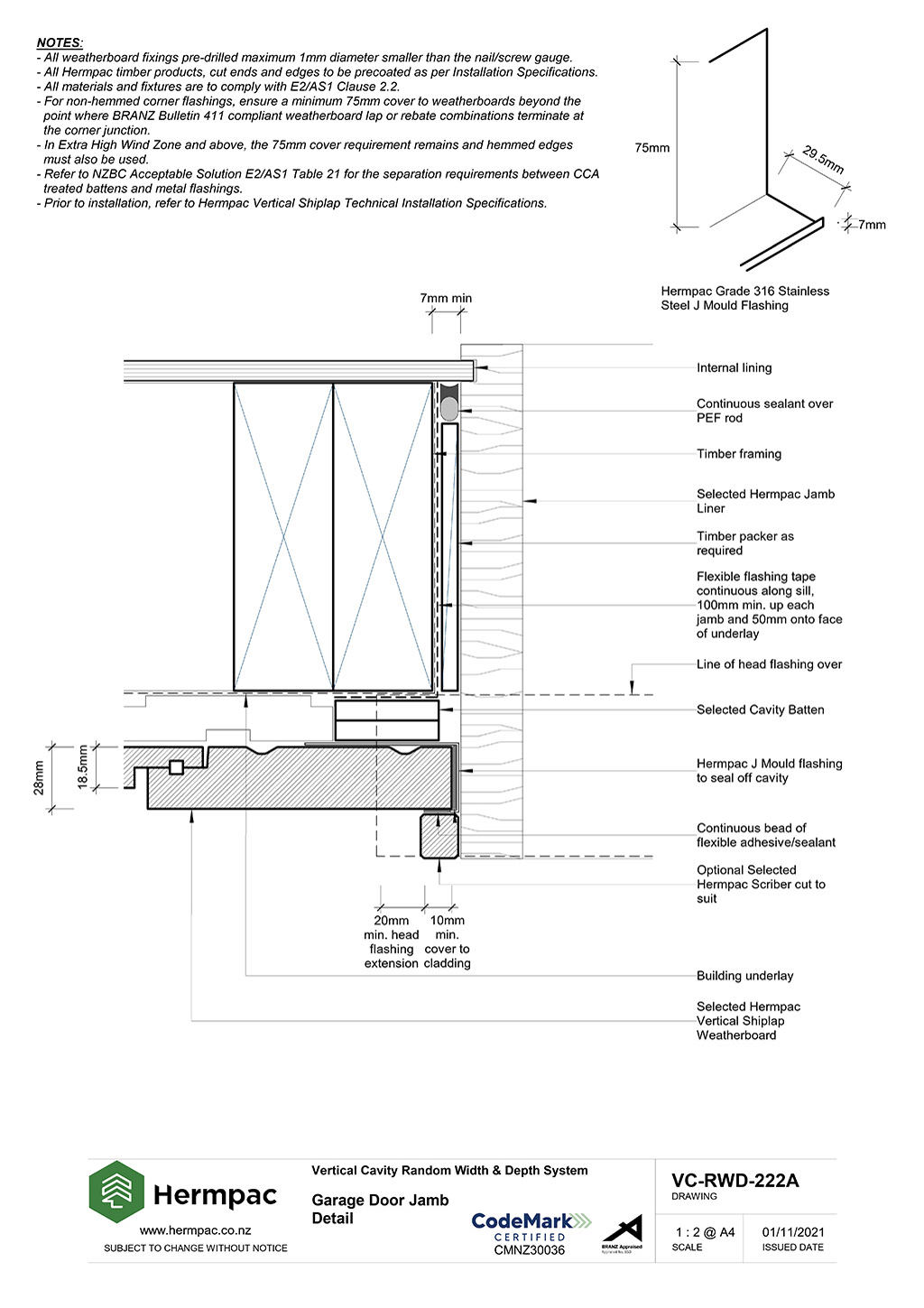

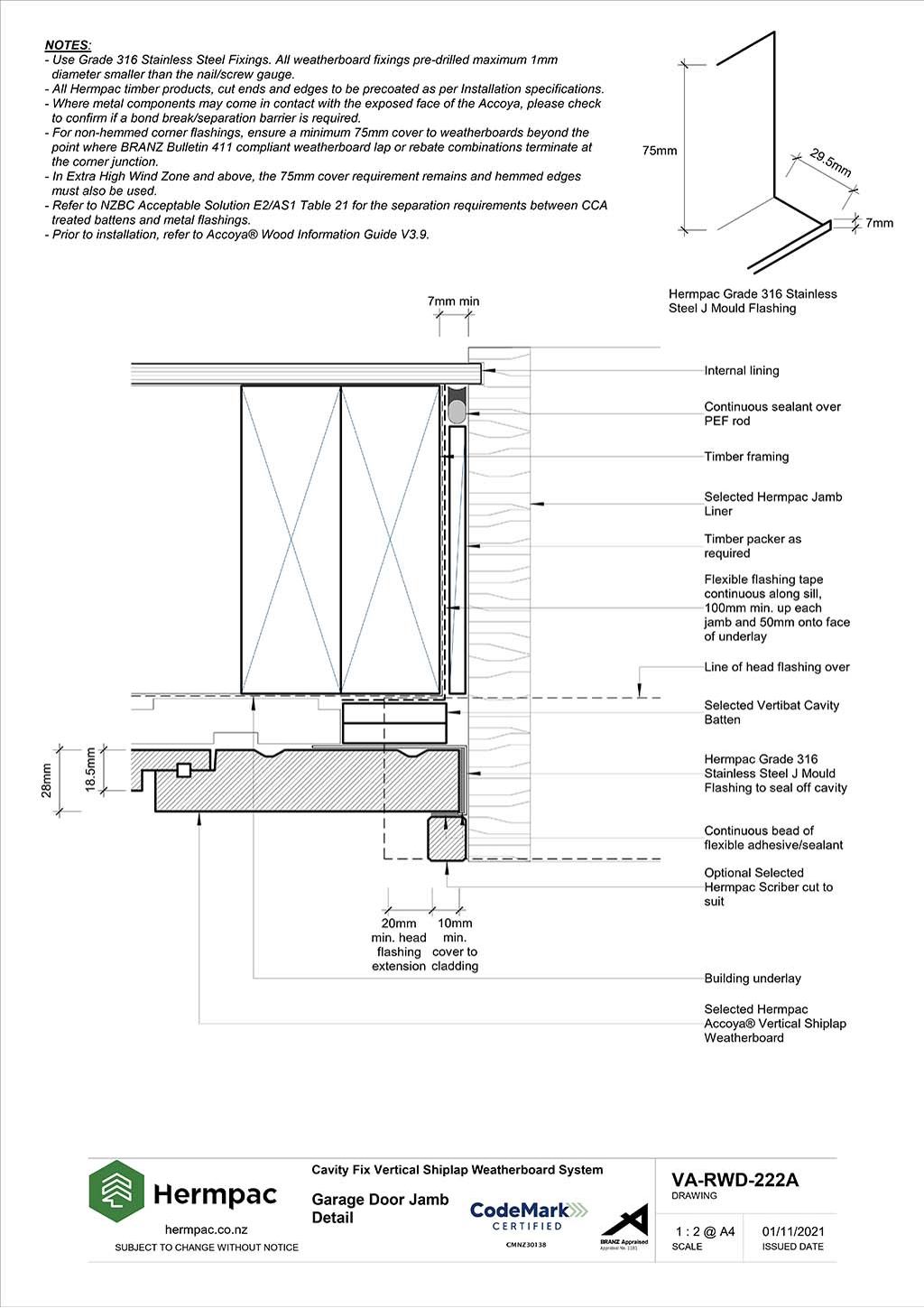

Garage Door Jamb Detail

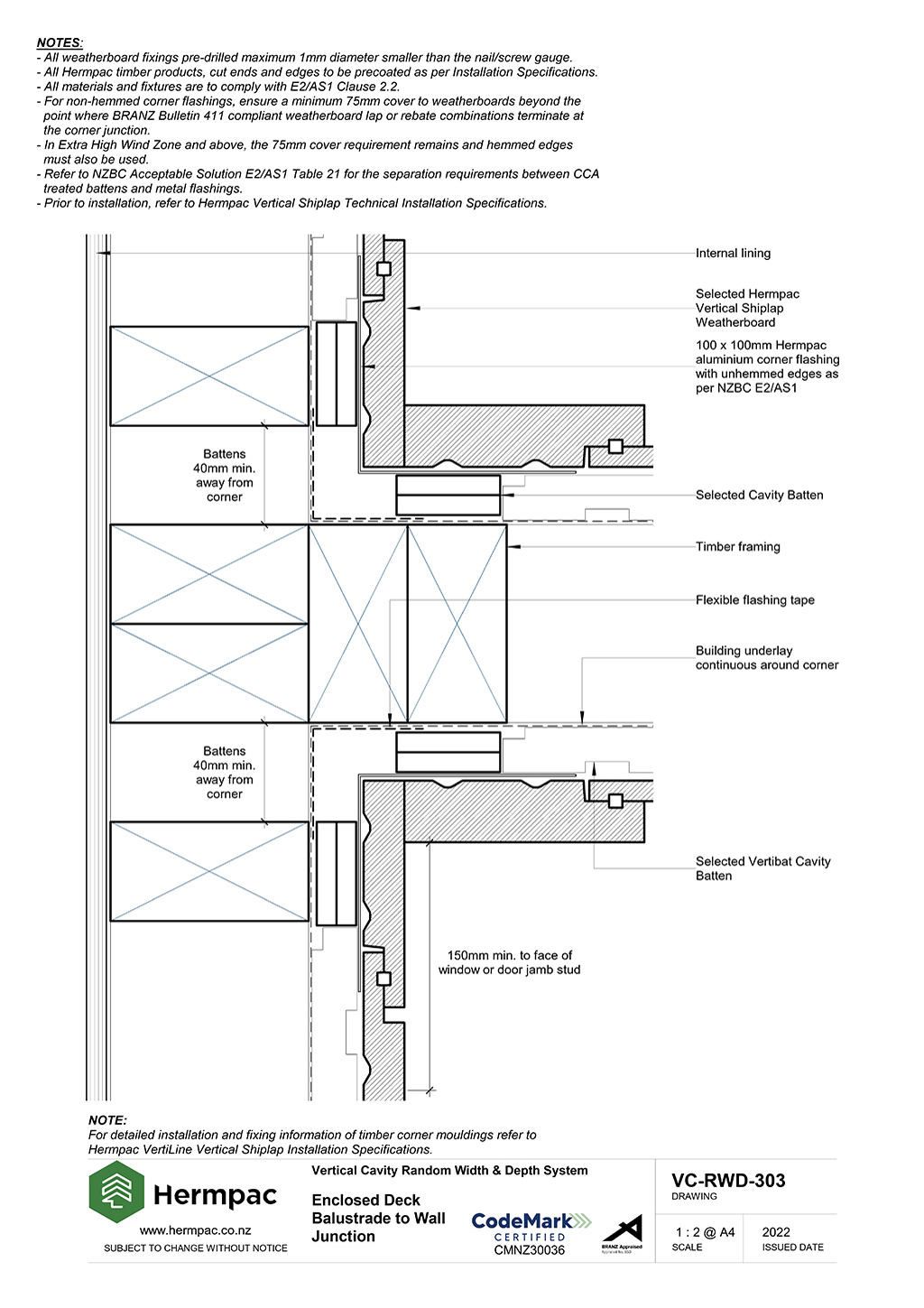

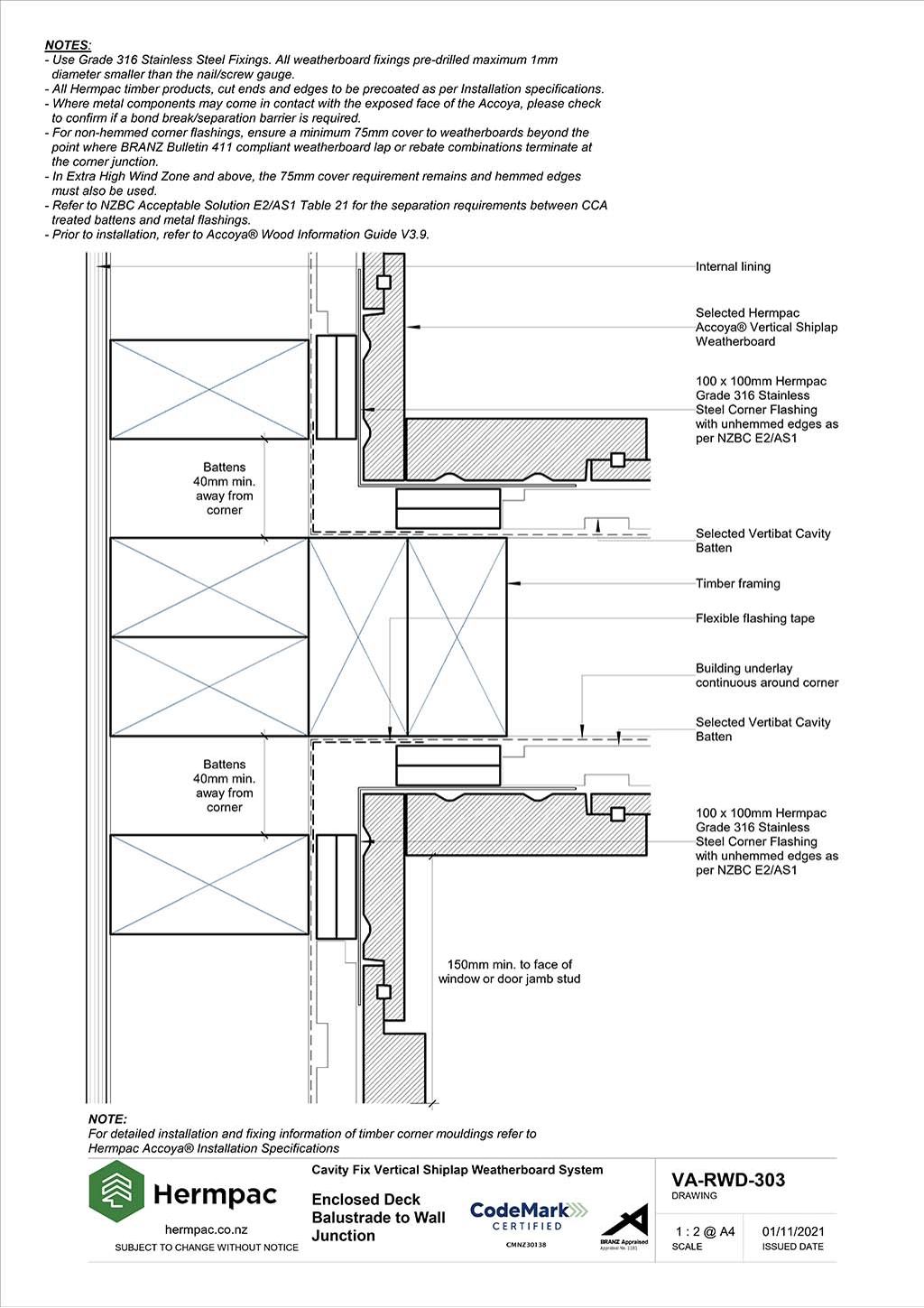

Enclosed Deck Balustrade to Wall Junction

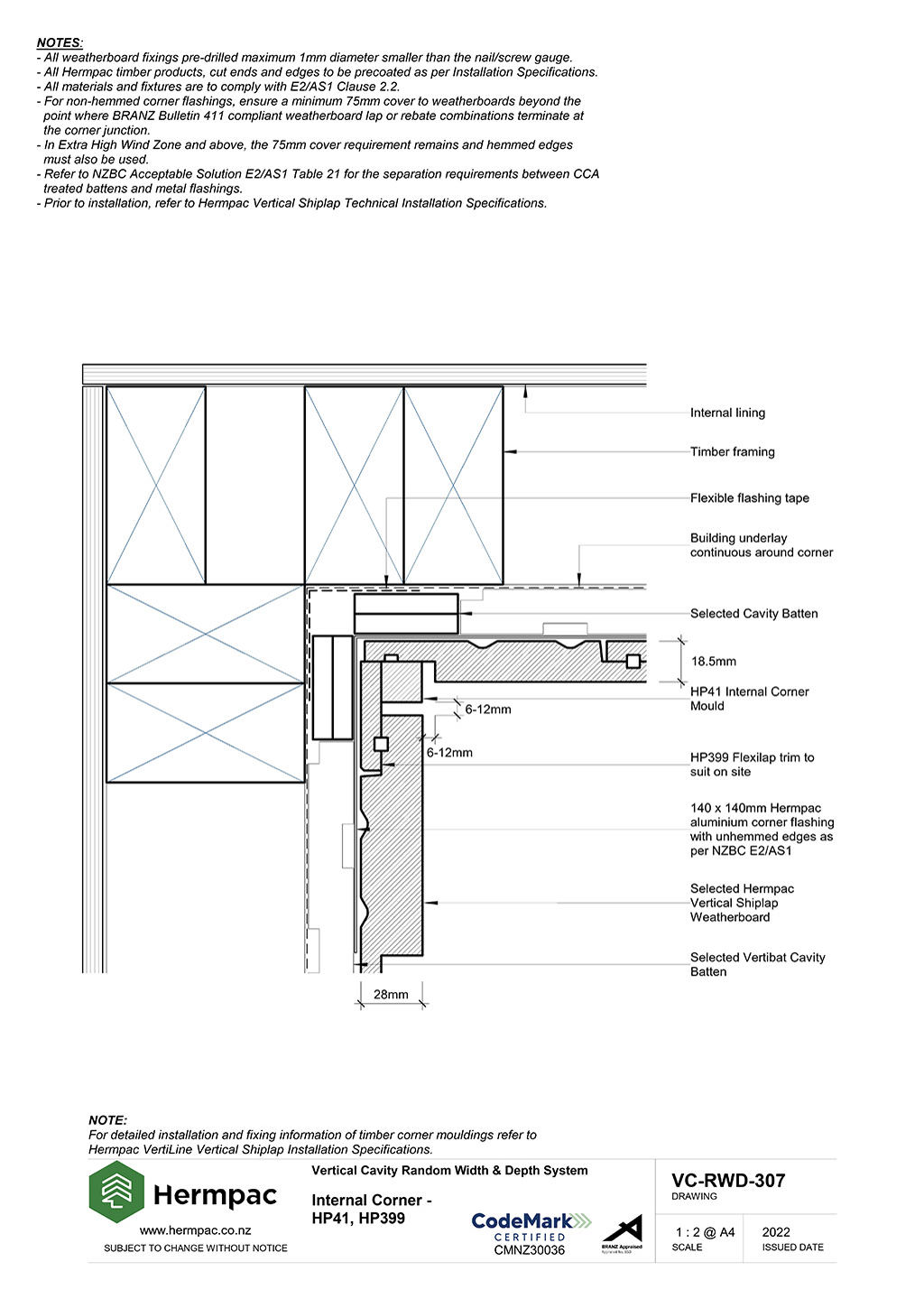

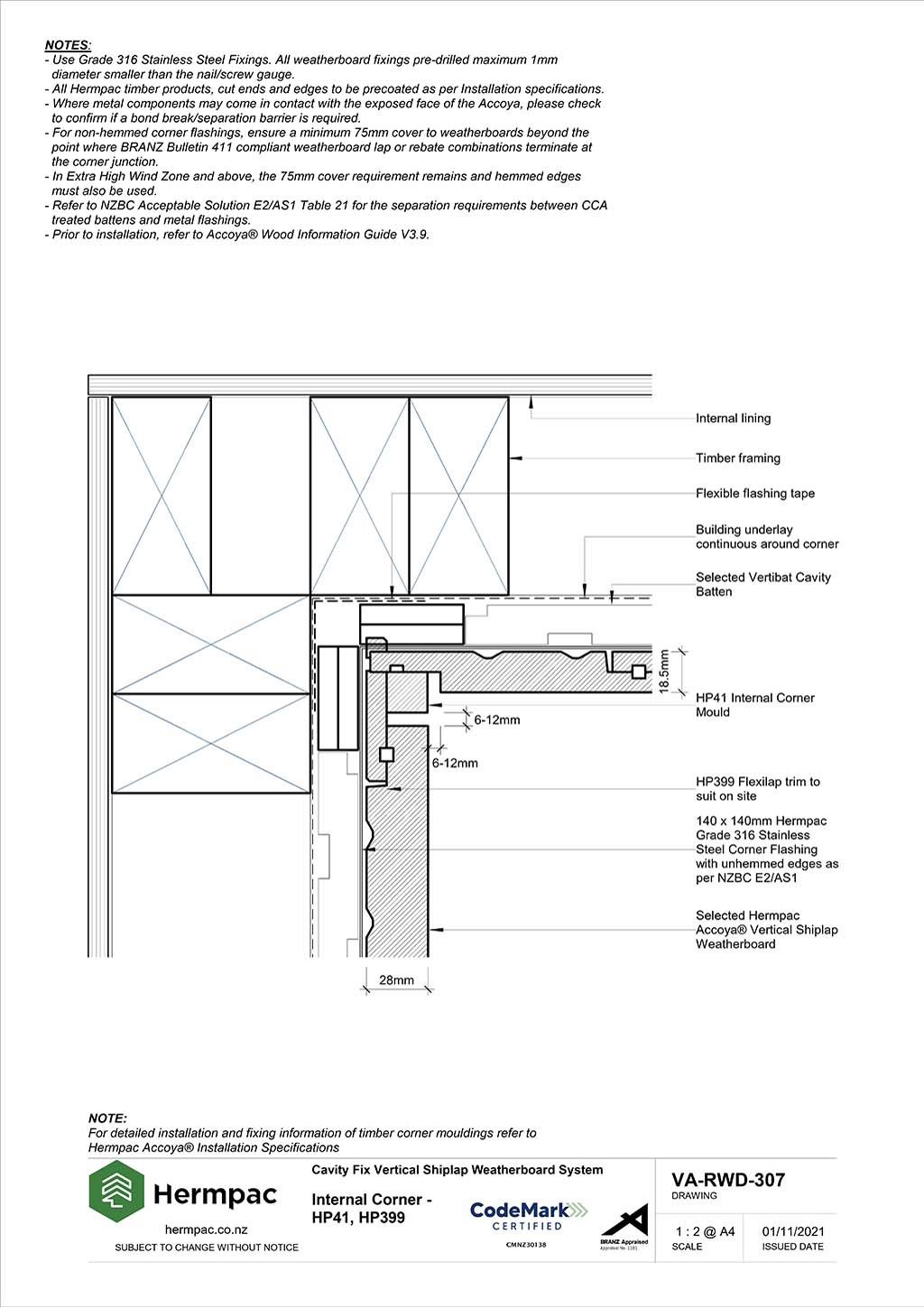

Internal Corner HP41, HP399

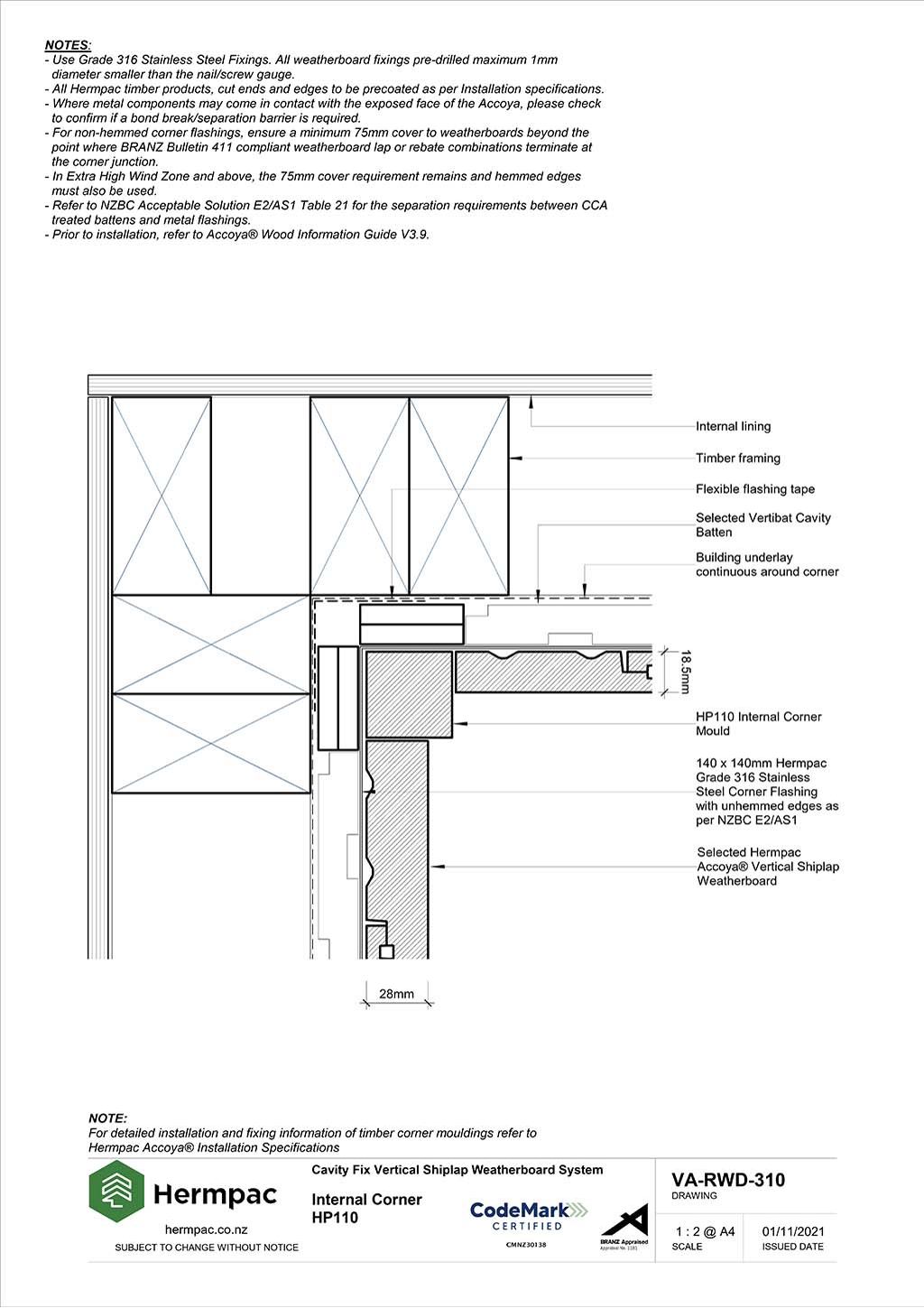

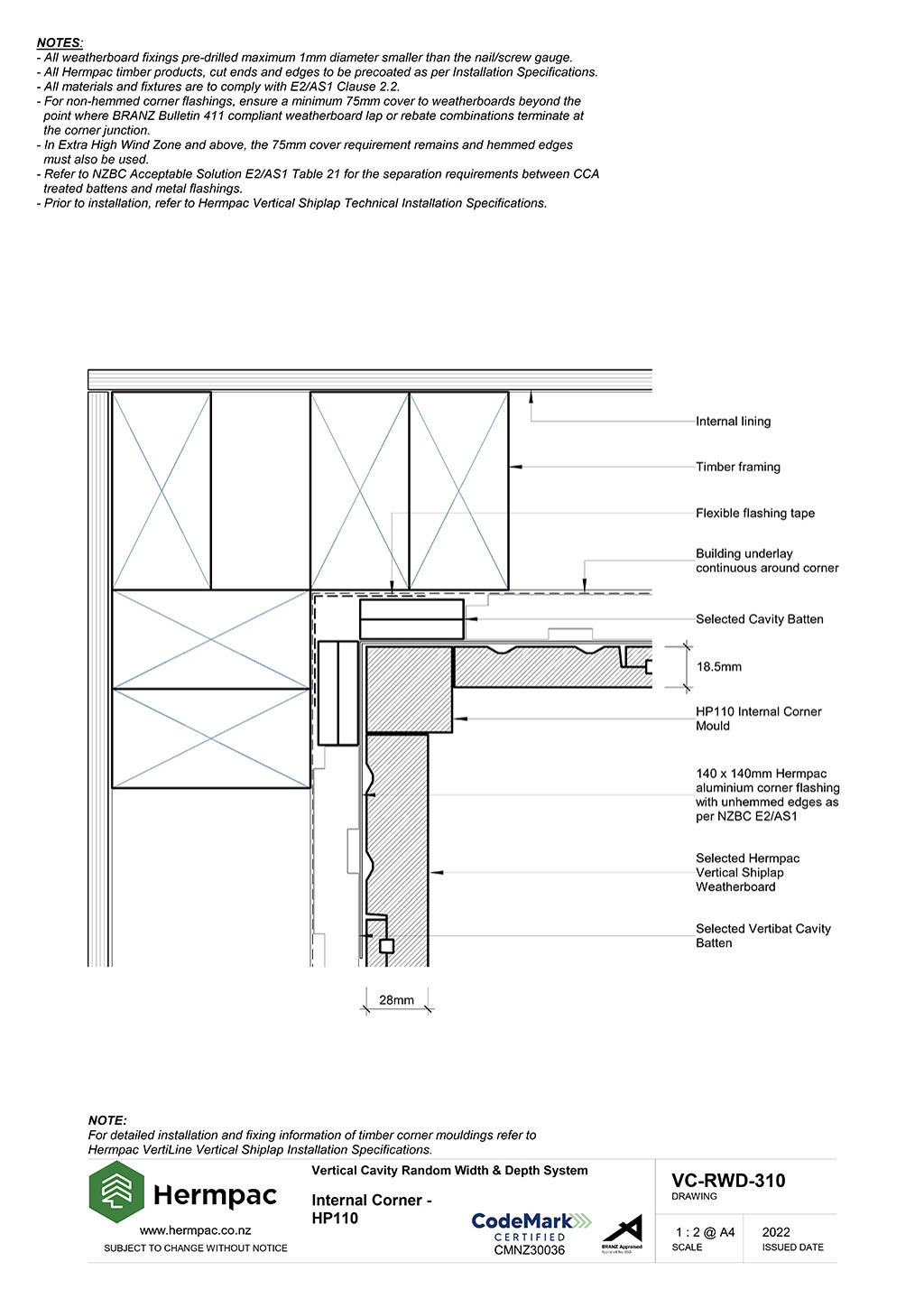

Internal Corner HP110

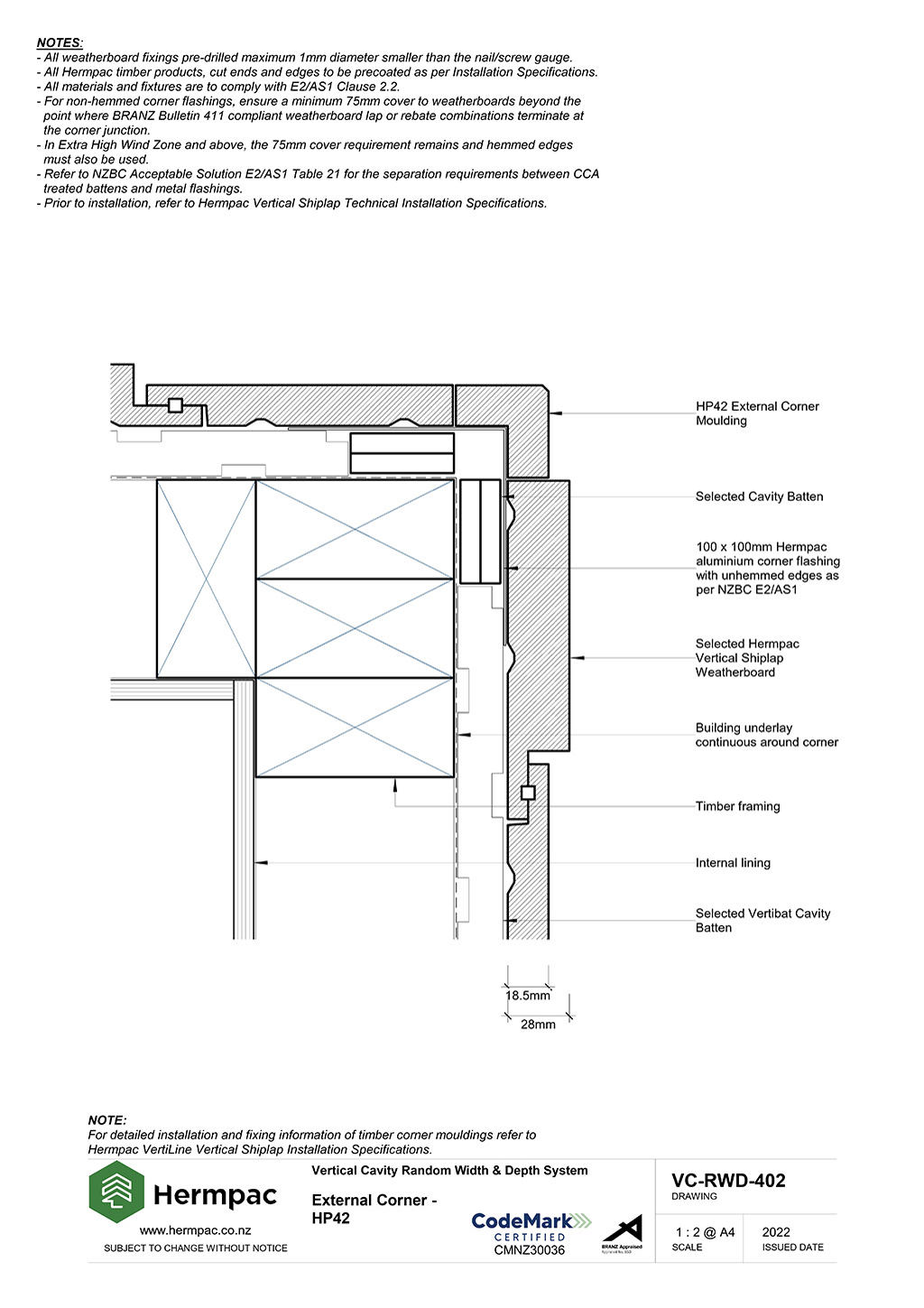

External Corner HP42

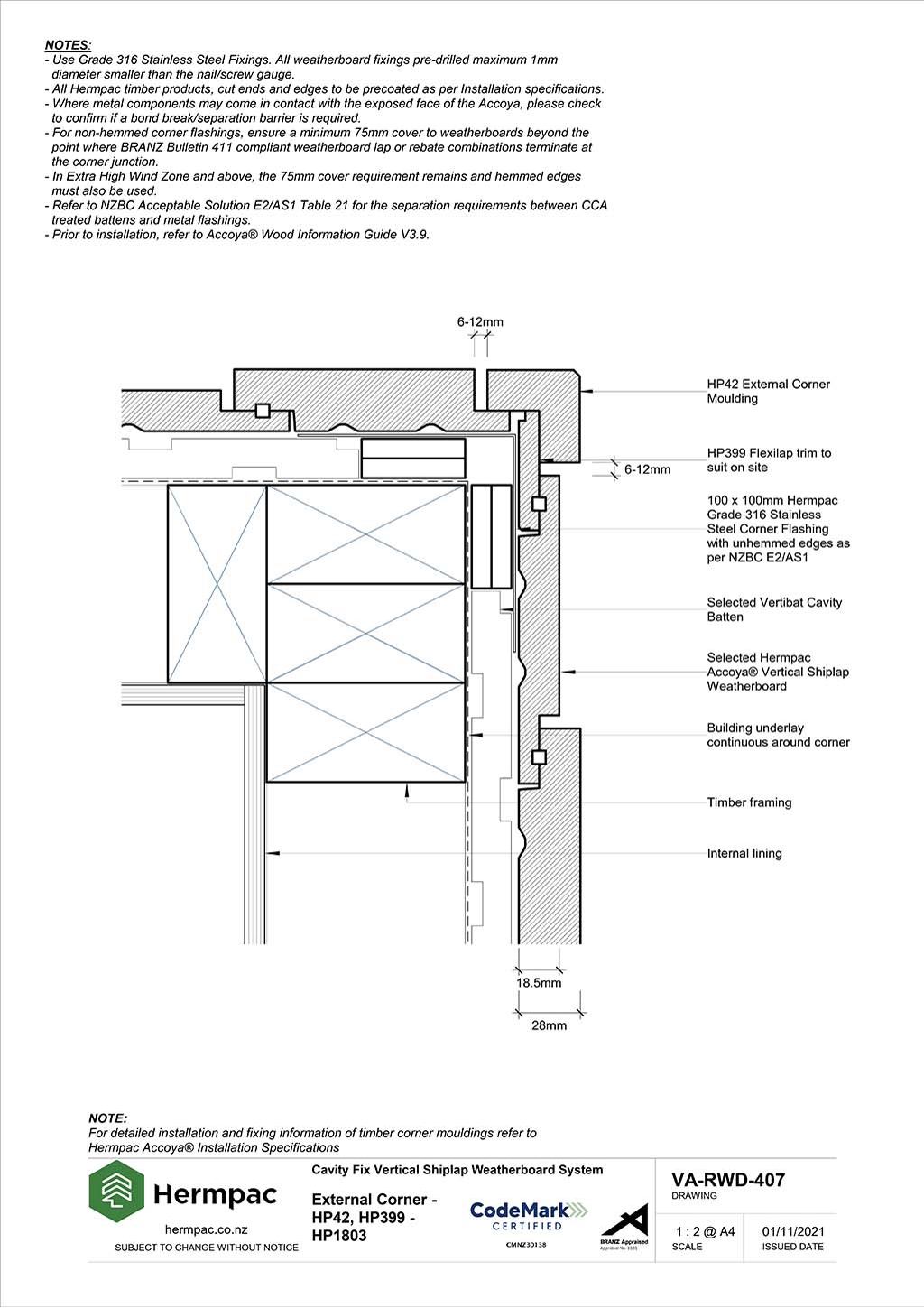

External Corner HP42, HP39-HP1803

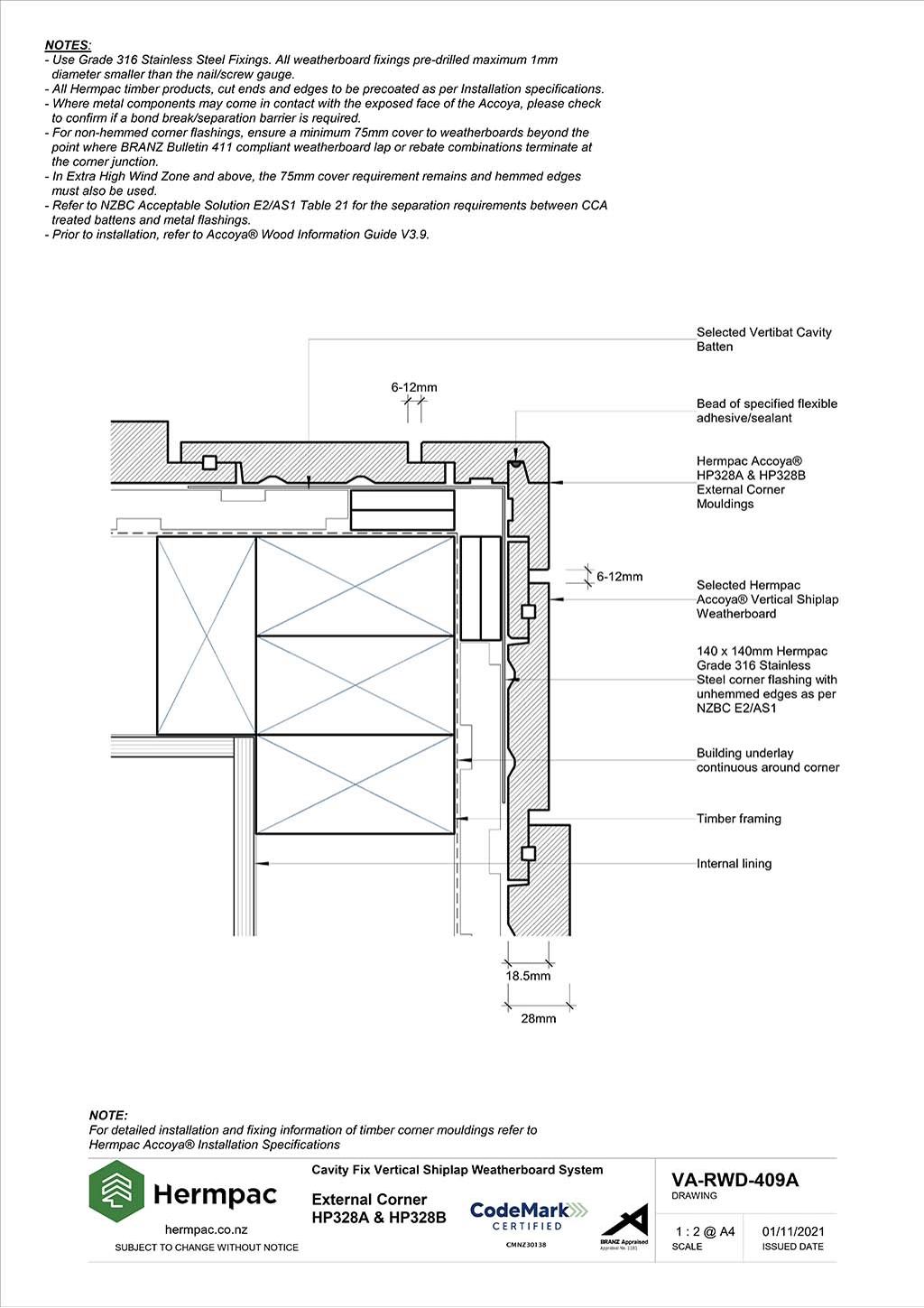

External Corner HP328A &HP328B

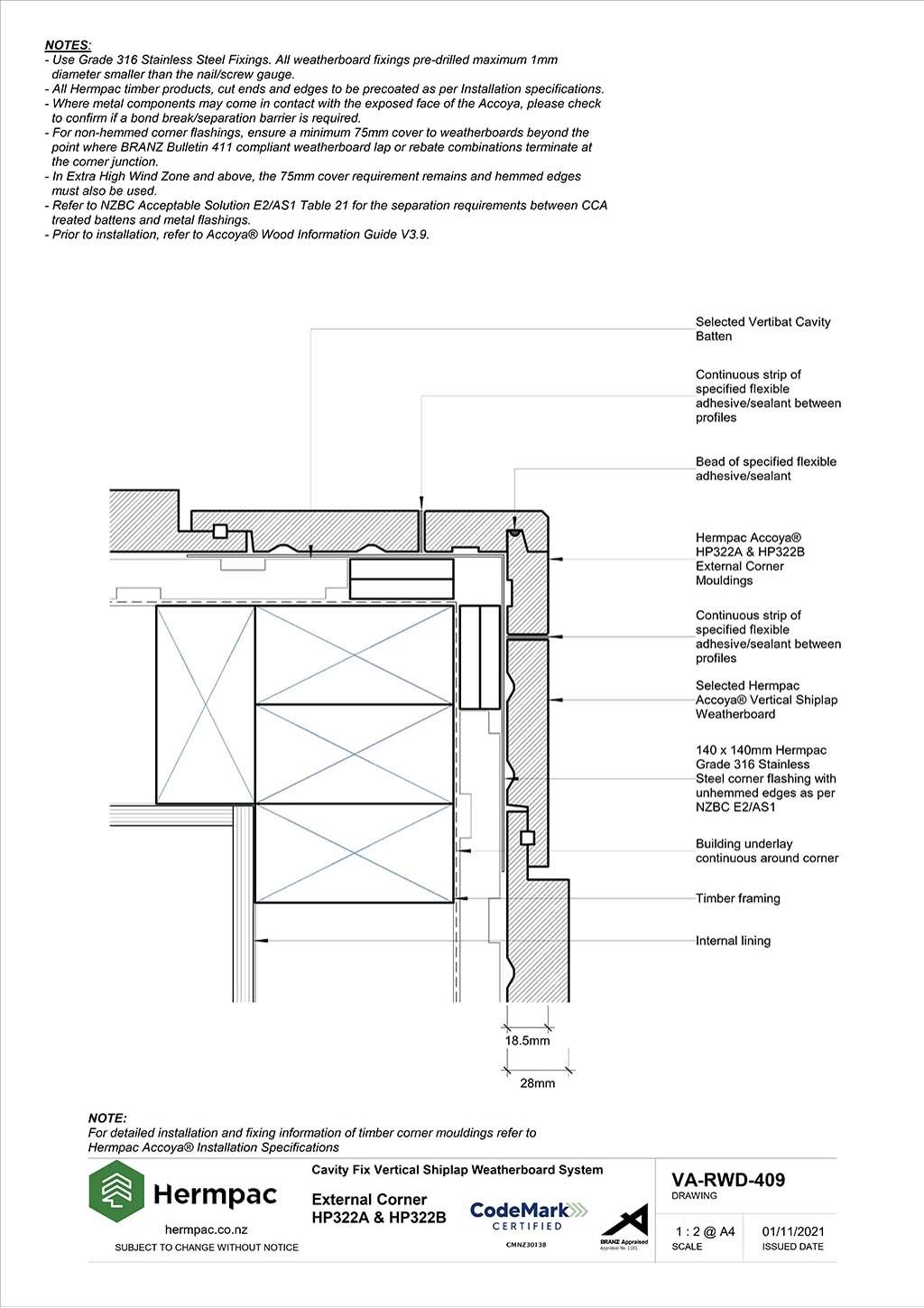

External Corner HP322A &HP322B

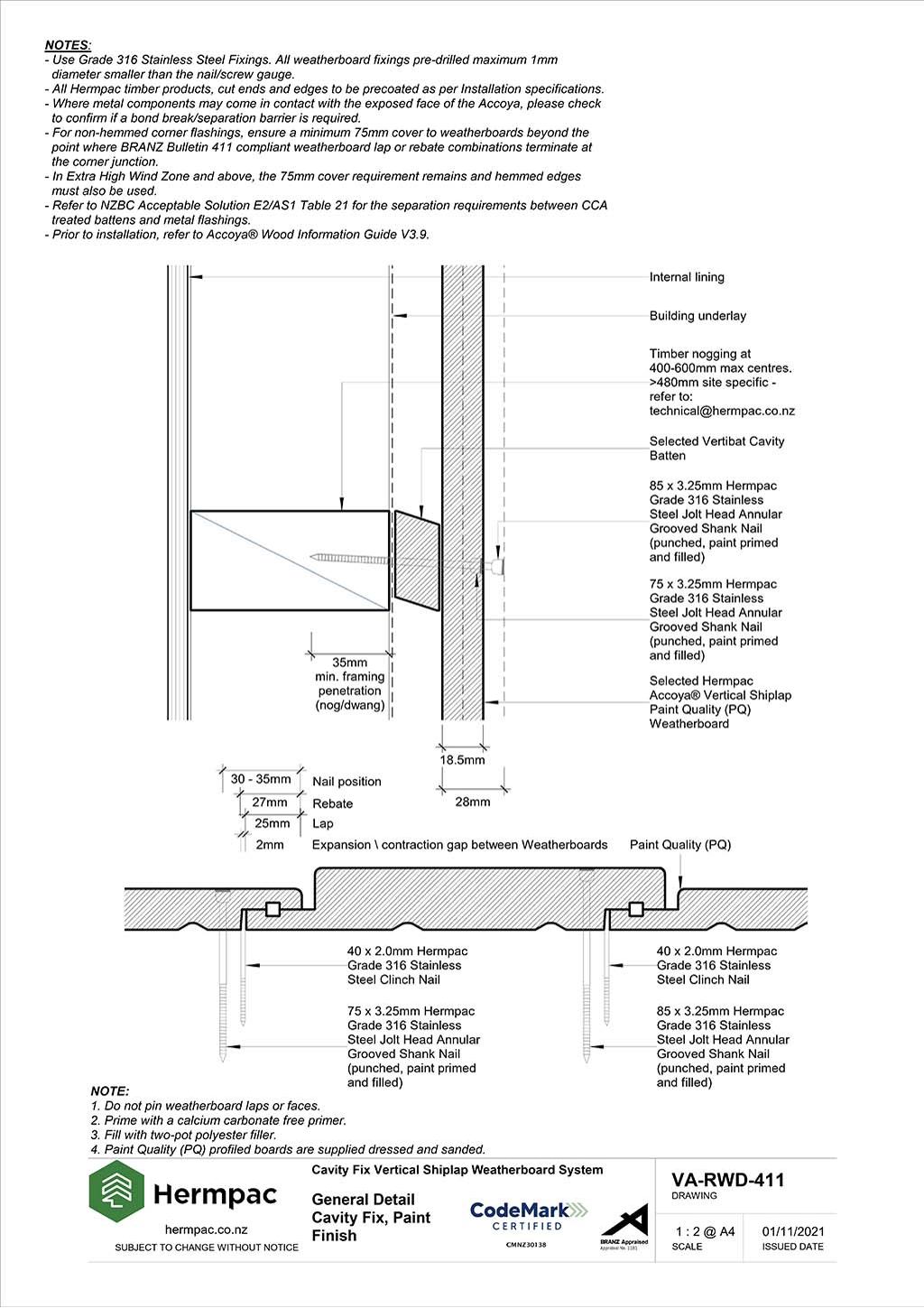

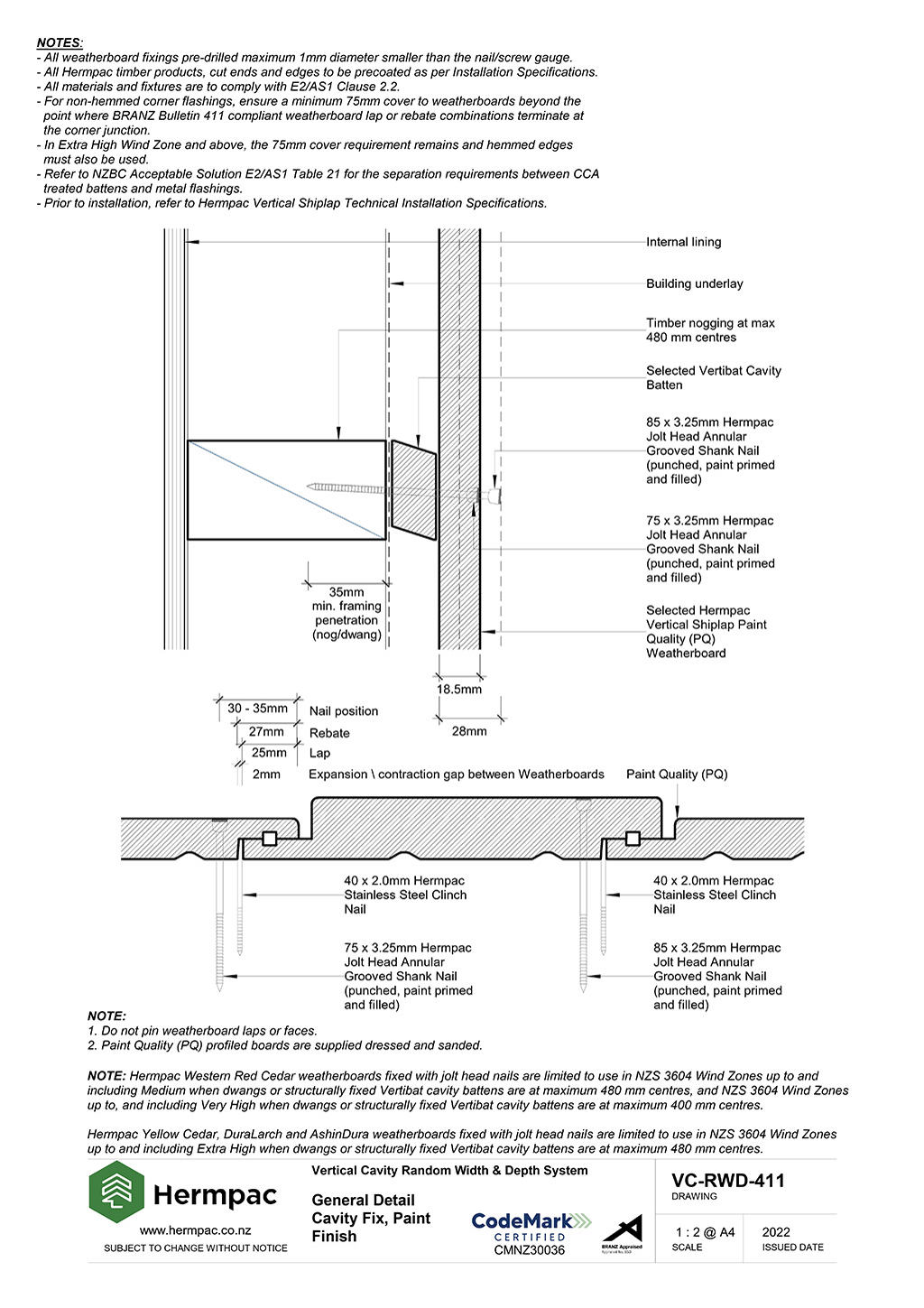

General Detail Cavity Fix, Paint Finish

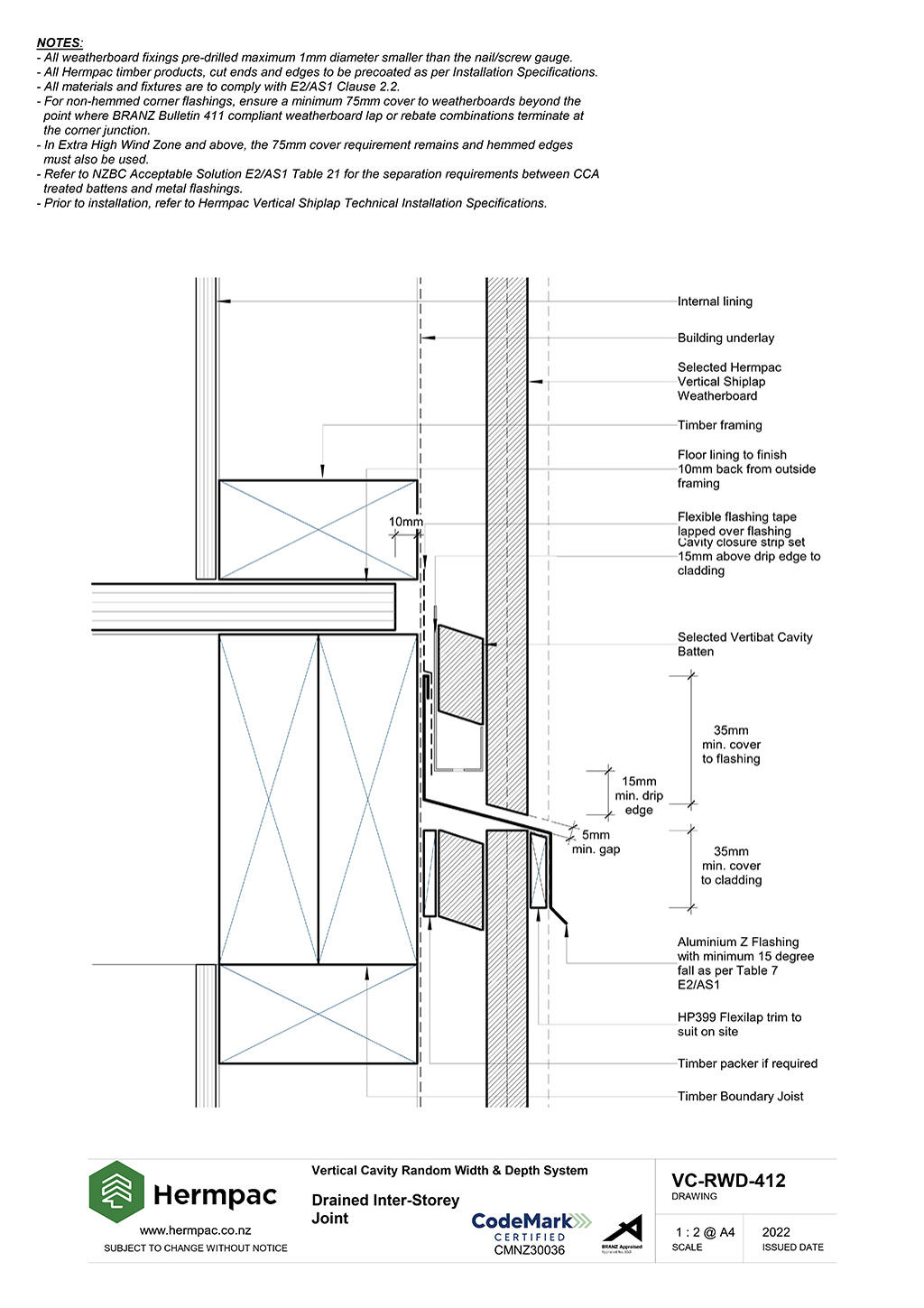

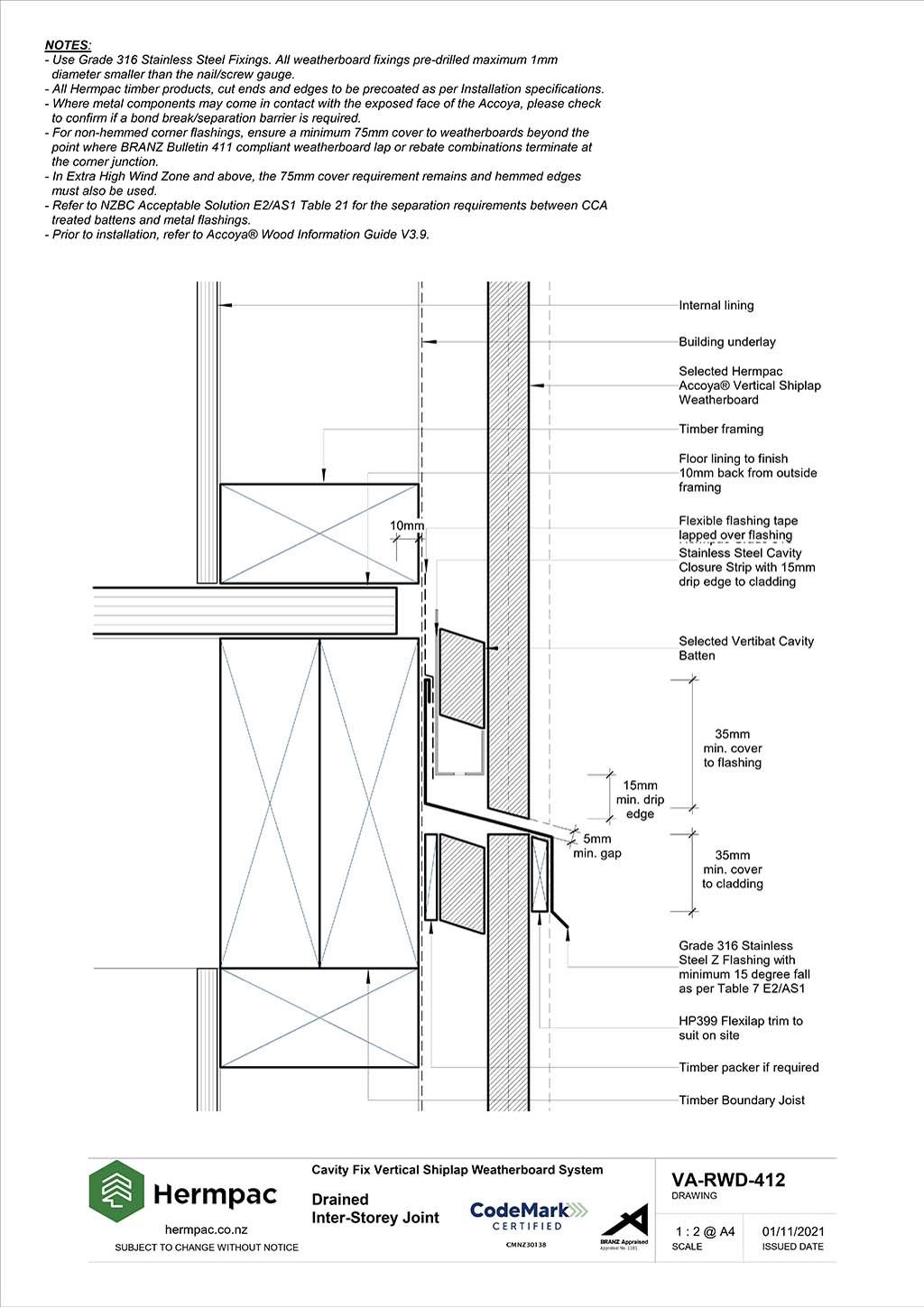

Drained Inter-Storey Joint

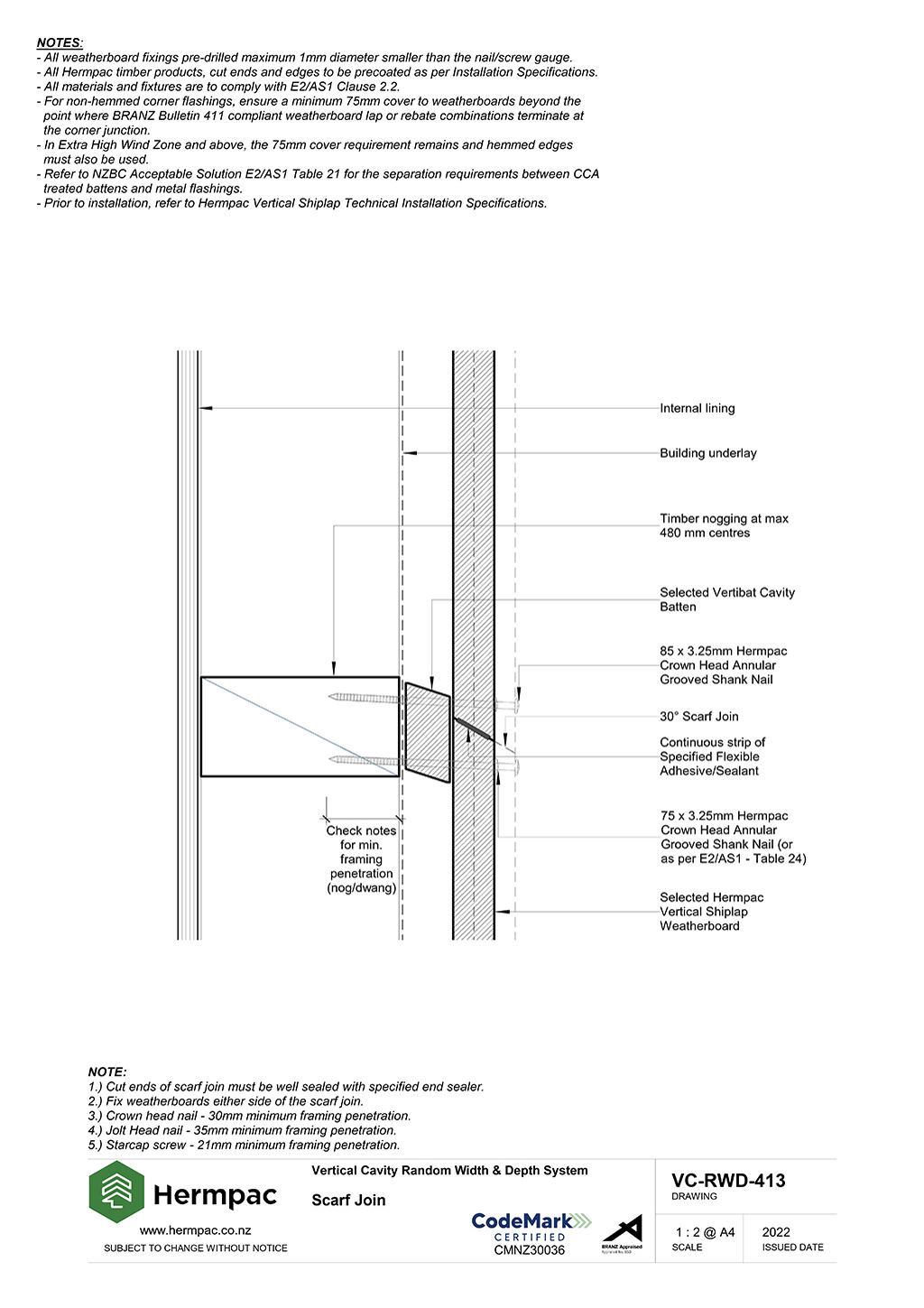

Scarf Join

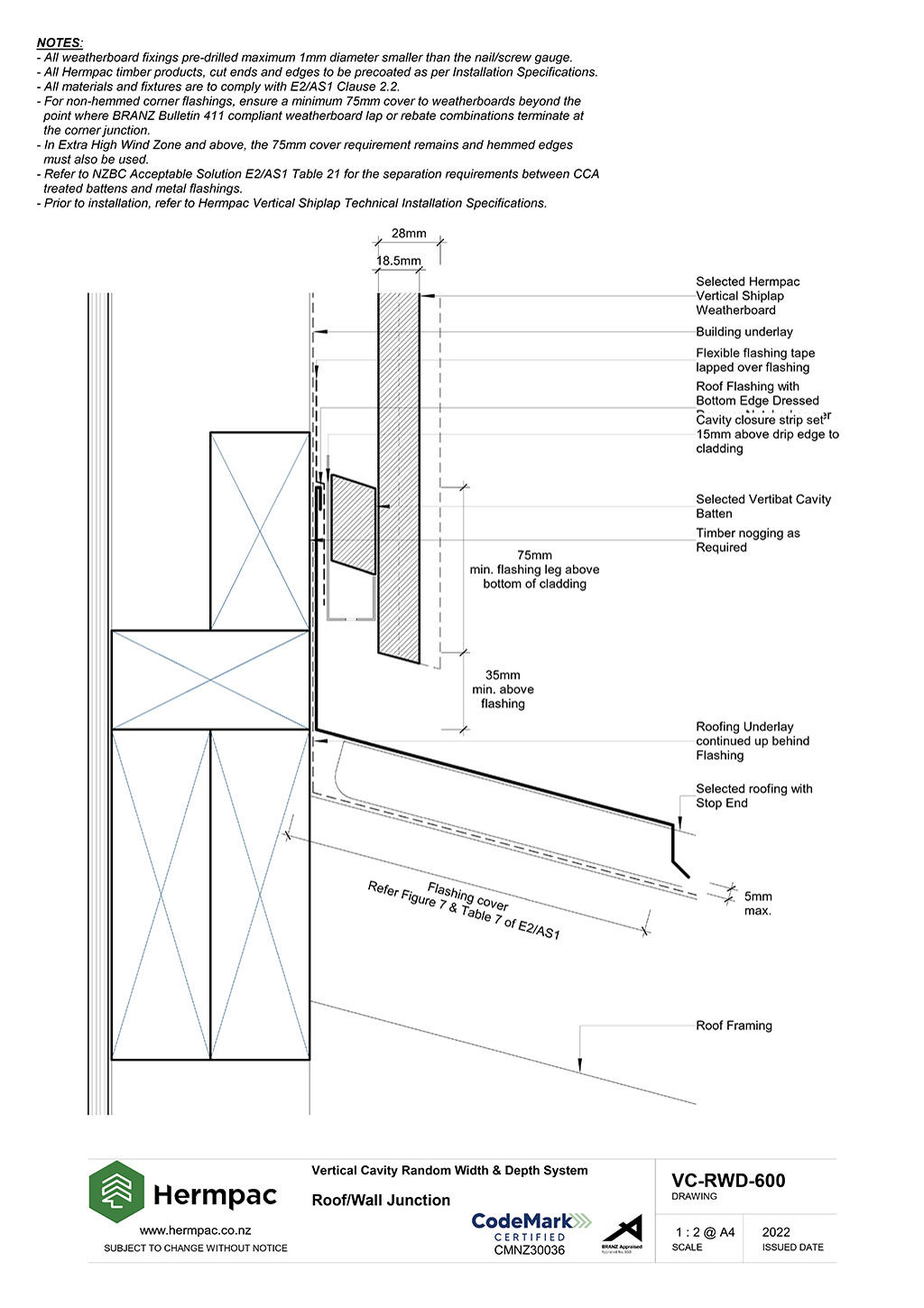

Roof-Wall Junction

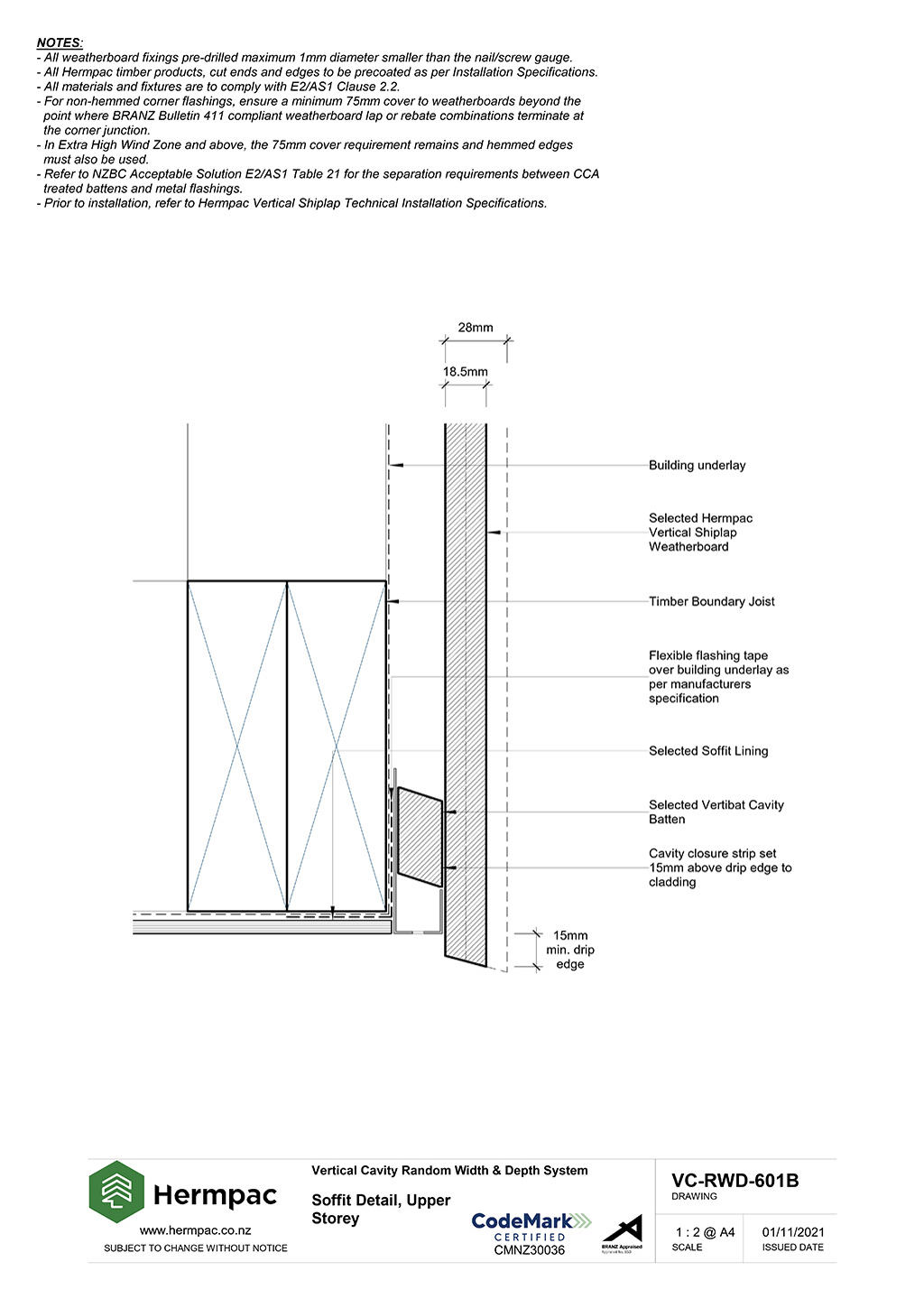

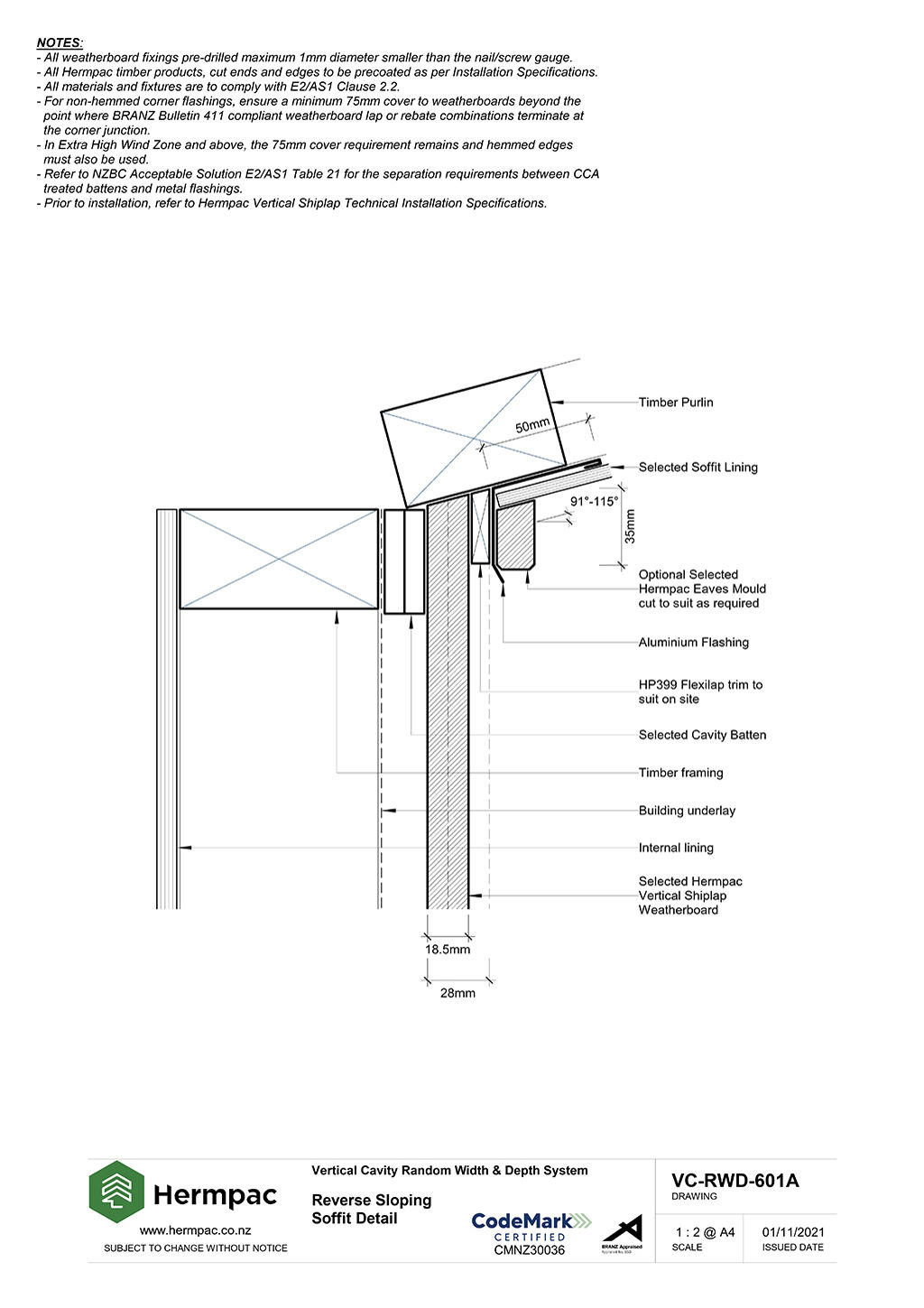

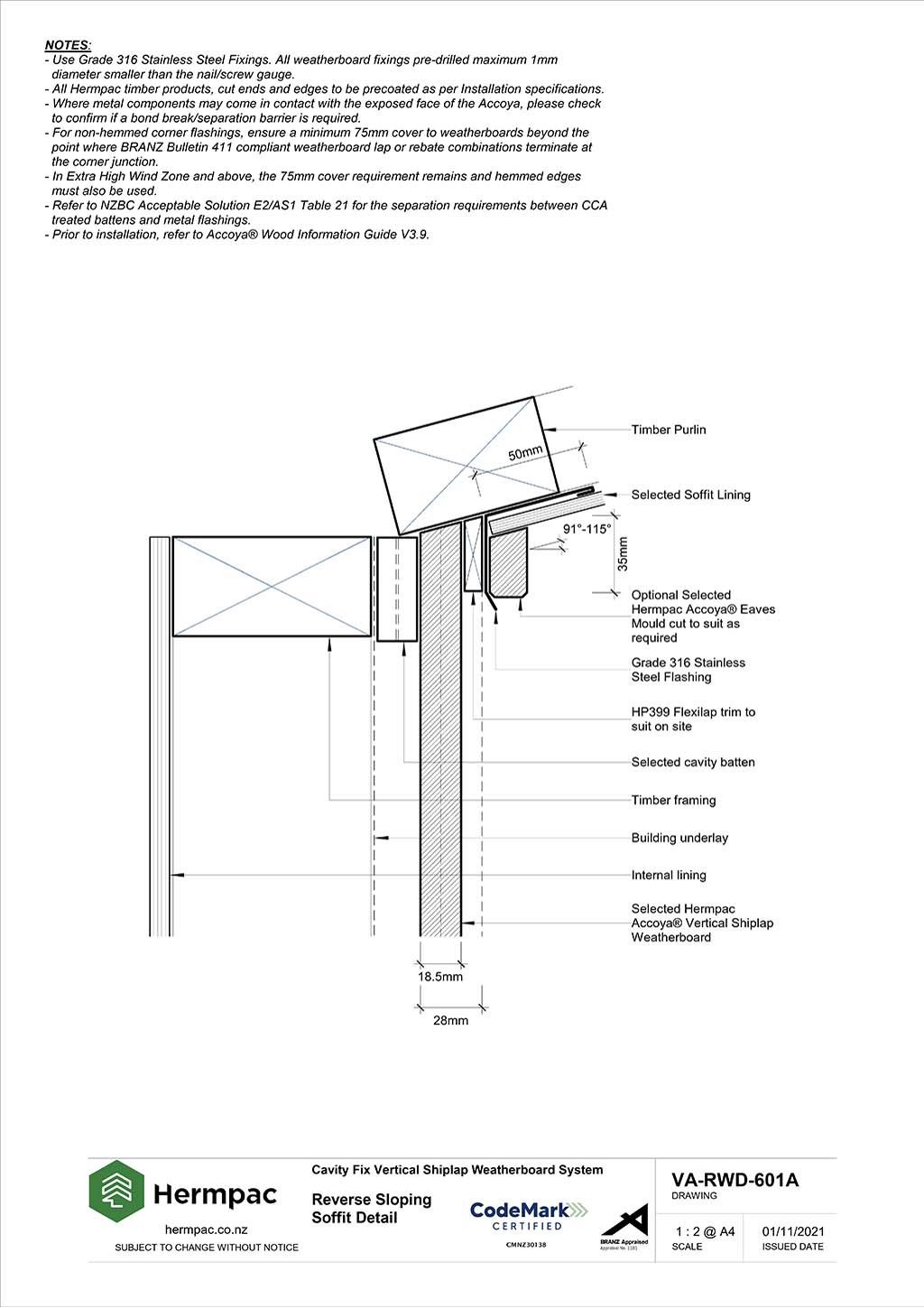

Reverse Sloping, Soffit Detail
Soffit Detail, Upper Storey
