BB11
Board
and Batten

Generic Construction

BB11 Series

1BB11 Series

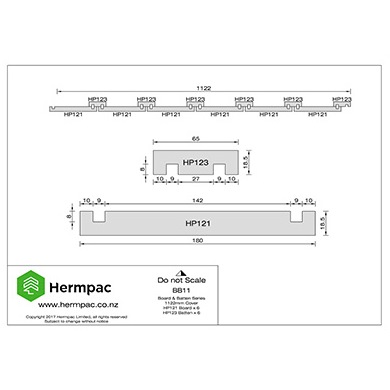

Profile Drawings


HP121

2HP121

180mm x 18.5mm

Board Profile


HP123

3HP123

65mm x 18.5mm

Batten Profile


MasterSpec - Vertical Shiplap

4MasterSpec - Vertical Shiplap

CLICK HERE for Masterspec Document


Installation Specification - Board & Batten Direct Fixed

5Installation Specification - Board & Batten Direct Fixed


HDF-BBAT-000

6HDF-BBAT-000

Drawing Index


HDF-BBAT-100

7HDF-BBAT-100

Board & Batten Weatherboard System Profiles


HDF-BBAT-200

8HDF-BBAT-200

Window Head Detail,

Aluminium Joinery


HDF-BBAT-201

9HDF-BBAT-201

Window Sill Detail,

Aluminium Joinery


HDF-BBAT-202

10HDF-BBAT-202

Window Jamb Detail,

Aluminium Joinery


HDF-BBAT-210

11HDF-BBAT-210

Door Head Detail,

Aluminium Joinery


HDF-BBAT-211

12HDF-BBAT-211

Door Sill Detail,

Aluminium Joinery


HDF-BBAT-212

13HDF-BBAT-212

Door Jamb Detail,

Aluminium Joinery


HDF-BBAT-220

14HDF-BBAT-220

Window Head Detail,

Timber Joinery


HDF-BBAT-221

15HDF-BBAT-221

Window Sill Detail,

Timber Joinery


HDF-BBAT-222

16HDF-BBAT-222

Window Jamb Detail,

Timber Joinery


HDF-BBAT-300

17HDF-BBAT-300

Internal Corner HP201 & HP202


HDF-BBAT-301

18HDF-BBAT-301

Enclosed Deck Balustrade to Wall Junction


HDF-BBAT-400

19HDF-BBAT-400

External Corner Boxed


HDF-BBAT-410

20HDF-BBAT-410

General Detail Direct Fix,

Stain Finish


HDF-BBAT-411

21HDF-BBAT-411

General Detail Direct Fix,

Paint Finish


HDF-BBAT-500

22HDF-BBAT-500

Base of Wall, Concrete


HDF-BBAT-501

23HDF-BBAT-501

Base of Wall, Timber


HDF-BBAT-502

24HDF-BBAT-502

Direct Fix at Enclosed Deck


HDF-BBAT-600

25HDF-BBAT-600

Roof/Wall Junction


HDF-BBAT-601

26HDF-BBAT-601

Soffit Detail, Overhang


HDF-BBAT-602

27HDF-BBAT-602

Eaves Detail, No Overhang


HDF-BBAT-800

28HDF-BBAT-800

Meter Box Detail


HDF-BBAT-801

29HDF-BBAT-801

Pipe Penetration Detail


HDF-BBAT-802

30HDF-BBAT-802

Pipe Penetration Plan Detail
