CP4158
Rusticated

Species Options

Generic Construction

CP4158

1CP4158

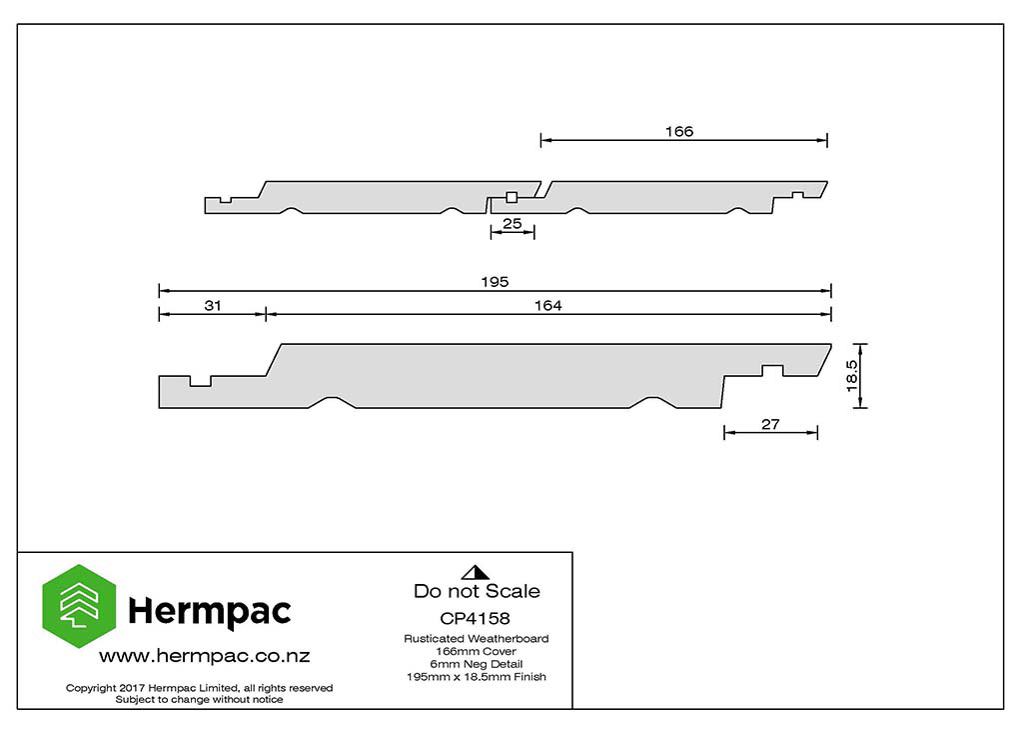

Profile Drawing


BRANZ Appraisal 1182

2BRANZ Appraisal 1182

BRANZ Appraisal 1182


CODEMARK CMNZ30139

3CODEMARK CMNZ30139

CODEMARK CMNZ30139


Installation Specification - ACCOYA Rusticated Cavity Fixed

4Installation Specification - ACCOYA Rusticated Cavity Fixed


MasterSpec - Horizontal

5MasterSpec - Horizontal

CLICK HERE for Masterspec Document


HA-RUST-000-001

6HA-RUST-000-001

Drawing Index


HA-RUST-002

7HA-RUST-002

Isometric View


HA-RUST-100

8HA-RUST-100

Rusticated Weatherboard System Profiles


HA-RUST-101

9HA-RUST-101

Scriber and Moulding Profiles


HA-RUST-102

10HA-RUST-102

Grooved Fascia Boards


HA-RUST-103

11HA-RUST-103

Accessories


HA-RUST-200

12HA-RUST-200

Window Head Detail, Aluminium Joinery


HA-RUST-201

13HA-RUST-201

Window Sill Detail, Aluminium Joinery


HA-RUST-202

14HA-RUST-202

Window Jamb Detail, Aluminium Joinery


HA-RUST-202A

15HA-RUST-202A

Window Jamb Detail, Aluminium Joinery


HA-RUST-202B

16HA-RUST-202B

Window Jamb Detail, Aluminium Joinery


HA-RUST-210

17HA-RUST-210

Door Head Detail, Aluminium Joinery


HA-RUST-211

18HA-RUST-211

Door Sill Detail, Aluminium Joinery


HA-RUST-212

19HA-RUST-212

Door Jamb Detail, Aluminium Joinery


HA-RUST-212A

20HA-RUST-212A

Door Jamb Detail, Aluminium Joinery


HA-RUST-212B

21HA-RUST-212B

Door Jamb Detail, Aluminium Joinery


HA-RUST-220

22HA-RUST-220

Garage Door Head Detail


HA-RUST-222A

23HA-RUST-222A

Garage Door Jamb Detail


HA-RUST-300

24HA-RUST-300

Internal Corner HP41


HA-RUST-303

25HA-RUST-303

Enclosed Deck Balustrade to Wall Junction


HA-RUST-307

26HA-RUST-307

Internal Corner HP370


HA-RUST-400

27HA-RUST-400

External Corner Boxed


HA-RUST-402

28HA-RUST-402

External Corner HP42


HA-RUST-410

29HA-RUST-410

General Detail Cavity Fix, Stain Finish


HA-RUST-409

30HA-RUST-409

External Corner Two Piece HP322A & HP322B


HA-RUST-410A

31HA-RUST-410A

Structural Cavity Fix, Stain Finish


HA-RUST-410S

32HA-RUST-410S

General Cavity Fix, Screw Fixing


HA-RUST-410SS

33HA-RUST-410SS

Structural Detail Cavity Fix, Screw Fixing


HA-RUST-411

34HA-RUST-411

General Detail Cavity Fix, Paint Finish


HA-RUST-411A

35HA-RUST-411A

Structural Cavity Fix, Paint Finish


HA-RUST-412

36HA-RUST-412

Drained Inter-Storey Joint


HA-RUST-413

37HA-RUST-413

Scarf Joint


HA-RUST-500

38HA-RUST-500

Base of Wall, Concrete


HA-RUST-501

39HA-RUST-501

Base of Wall, Timber


HA-RUST-502

40HA-RUST-502

Cavity at Enclosed Deck


HA-RUST-600

41HA-RUST-600

Roof-Wall Junction


HA-RUST-601

42HA-RUST-601

Soffit Detail, Overhang


HA-RUST-601A

43HA-RUST-601A

Reverse Sloping Soffit Detail


HA-RUST-601B

44HA-RUST-601B

Soffit Detail, Upper Storey


HA-RUST-602

45HA-RUST-602

Eaves Detail, No Overhang


HA-RUST-700

46HA-RUST-700

Parapet Detail


HA-RUST-800

47HA-RUST-800

Meter Box Detail


HA-RUST-801

48HA-RUST-801

Pipe Penetration Detail


HA-RUST-802

49HA-RUST-802

Pipe Penetration Plan Detail
