CP2496
Rebated
Bevel Back

Generic Construction

CP2496

1CP2496

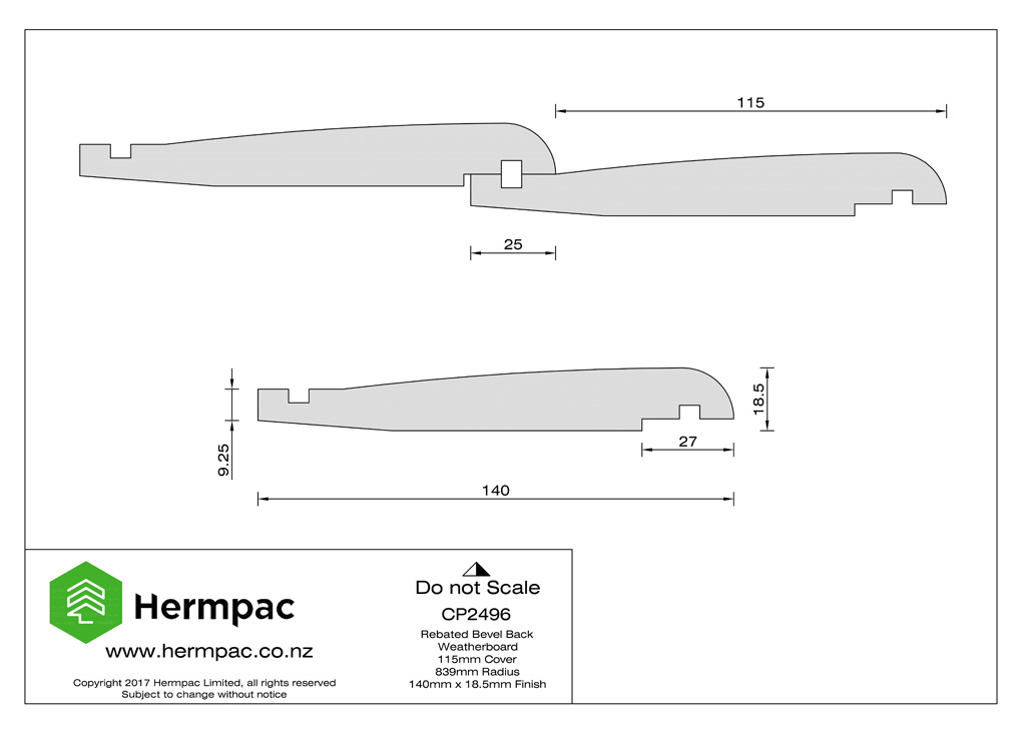

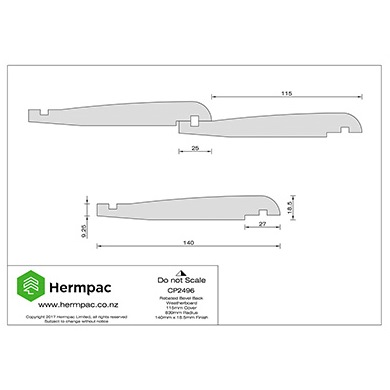

Profile Drawing


MasterSpec - Horizontal

2MasterSpec - Horizontal

CLICK HERE for Masterspec Website


Installation Specification - Rebated Bevel Back Direct Fixed

3Installation Specification - Rebated Bevel Back Direct Fixed


HDF-BEVELBACK-000

4HDF-BEVELBACK-000

Drawing Index


HDF-BEVELBACK-100

5HDF-BEVELBACK-100

Bevel Back Weatherboard System Profiles


HDF-BEVELBACK-101

6HDF-BEVELBACK-101

Trim and Moulding Profiles


HDF-BEVELBACK-200

7HDF-BEVELBACK-200

Window Head Detail,

Aluminium Joinery


HDF-BEVELBACK-201

8HDF-BEVELBACK-201

Window Sill Detail,

Aluminium Joinery


HDF-BEVELBACK-202

9HDF-BEVELBACK-202

Window Jamb Detail,

Aluminium Joinery


HDF-BEVELBACK-210

10HDF-BEVELBACK-210

Door Head Detail,

Aluminium Joinery


HDF-BEVELBACK-211

11HDF-BEVELBACK-211

Door Sill Detail,

Aluminium Joinery


HDF-BEVELBACK-212

12HDF-BEVELBACK-212

Door Jamb Detail,

Aluminium Joinery


HDF-BEVELBACK-220

13HDF-BEVELBACK-220

Window Head Detail,

Timber Joinery


HDF-BEVELBACK-221

14HDF-BEVELBACK-221

Window Sill Detail,

Timber Joinery


HDF-BEVELBACK-222

15HDF-BEVELBACK-222

Window Jamb Detail,

Timber Joinery


HDF-BEVELBACK-300

16HDF-BEVELBACK-300

Internal Corner HP110


HDF-BEVELBACK-301

17HDF-BEVELBACK-301

Internal Corner Scribed


HDF-BEVELBACK-302

18HDF-BEVELBACK-302

Internal Corner Boxed


HDF-BEVELBACK-303

19HDF-BEVELBACK-303

Enclosed Deck Balustrade to Wall Junction


HDF-BEVELBACK-400

20HDF-BEVELBACK-400

External Corner Boxed


HDF-BEVELBACK-401

21HDF-BEVELBACK-401

External Corner Soaker


HDF-BEVELBACK-410

22HDF-BEVELBACK-410

General Detail Direct Fix,

Stain Finish


HDF-BEVELBACK-411

23HDF-BEVELBACK-411

General Detail Direct Fix,

Paint Finish


HDF-BEVELBACK-500

24HDF-BEVELBACK-500

Base of Wall, Concrete


HDF-BEVELBACK-501

25HDF-BEVELBACK-501

Base of Wall, Timber


HDF-BEVELBACK-502

26HDF-BEVELBACK-502

Direct Fix at Enclosed Deck


HDF-BEVELBACK-600

27HDF-BEVELBACK-600

Roof/Wall Junction


HDF-BEVELBACK-601

28HDF-BEVELBACK-601

Soffit Detail, Overhang


HDF-BEVELBACK-602

29HDF-BEVELBACK-602

Eaves Detail, No Overhang


HDF-BEVELBACK-800

30HDF-BEVELBACK-800

Meter Box Detail


HDF-BEVELBACK-801

31HDF-BEVELBACK-801

Pipe Penetration Detail


HDF-BEVELBACK-802

32HDF-BEVELBACK-802

Pipe Penetration Plan Detail
