Generic Construction

BB7 Series

1BB7 Series


HP121

2HP121

180mm x 18.5mm

Board Profile


CP821

3CP821

65mm x 39mm

Batten Profile


HP123

4HP123

65mm x 18.5mm

Batten Profile


BRANZ Appraisal 828

5BRANZ Appraisal 828

BRANZ Appraisal 828


HC-BBAT-000

6HC-BBAT-000

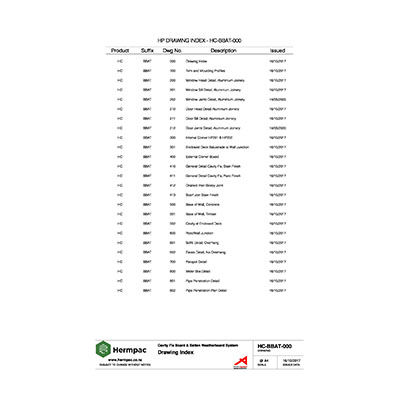

Drawing Index


HC-BBAT-100

7HC-BBAT-100

Trim and Moulding Profiles


HC-BBAT-200

8HC-BBAT-200

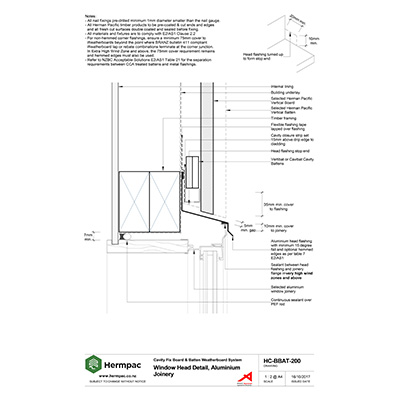

Window Head Detail,

Aluminium Joinery


HC-BBAT-201

9HC-BBAT-201

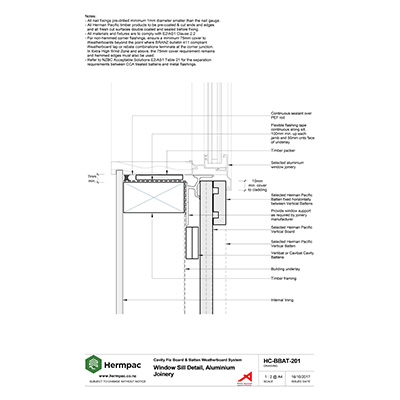

Window Sill Detail,

Aluminium Joinery


HC-BBAT-202

10HC-BBAT-202

Window Jamb Detail,

Aluminium Joinery


HC-BBAT-210

11HC-BBAT-210

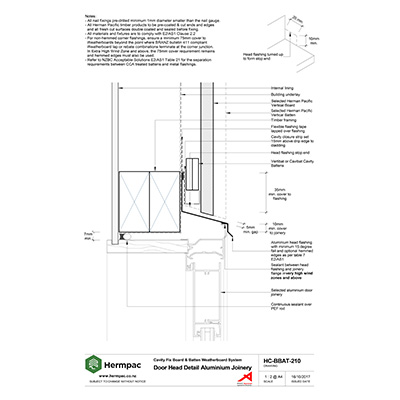

Door Head Detail,

Aluminium Joinery


HC-BBAT-211

12HC-BBAT-211

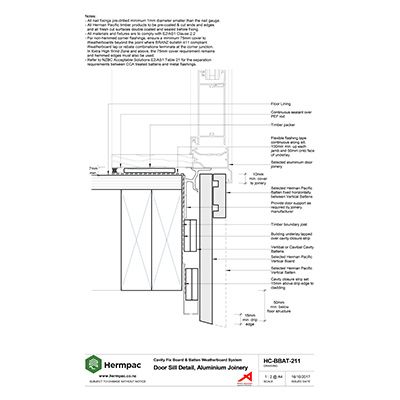

Door Sill Detail,

Aluminium Joinery


HC-BBAT-212

13HC-BBAT-212

Door Jamb Detail,

Aluminium Joinery


HC-BBAT-300

14HC-BBAT-300

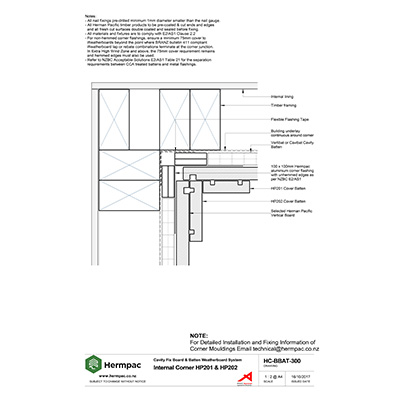

Internal Corner HP41


HC-BBAT-301

15HC-BBAT-301

Enclosed Deck Balustrade to Wall Junction


HC-BBAT-400

16HC-BBAT-400

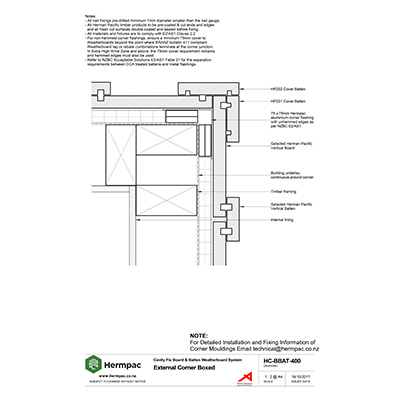

External Corner Boxed


HC-BBAT-410

17HC-BBAT-410

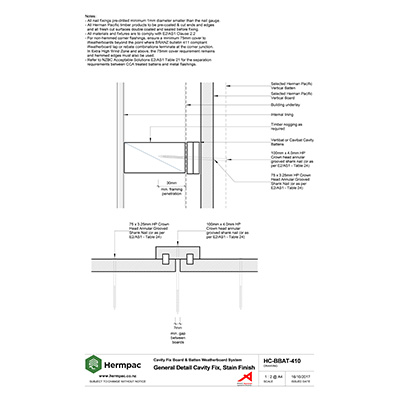

General Detail Cavity Fix, Stain Finish


HC-BBAT-411

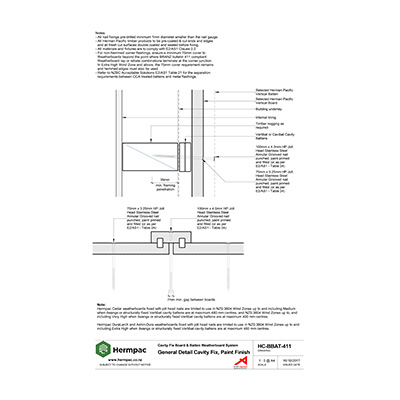

18HC-BBAT-411

General Detail Cavity Fix, Paint Finish

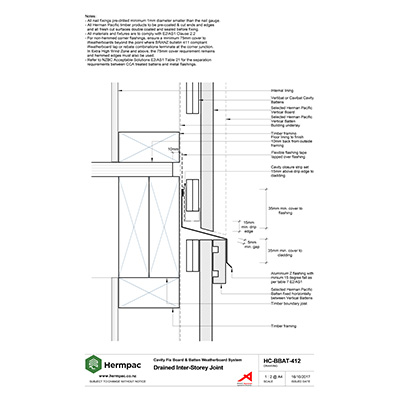

HC-BBAT-412

19HC-BBAT-412

Drained Inter-Storey Joint

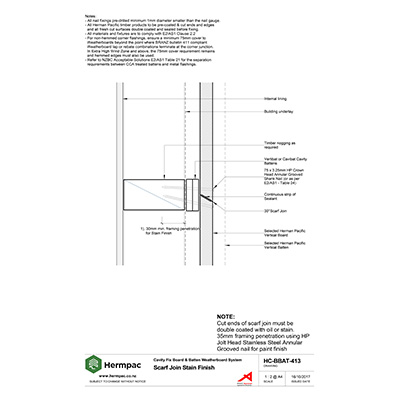

HC-BBAT-413

20HC-BBAT-413

Scarf Join Stain Finish


HC-BBAT-500

21HC-BBAT-500

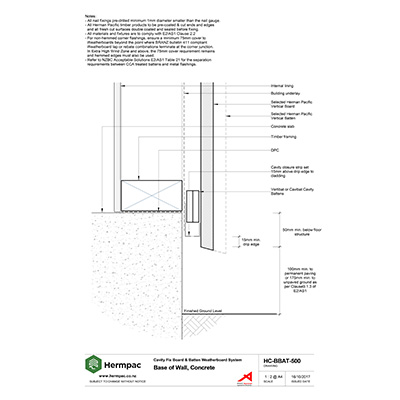

Base of Wall, Concrete


HC-BBAT-501

22HC-BBAT-501

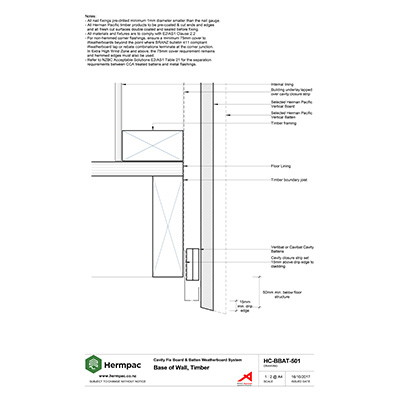

Base of Wall, Timber


HC-BBAT-502

23HC-BBAT-502

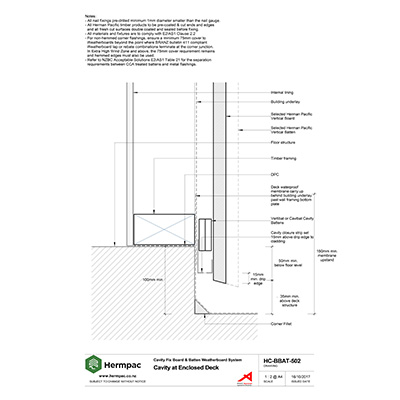

Cavity at Enclosed Deck

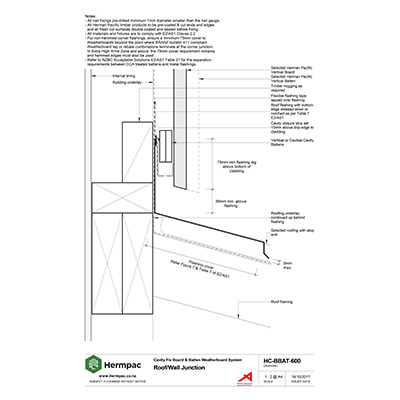

HC-BBAT-600

24HC-BBAT-600

Roof/Wall Junction


HC-BBAT-601

25HC-BBAT-601

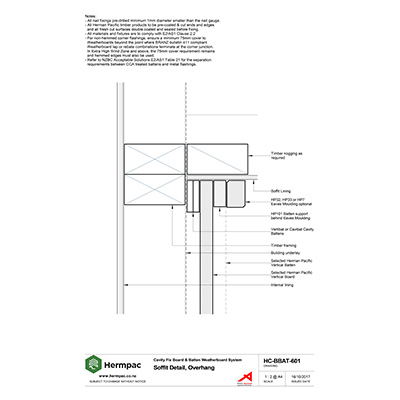

Soffit Detail, Overhang


HC-BBAT-602

26HC-BBAT-602

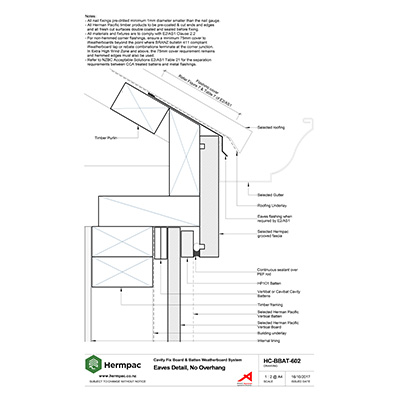

Eaves Detail, No Overhang


HC-BBAT-700

27HC-BBAT-700

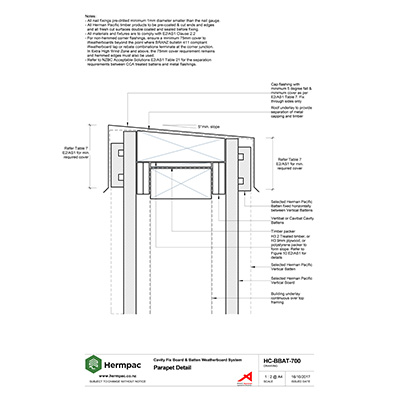

Parapet Detail


HC-BBAT-800

28HC-BBAT-800

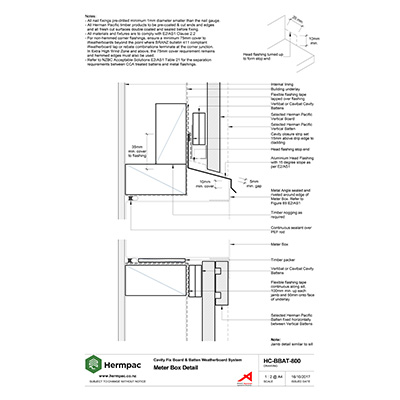

Meter Box Detail


HC-BBAT-801

29HC-BBAT-801

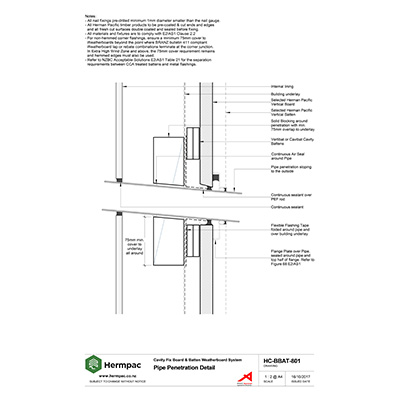

Pipe Penetration Detail


HC-BBAT-802

30HC-BBAT-802

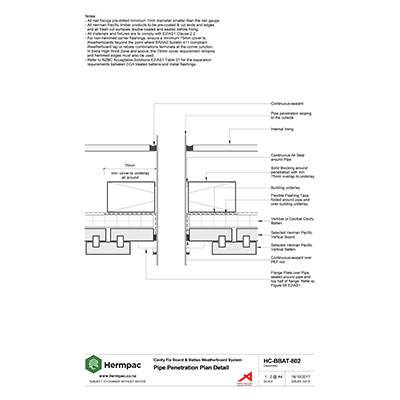

Pipe Penetration Plan Detail


Installation Specification - Vertical Shiplap Cavity Fixed

31Installation Specification - Vertical Shiplap Cavity Fixed


MasterSpec - Vertical Shiplap

32MasterSpec - Vertical Shiplap

CLICK HERE for Masterspec Website
